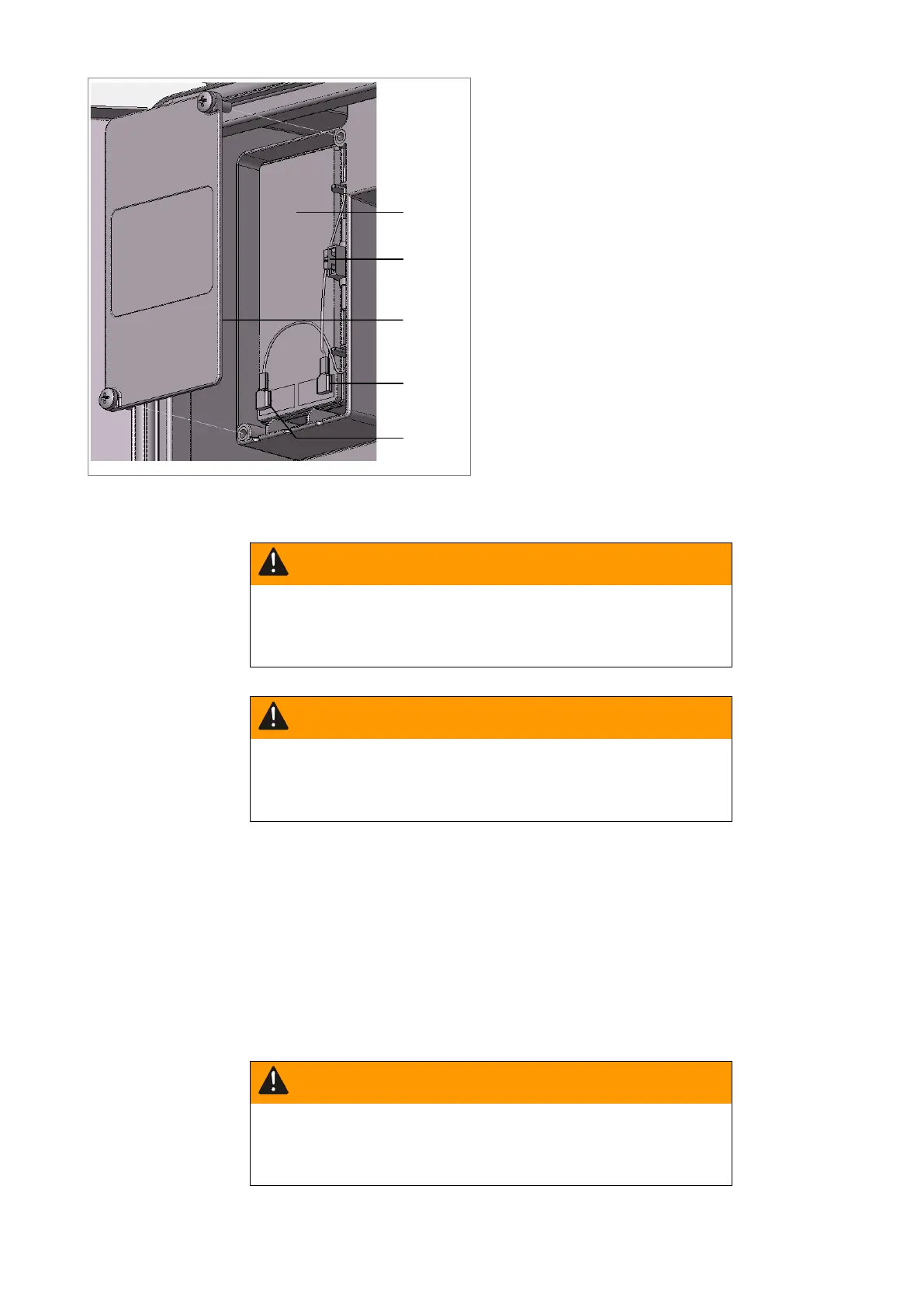

1 Battery
2 Battery Compartment Cover
3 Negative Terminal (Black)
4 Positive terminal (Red)
5 Battery fuse
Fig. 17 Battery Connection Details
Incorrect Battery Polarity Connected.
If the battery is connected in the reverse polarity the fuse will
blow.
Don’t Pinch Battery Wire.
When fitting the battery care must be taken not to pinch the
battery wire.
The battery should be removed prior to removing the RCU from a pole and for any transport. Refer
section 9.4.
5.5 Solar Panel Mounting
The solar panel assembly is intended to be pole mounted onto timber, steel, concrete and stobie
poles. The standard solar panel mounting bracket can accommodate all these options through the
use of either bolting or strapping of the bracket to the pole. A combination of one bolt and a strap is
also acceptable so long as the upper restraint is bolted.
Bird Roost Guard can fall down.
Suitable safety protection equipment should be worn including
a hard hat during installation of Solar Panel Assembly.
