2. Disconnect the radio cable from the electronics enclosure.
3. Remove the power compartment cover using the Phillips head screwdriver.
4. Disconnect the earth wire and the mains or solar cable wires in the terminal block in the
power supply compartment.
5. Replace the power compartment cover and screw in place using the Phillips head
screwdriver.
6. Unscrew the M5 caphead screws holding the electronics compartment into the RCU
enclosure (see figure below) using the 4mm Allen key being careful to support the
compartment whilst doing so. Retain the screws and washers.
7. Remove the electronics compartment from the RCU enclosure.
1 Upper retaining screws
2 Middle retaining screws
3 Lower retaining screws

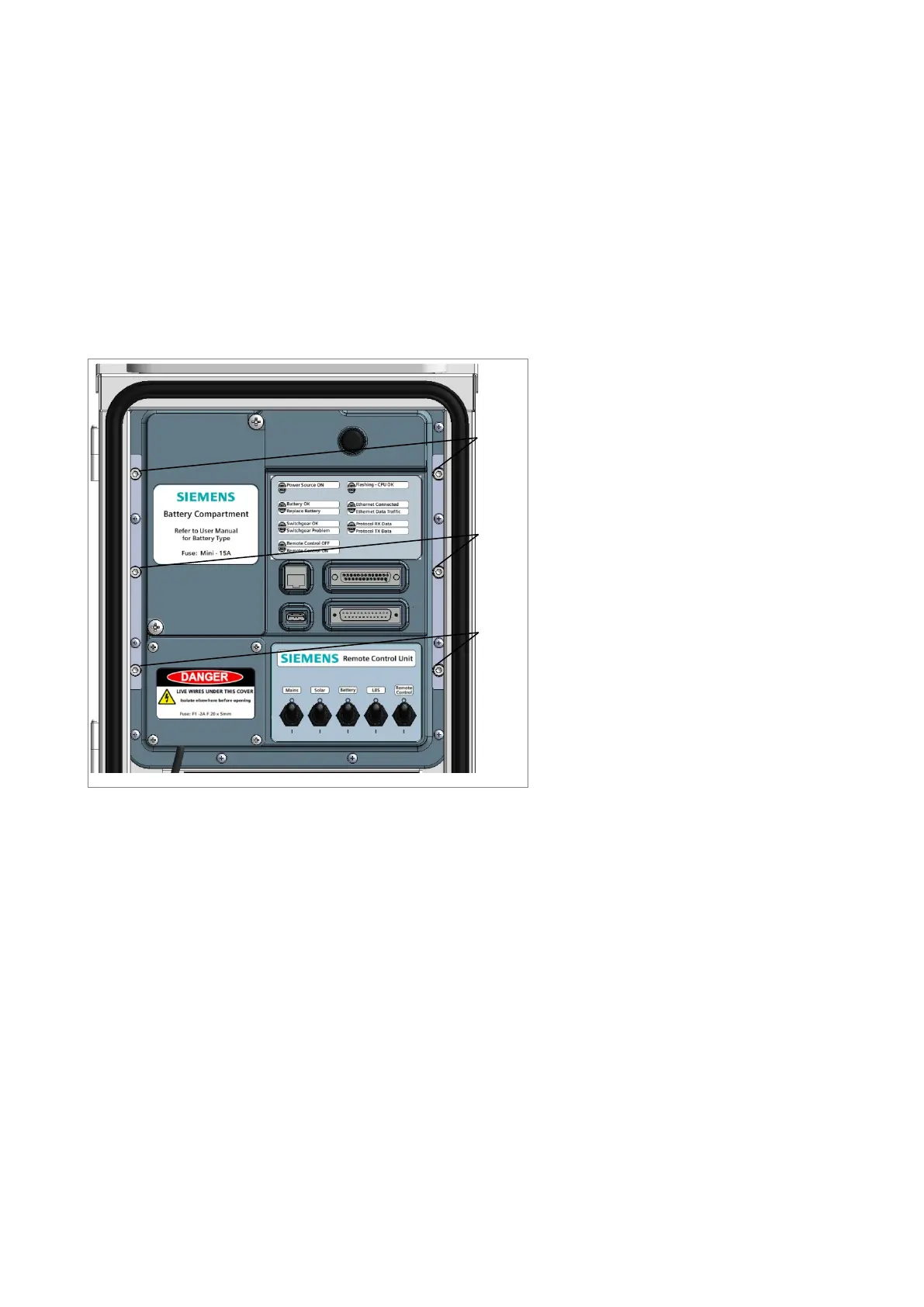

Fig. 50 Screws holding electronics compartment in RCU
Enclosure
7 Insert a replacement electronics compartment into the RCU enclosure.
8 Align the holes and screw the M5 x 20 capscrews with spring washers into the captive
nuts in the RCU enclosure using the 4mm Allen key. Torque to 1.5Nm.
9 Remove the power compartment cover using the Phillips head screw driver.
10 Fit the earth wire connected to the internal RCU enclosure earth stud into the terminal
block as shown. Tighten in place.
11 Complete remainder of installation as per section 5 of this user manual
