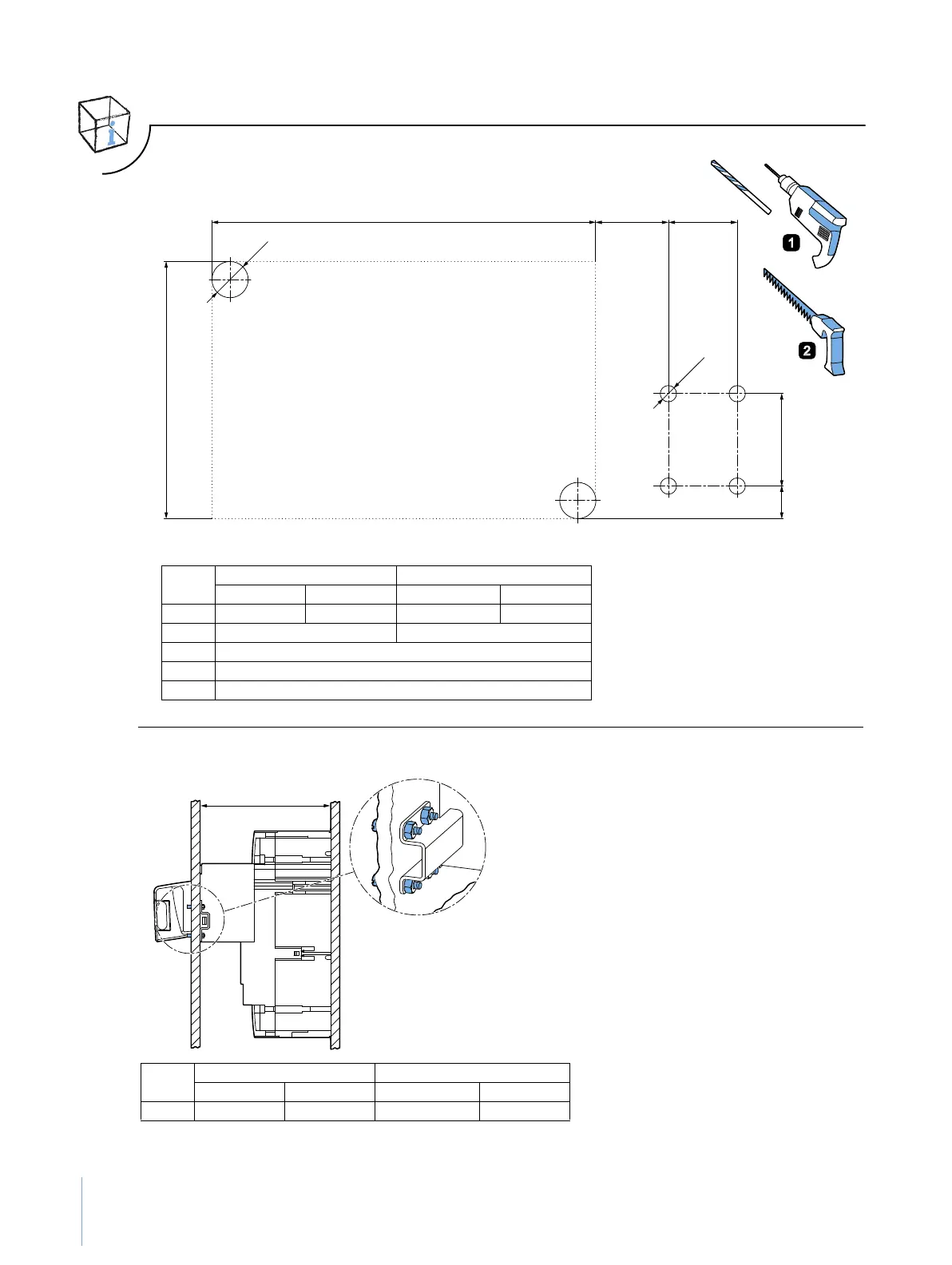

Siemens 3VA9 Series - Mounting and Enclosure Integration; Mounting Dimensions; Enclosure Depth Requirements

4
A5E03472775106-04
3ZW1012-0VA01-2DA0
,QIRUPDWLRQ,QIRUPDWLRQ,QIRUPDWLRQV,QIRUPDFLyQ⫖㭤


%
('
$&


3VA1 3VA2
100 / 160 250 100 / 160 / 250 400 / 630
A 77 mm 105 mm 105 mm 138 mm
B 46.0 mm 71 mm
C 20 mm
D 5mm
E 27 mm
)
3VA1 3VA2
100 / 160 250 100 / 160 / 250 400 / 630
F 111 mm 109 mm 128 mm 151 mm
