1.1 Digital electronic module 4DI DC24V ST (6ES7131-4BD01-0AA0)
Digital electronic module 4DI DC24V ST (6ES7131-4BD01-0AA0)
Manual, 04/2007, A5E01077099-01
9
Block diagram








3
,0
/
3
0RQO\IRUWHUPLQDOPRGXOHVZLWKWHUPLQDODQG
,QSXW
HOHFWURQLFV
,QSXW
HOHFWURQLFV
,QSXW
HOHFWURQLFV
,QSXW
HOHFWURQLFV
(76
EDFNSODQH
EXV
FRQQHFWLRQ
%DFNSODQHEXV

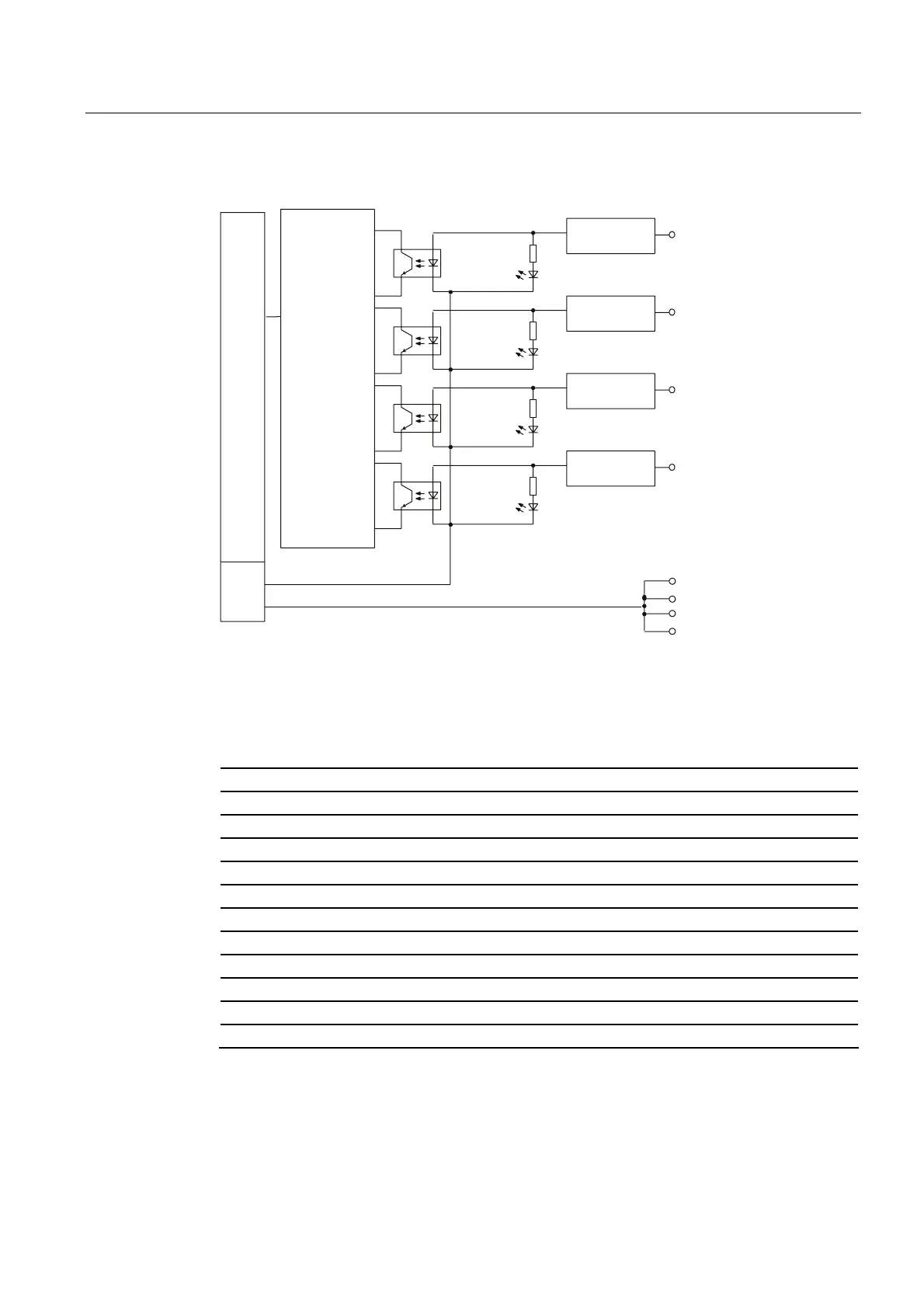

Figure 1-1 Block diagram of the 4DI DC24V ST
Technical data 4DI DC24V ST (6ES7131-4BD01-0AA0)
Dimensions and weight
Width (mm) 15
Weight Approx. 35 g
Module-specific data
Supports isochronous operation No
Number of inputs 4
Length of cable
• Unshielded
Max. 600 m
• Shielded
Max. 1,000 m
Parameter length 1 byte
Address space 1 byte
Address space (packed) 4 bits
