30 / 92
Siemens Actuators SAX.., SAY.., SAV.., SAL.. for valves CE1P4040en
Building Technologies Handling 2018-12-05

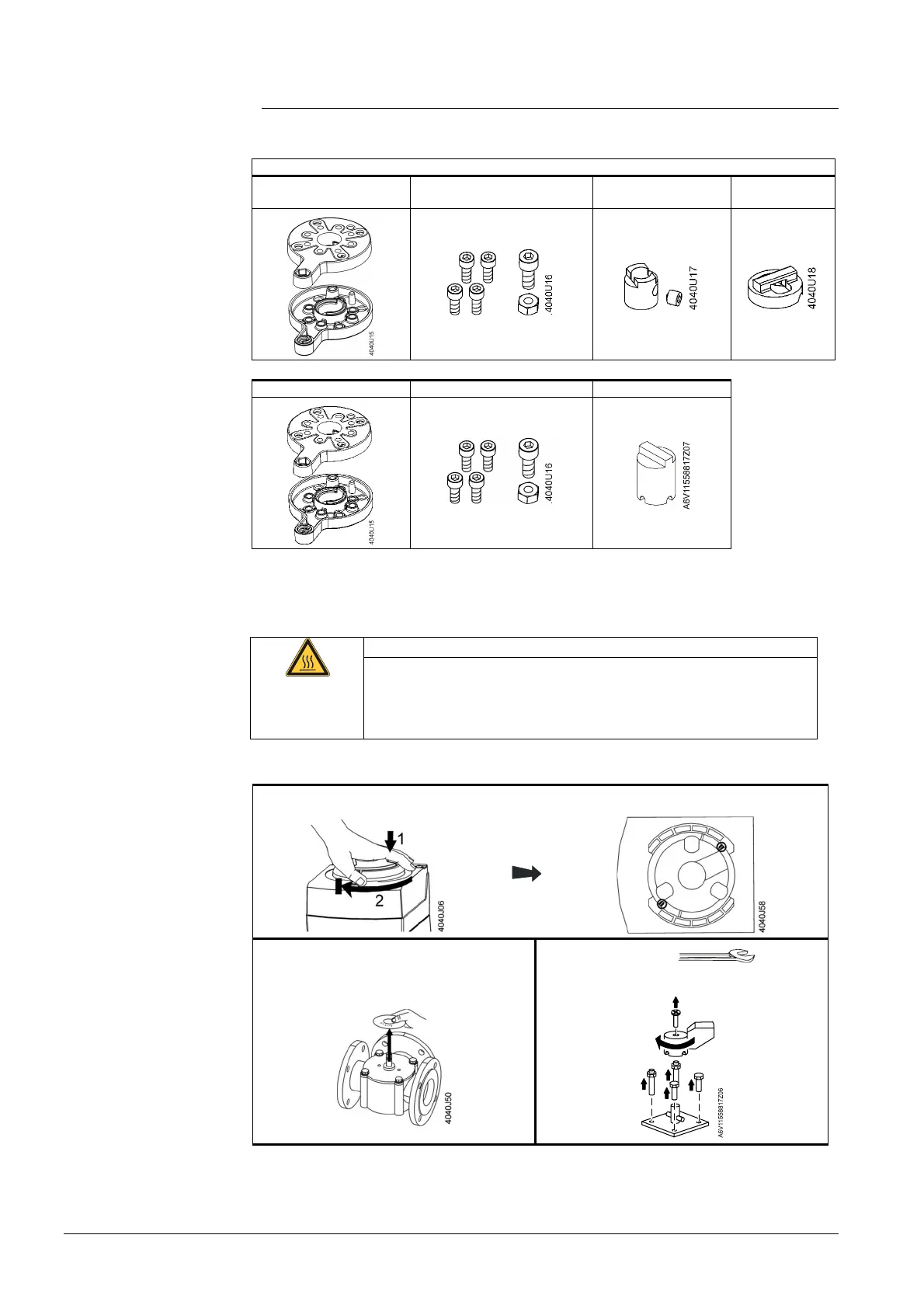

3.1.5 Fitting rotary actuators to slipper valves VBF21..
First, observe "Mounting positions" (page 25).
Scope of delivery
Mounting set (2 parts) 5 screws
1 adapter inc. fixing
screw
1 adapter
4 pcs. M6 x 16 mm
1 pc. M5 x 20 mm incl. nut
Mounting set (2 parts) 5 screws 1 adapter
4 pcs. M6 x 16 mm
1 pc. M5 x 20 mm incl. nut
With VBF21.. (e.g. DN 125), the following steps must be performed prior to fitting
the mounting set.
Risk of burns from hot surfaces!
If you touch heated parts, you will get burns as result.
· Allow to cool parts.
· Wear protective gloves.
2a
ASK31N
2b
ASK32N
10 mm,
13 mm
90°
2
3
Mounting set ASK31N
for VBF21.., DN 65…150
Mounting set ASK32N
for VBF21.., DN 40…50
