Siemens ACVATIX SKB Series User Manual

5
Siemens
CM1N4564en
Smart Infrastructure
2023-10-17

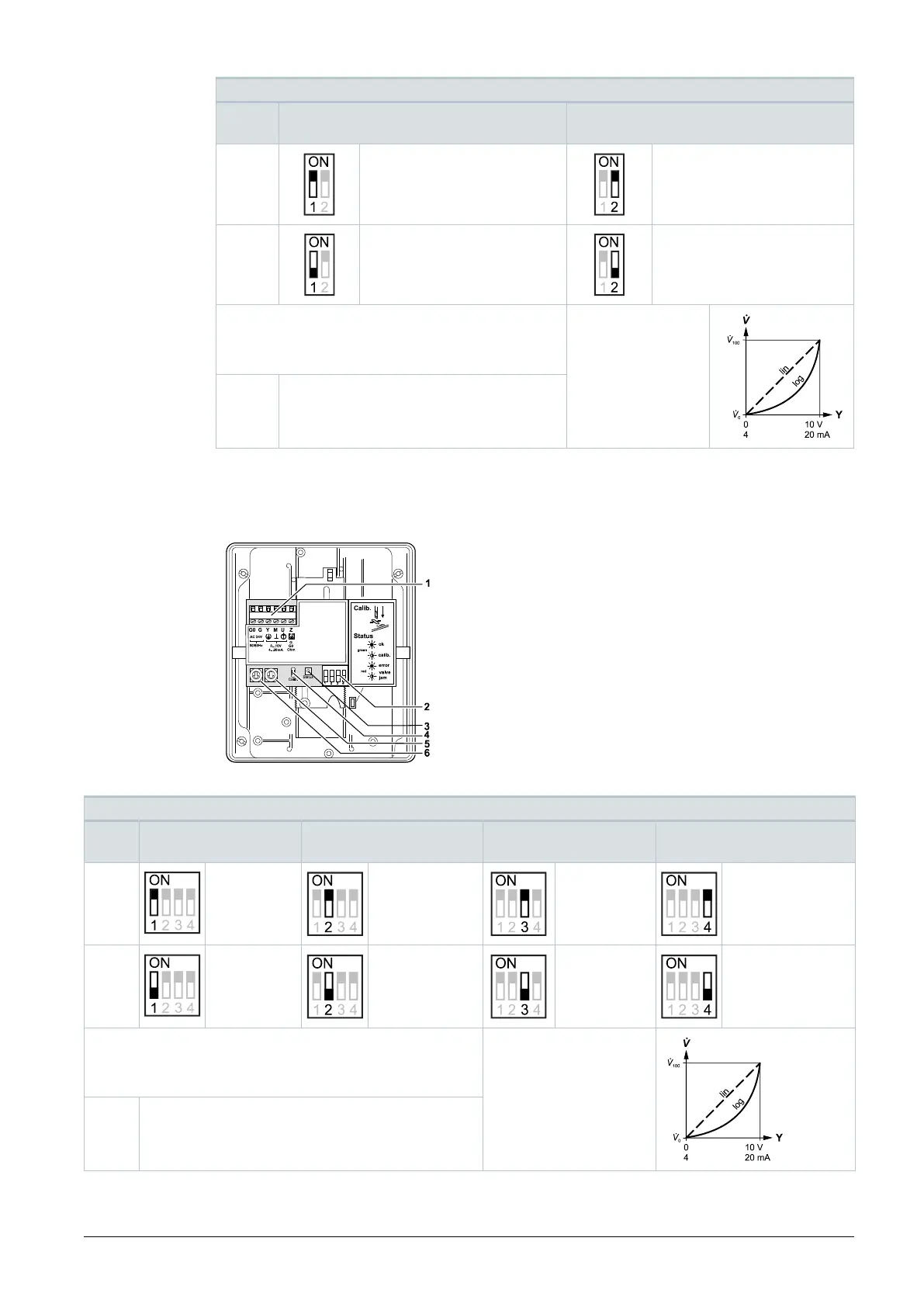

DIL switches
Positioning signal Y
Positioning feedback U
Flow characteristic
ON
DC 4...20 mA
lin = linear
OFF *
DC 0...10 V
log = equal percentage
Relationship between
positioning signal Y and
volumetric flow
*
Factory setting: all switches OFF
SKB62UA
1
Connection terminals
2
DIL switches
3
LED status indication
4
Stroke calibration
5
Rotary switch UP
(factory setting 0)
6
Rotary switch LO
DIL switches
Direction of operation
Sequence control or stroke
limit control
Positioning signal Y
Positioning feedback U
Flow characteristic
ON
Reverse acting
Sequence control
Signal addition
QAF21../QAF61..
DC 4...20 mA
lin = linear
OFF *
Direct acting
Stroke limit control
DC 0...10 V
log = equal
percentage
Relationship between
positioning signal Y and
volumetric flow
*
Factory setting: all switches OFF
