4.6.2 RF9 – bad and good positioning
It is important to place the RF9 in a correct way. Normally it is desired that the RF9
reaches longest in the horizontal direction because the doors are in this direction.

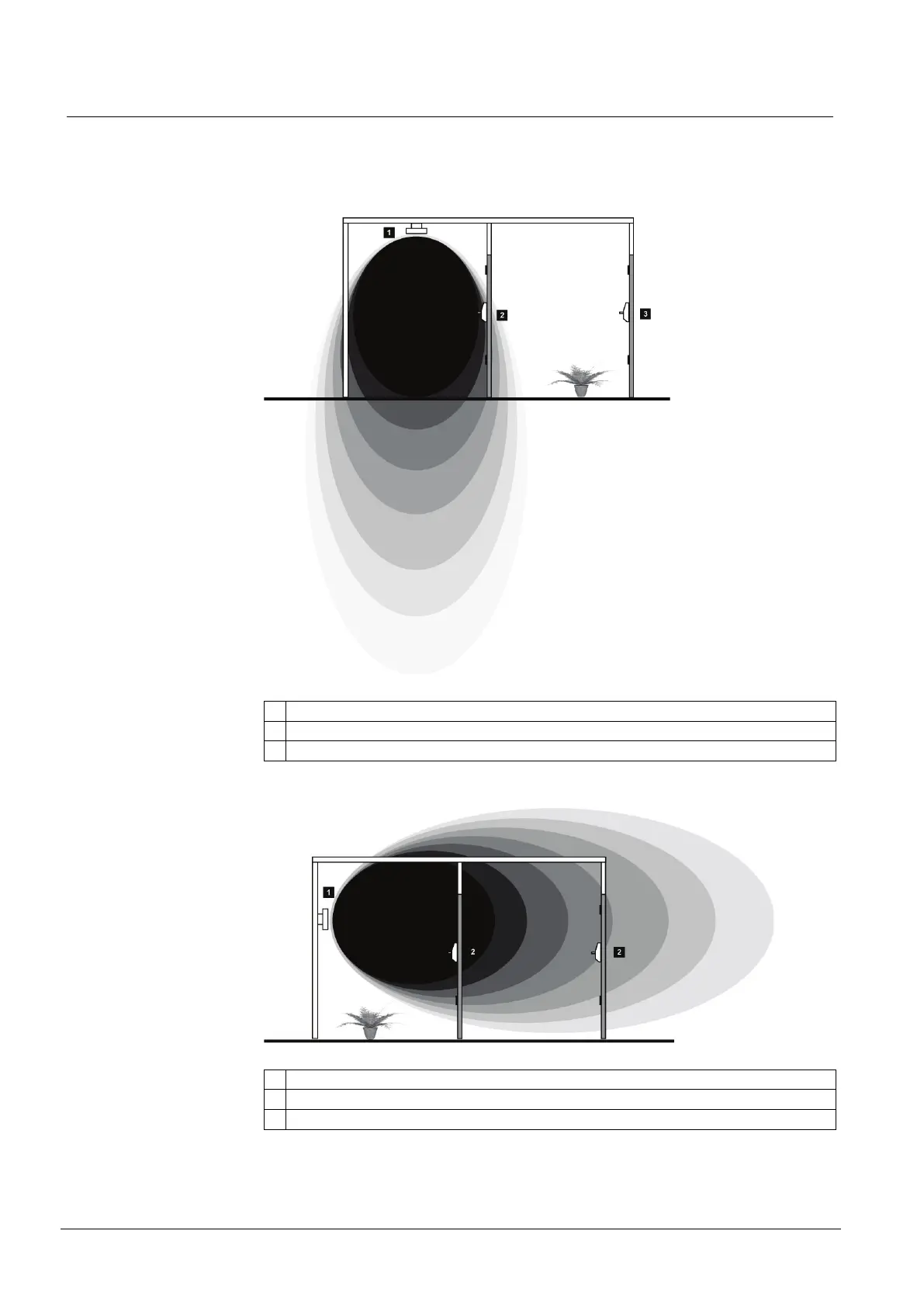

Bad position (roof)
1.
RF9 – ceiling mounting
2.
Door unit reached by the signal
3.
Door unit NOT reached by the signal
Good position (wall)
1.
RF9 – wall mounting
2.
Door unit reached by the signal
3.
Door unit reached by the signal
