6 Example 2 – an office
The example below shows how a floor in an office might look like with 39 RF30-EM
units installed.
Segment
Controller
Function
SR35i #1 Manages 16 wireless doors to the left in the drawing
 Routers A + B link to 10 doors
 Router C links to 6 doors
SR35i #2 Manages 8 wireless doors in the middle of the drawing
 Routers G + H link to 8 doors
SR35i #3 Manages 15 wireless doors to the right in the drawing
 SR35i controls 5 doors directly
 Router D amplifies the signal
 Routers E + F link to 10 doors
Tab. 1 Example of distributing wireless units

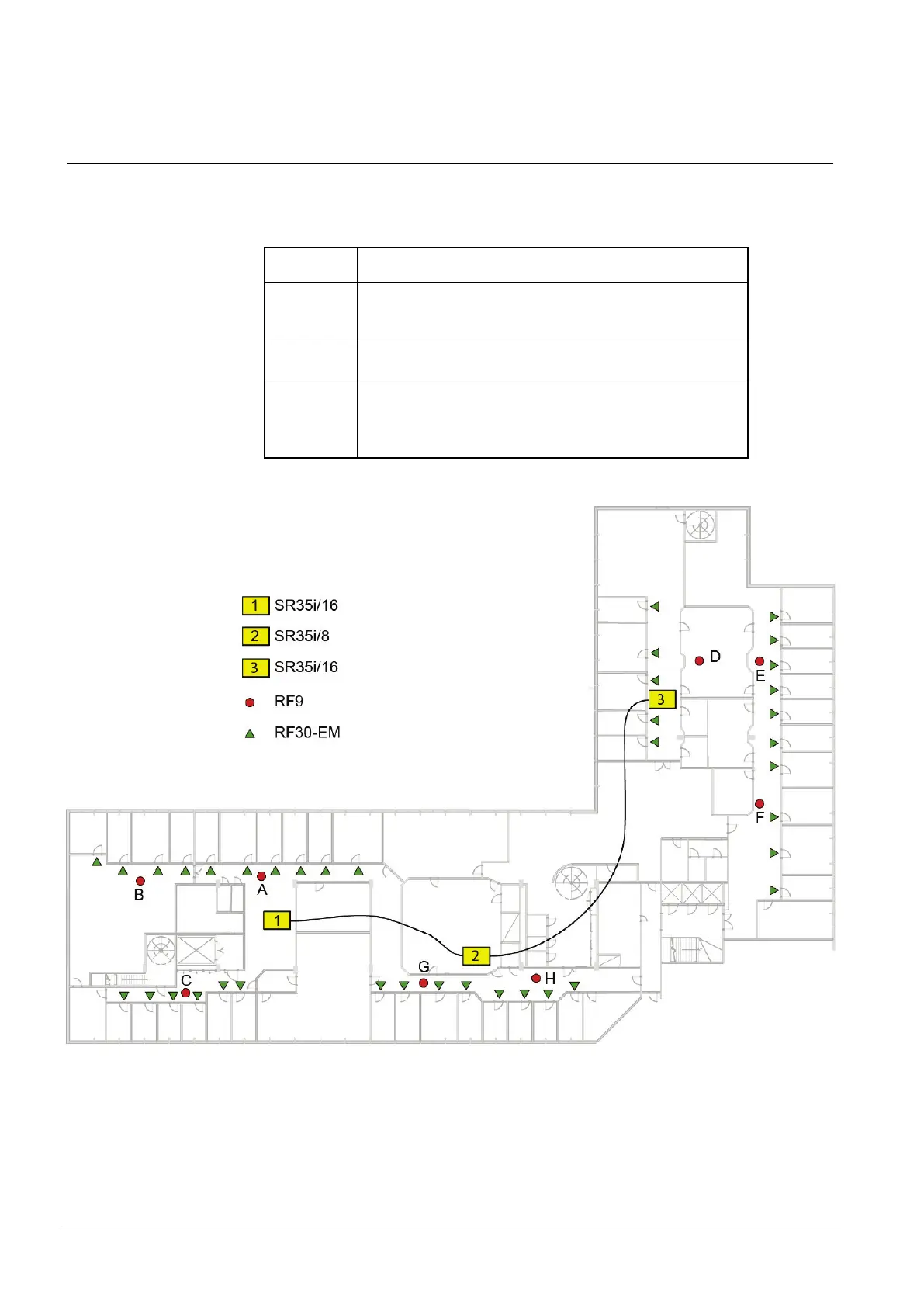

Fig. 12 Example 2 – a floor in an office.
