4.7 Material characteristics

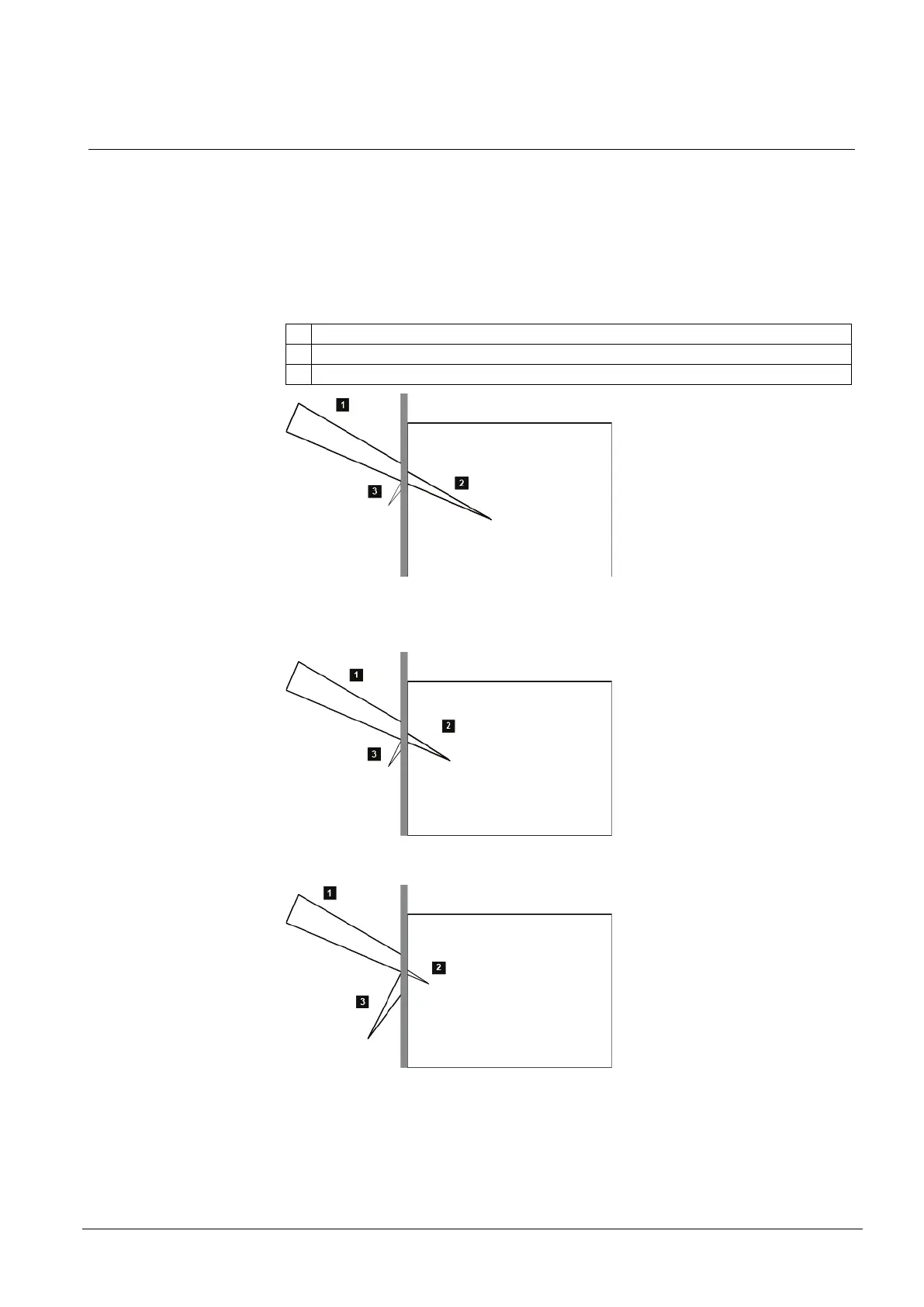

The following illustrations show how different materials attenuate and reflect a sig-
nal.
 Water (including rain drops and human beings) absorbs the radio energy and
thus degrades the signal.
 Remember that an open door may result in less absorption and/or reflection.
Keep doors shut while testing.
1.
Incoming signal energy (free air).
2.
Signal energy going through (not attenuated). Depend on density of the material.
3.,
Reflected signal energy.
Fig. 7 Brick wall/Clear glass window
Fig. 8 Drywall/Plaster
Fig. 9 Metal wall/Metal screened glass
