Chapter 6 - Commissioning
Installation in an IT System
72 | 82
Siemens Industry, Inc.
Siemens BT300 HVAC Drive Installation
Instructions
DPD01148
Building Technologies
2016-06-28

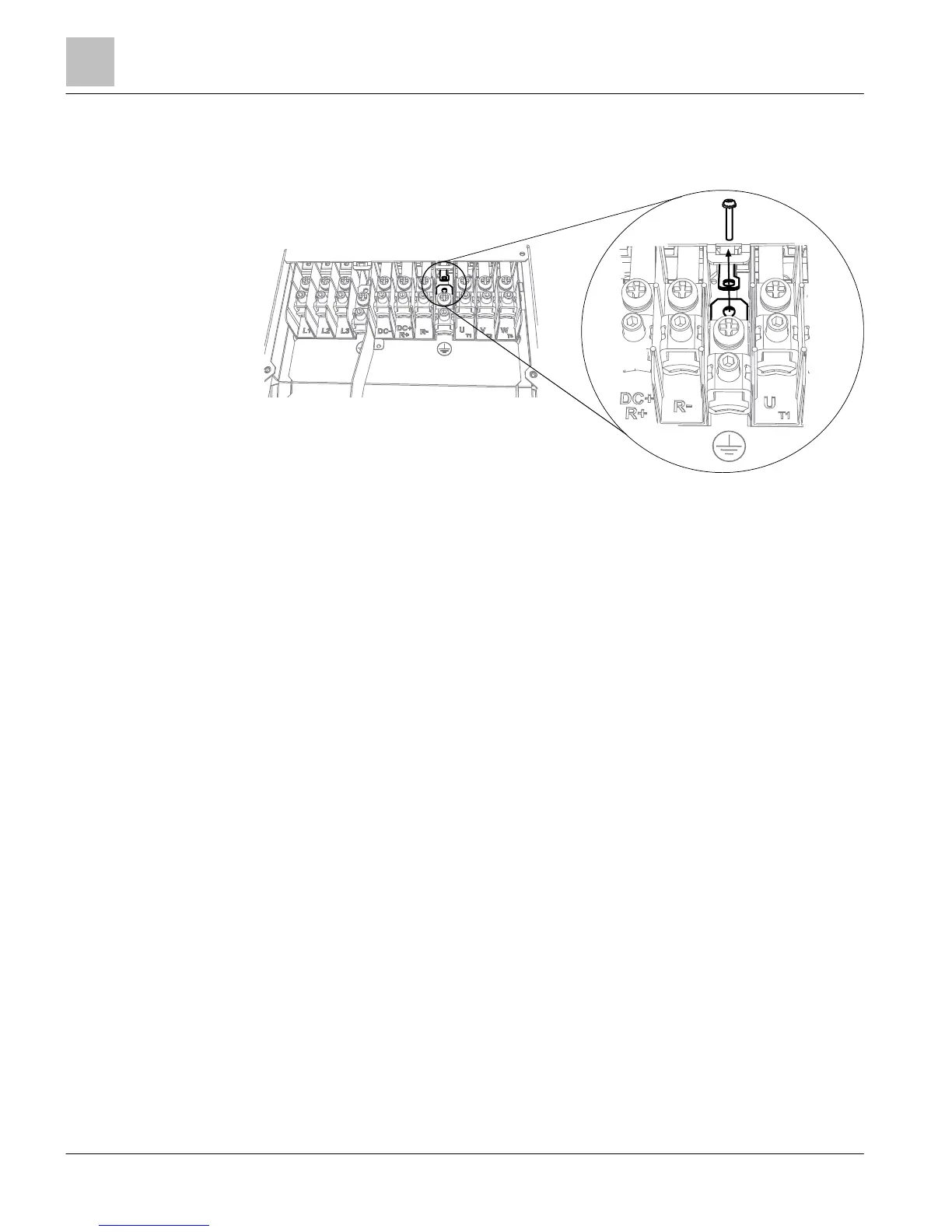

3. Additionally for FS7, locate the DC grounding bus-bar between connectors R- and
U and detach the bus-bar from the frame by removing the M4 screw.
Figure 59: FS7: Detaching the DC Grounding Bus-Bar from the Frame.
Frame FS9
Use the procedure in this section to modify the EMC protection of the drive of frame
FS9 to EMC-level C4.
9062.emf
