Building technologies 2BHMI-TM overview 2015-07-02

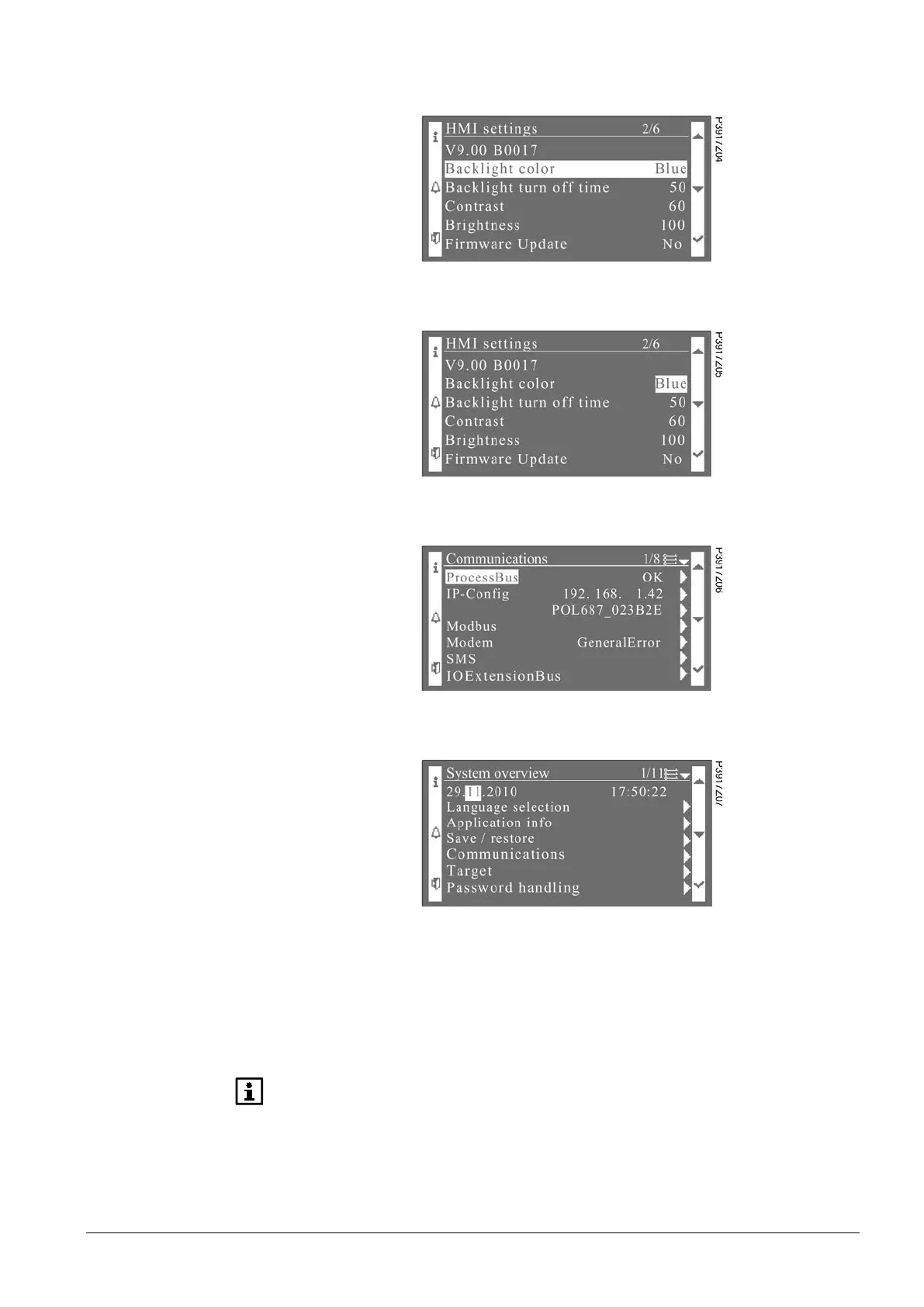

If there is writable value (data point) in a line, the whole line will be highlighted
when selected.
Press key ENTER, and the writable data point will be highlighted for users to
change the value:
If there is no writable value in a line, the first string will be highlighted when the line
is selected.
If there are more than one writable data point in a line, each data point can be
highlighted respectively by pressing key ENTER repeatedly:
In the case that 6*12 or 7*14 Latin characters are used, maximum 8 lines can be
displayed on one screen. Maximum 30 characters can be displayed in each line
including the submenu indictor “►”.
In the case that 12*12 or 14*14 Eastern Asian characters such as Chinese are
used, maximum 8 lines can be displayed on one screen. Maximum 15 characters
can be displayed in each line including the submenu indicator “►”.
The Latin characters and Eastern Asian characters are generated by SCOPE. Font
size of characters varies with different versions of SCOPE.
Highlight
Number of
characters
in a line
