Siemens CP 1543-1 User Manual

CP 1543-1
Operating Instructions, 05/2017, C79000-G8976-C289-07
11
Product overview, functions
2
2.1
Product data
Article number, validity and product names
This description contains information on the following product
CP 1543-1
article number 6GK7 543-1AX00-0XE0
hardware product version 2
firmware v
ersion V2.1
communications processor for SIMATIC S7-1500

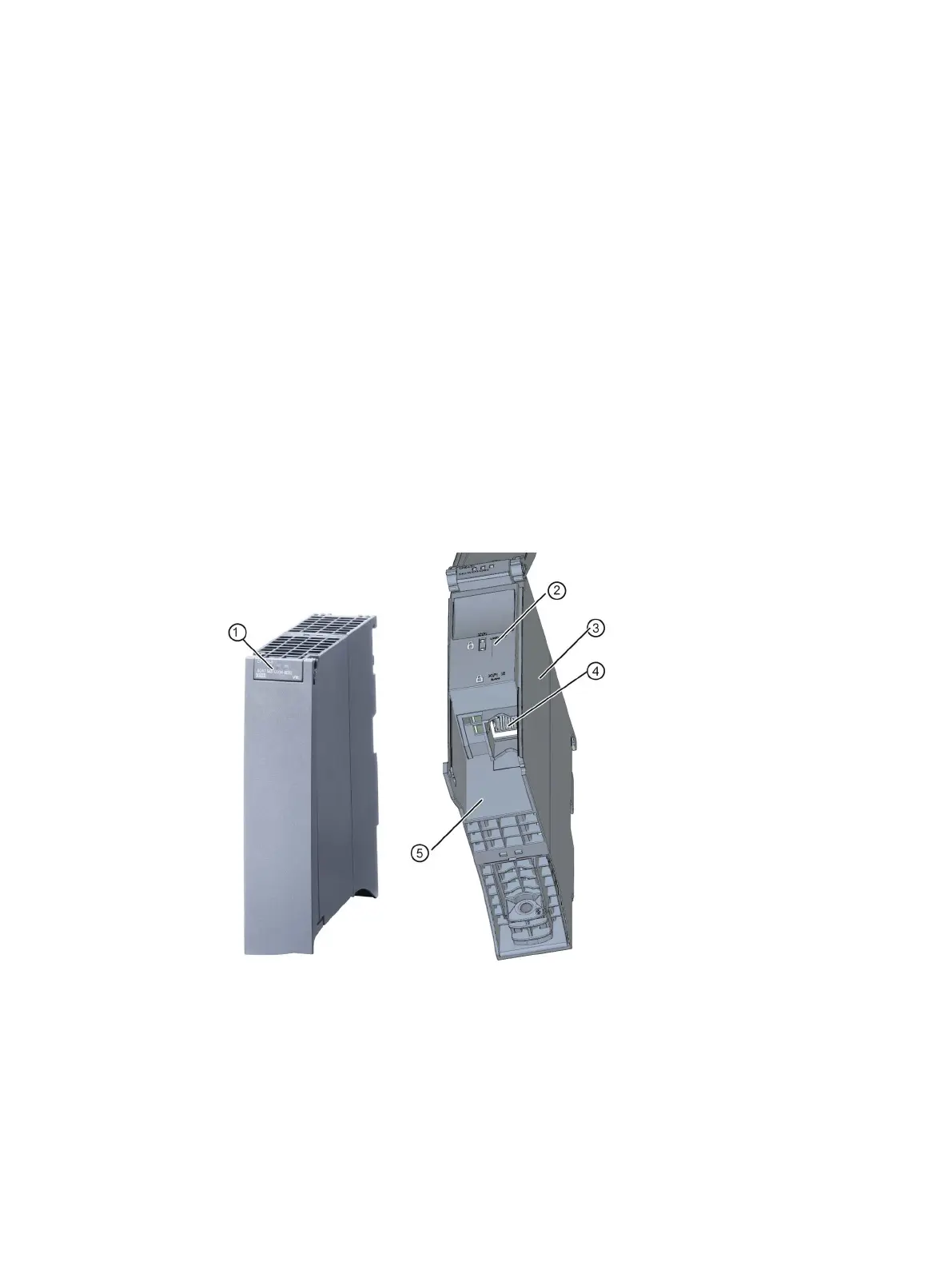

View of the CP 1543-1
①
LEDs for status and error displays
②
LED displays of the Ethernet interface for connection status and activity
③
Type plate
④
Ethernet port: 1 x 8-pin RJ-45 jack
The padlock icon symbolizes the interface to the external, non-secure subnet.
⑤
Label with MAC address
Figure 2-1 View of the CP 1543-1 with closed (left) and open (right) front cover
