Properties of a DRIVE-CLiQ interface
Table 4-9DRIVE-CLiQ interfaces X100 to X103
Property Version
Connector type DRIVE-CLiQ connector (RJ45 socket)
Cable type, inside the control cabinet DRIVE-CLiQ standard
Cable type, outside the control cabinet MOTION CONNECT
Blanking plug for closing unused DRIVE-CLiQ inter
faces
Blanking plugs are included in the scope of delivery
of the SIMATIC Drive Controller.
Additional blanking plugs are available as accessor
ies.
NOTE
The maximum permissible cable length is 100m.

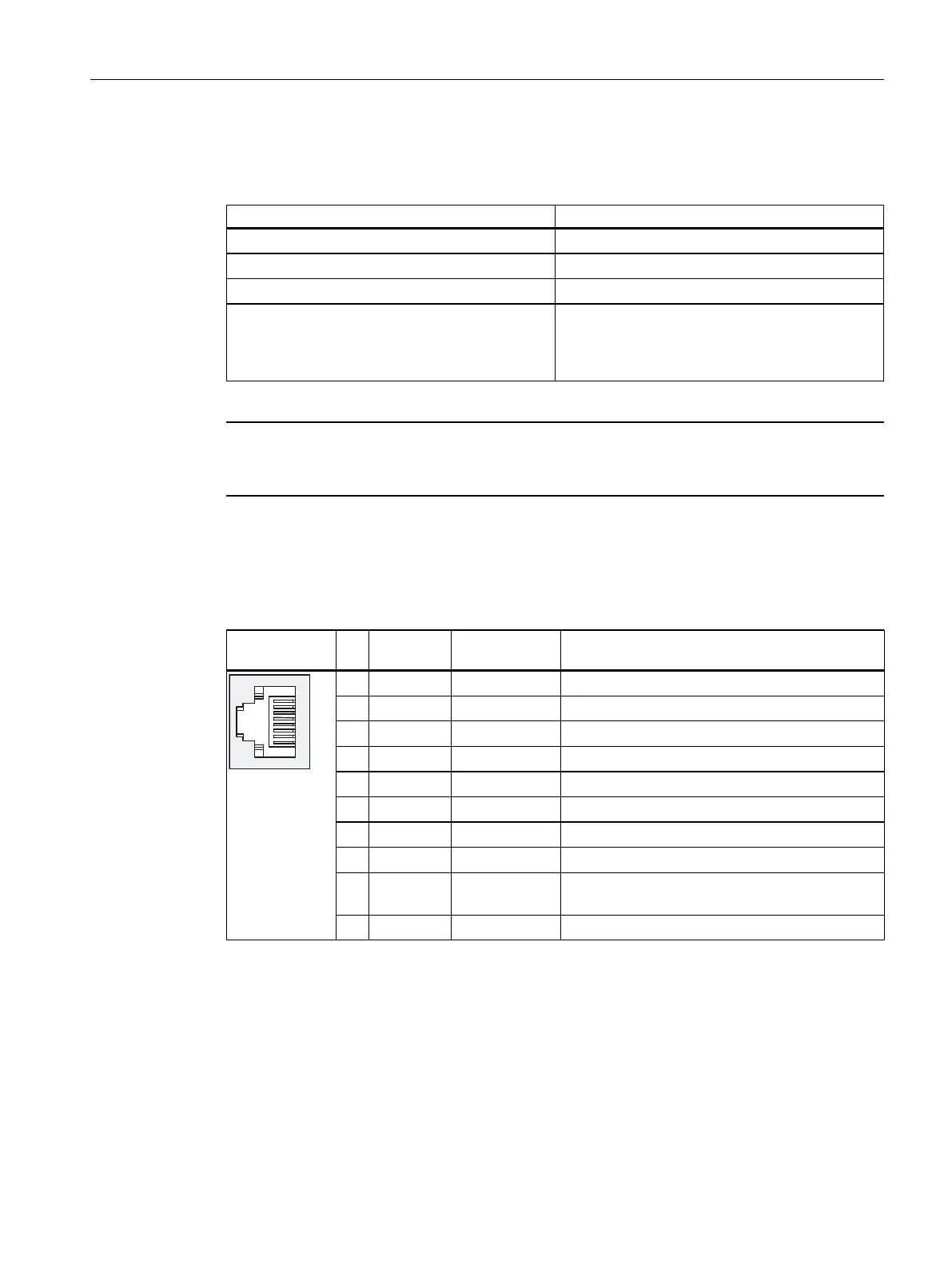

Pin assignment of a DRIVE-CLiQ interface
Table 4-10Pin assignment of DRIVE-CLiQ interfaces X100 to X103
View Pin Signal
name
Type of signal Meaning
1 TXP Output Transmit data +
2 TXN Output Transmit data -
3 RXP Input Receive data +
4 - - Reserved; no connection
5 - - Reserved; no connection
6 RXN Input Receive data -
7 - - Reserved; no connection
8 - - Reserved; no connection
A + (24V) Voltage Output Voltage supply for DRIVE-CLiQ,
≤ 450mA
B M (0V) Voltage Output Ground for 24V
53
Connecting
4.5 DRIVE-CLiQ interfaces X100 to X103
SIMATIC Drive Controller
Equipment Manual, 11/2022, A5E46600370-AC
