The DMS8000 MP4.xx NICE/RIVER Digital Video Recorders Add-on module is a software component designed to integrate NICE and RIVER video systems into MM8000 management stations. This add-on module facilitates the installation, configuration, and operation of these video systems within the Siemens Building Technologies MM8000 environment, enhancing the overall security management capabilities.

Function Description

The primary function of the DMS8000 MP4.xx add-on module is to enable seamless communication and control between MM8000 management stations and NICE/RIVER video security solutions, which include Digital Video Recorders (DVRs) and digital Decoders. This integration allows MM8000 to access video images, manage events, and navigate through video feeds, as well as monitor the states of various video devices.

The module supports different types of integration, allowing MM8000 to incorporate video images into its event treatment and navigation processes. It also provides status information for video devices, contributing to a comprehensive overview of the security system. The specific NICE/RIVER products and versions supported are detailed in the MM8000/MK8000 Release Notes, ensuring compatibility and up-to-date functionality.

A key component of this integration is the Video Network Manager (VNM), which must be added to the MM8000/MK8000 configuration in Composer. The VNM enables the necessary video network communication. Once the VNM is added, the Composer project is expanded to support CCTV functions, including the addition of a "Camera Extensor" tab to all nodes. This tab allows for the association of cameras and the manual addition of cameras to a selected node, as well as setting default preset positions for dome and PTZ cameras during event treatment.

Communication with NICE and RIVER video servers is handled by a specific driver, the NR Driver, which operates under the VNM node. This driver is crucial for establishing and maintaining the connection between the MM8000 system and the video infrastructure.

Usage Features

The DMS8000 MP4.xx add-on module offers several usage features that streamline the management of integrated video systems:

Software Installation and Licensing: The add-on package is provided on the MM8000 product DVD and is installed using the standard Add-on Manager. Proper licensing is essential, requiring specific items for the add-on, the NS8016 driver, and the necessary DVR units to be included in the MM8000 license. This ensures that all functionalities are legally enabled and operational.
Configuration Procedures: The module provides detailed configuration procedures for both Digital Video Recorders (DVRs) and Digital Video Decoders.
- DVR Configuration: This involves adding the NICE/RIVER driver, creating folders for DVR systems, adding DVR nodes, configuring DVR IP addresses, linking DVRs to the driver, connecting cameras, configuring video monitors and alarm I/O objects, and setting up video camera coverage. Secure connection settings, including username and password authentication, are emphasized for robust communication.

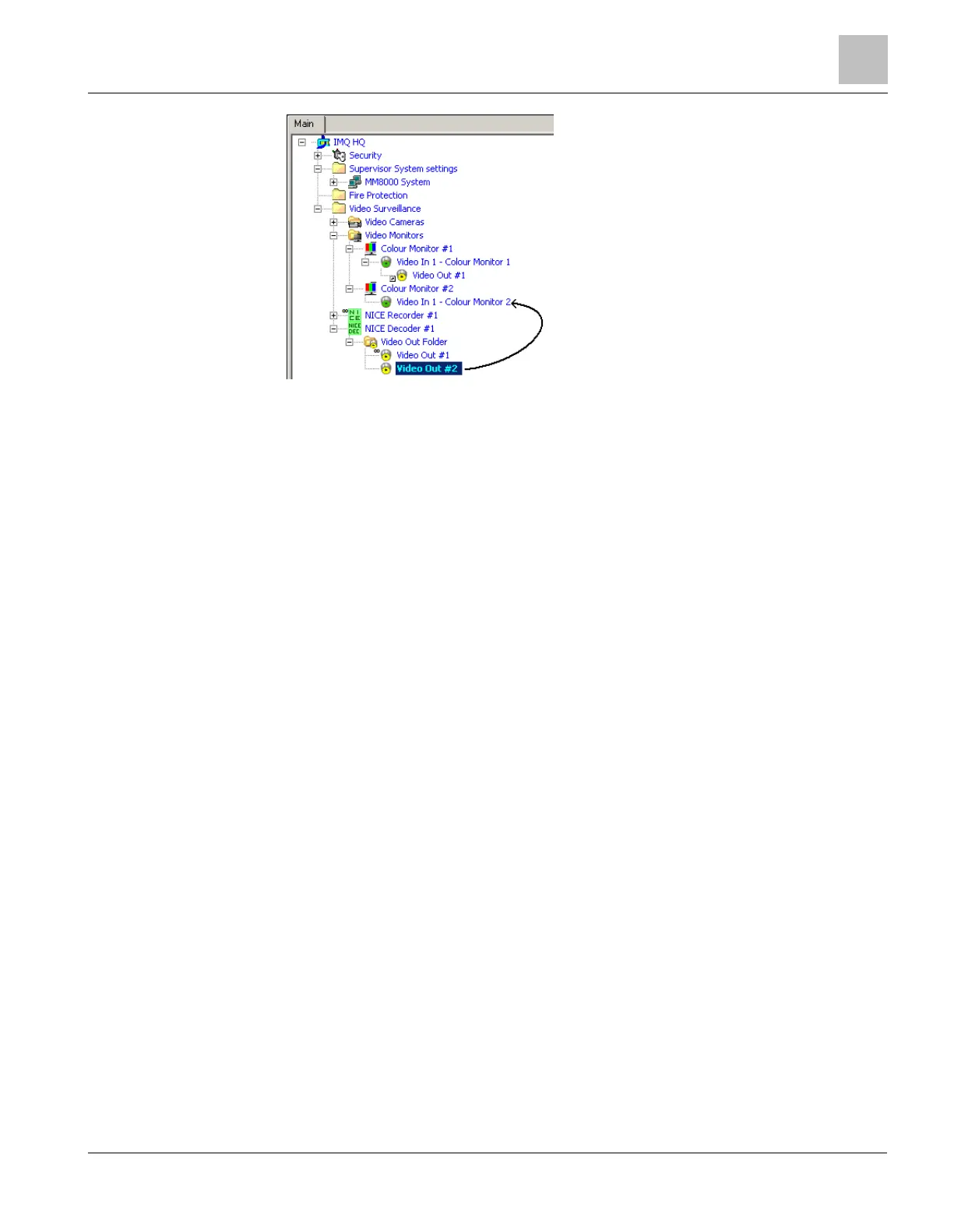

- Decoder Configuration: Similar to DVRs, decoder configuration includes adding folders and nodes for decoders, configuring their IP addresses, linking them to the video driver, and connecting monitors. This allows for the display of video feeds from the NICE/RIVER system on designated monitors.
Camera Extensor Tab: This feature, accessible after adding the VNM, allows users to manage camera associations and manually add cameras. For PTZ (Pan-Tilt-Zoom) cameras, it enables the setting of a default preset position, which is the camera's initial position when selected during event treatment.
Secure Communication: The system strongly recommends enabling secure connections for both the NICE/RIVER server and individual recorders. This involves defining administrator accounts for remote access to the server and setting recorder passwords in the SiteBuilder tool, ensuring that only authorized users can access and control the video system.
PTZ Control Panel: For cameras equipped with PTZ control features, a dedicated control panel is available within MM8000 during event treatment and plant browsing. This panel allows users to:
- Preset Positions: Select predefined camera positions from a drop-down menu, enter names for new positions, delete existing positions, and store new positions.
- Speed Adjustment: Adjust the speed of camera motion (pan, tilt, zoom) using '+' and '-' controls.
- Zoom/Focus Control: Adjust the camera's zoom and focus settings with '+' and '-' buttons.
- Pan/Tilt Control: Use arrow buttons to pan and tilt the camera to any desired position.
Multiple Add-on Installation: The system generally supports the installation of multiple add-on packages, allowing users to combine functionalities. However, it advises checking for potential incompatibilities in the documentation of all add-on modules to ensure smooth operation.

Maintenance Features

While the manual primarily focuses on installation and operation, certain aspects touch upon maintenance and system integrity:

Documentation Resources: The DMS8000 Documentation Resource Information and Glossary Guide provides comprehensive information on documentation resources, including definitions, training programs, a list of available documents, instructions for obtaining documents, and customer support links. This ensures that users have access to the necessary information for troubleshooting and understanding the system.
Safety Regulations and Liability Disclaimer: The manual emphasizes the importance of adhering to safety regulations and country-specific standards. It includes a liability disclaimer, highlighting that Siemens disclaims responsibility for damage or injuries resulting from improper use, disregard of safety instructions, or poor maintenance. This implicitly guides users towards proper maintenance practices to avoid issues.
Modifications and Extensions: Users are advised to request written approval from Siemens Building Technologies and relevant authorities for any intended system modifications or extensions. This ensures that changes are properly vetted and do not lead to faults or malfunctioning, contributing to system stability and longevity.
Regular Review of Documentation: The manual states that its contents are regularly reviewed and corrections are included in subsequent editions. This commitment to updated documentation supports ongoing maintenance by providing accurate and current information.
Technical Notes and Limitations: The "Technical notes" section, particularly "Limitations," provides crucial information for system maintenance and troubleshooting. It outlines current constraints such as the maximum number of connectable DVR units, AMS servers, and playback capabilities. It also mentions specific settings for AMS Servers with multiple IP addresses, which can be critical for maintaining stable communication in complex network environments. Understanding these limitations helps in planning and managing the system effectively, preventing potential issues related to scaling or specific configurations. For instance, the note about data and time synchronization failing during DVR registration is a key piece of information for diagnosing and resolving such issues.

In summary, the DMS8000 MP4.xx NICE/RIVER Digital Video Recorders Add-on module is a robust solution for integrating video surveillance into the MM8000 management platform, offering extensive configuration options, intuitive control features, and clear guidelines for secure and reliable operation.
