Installation
41

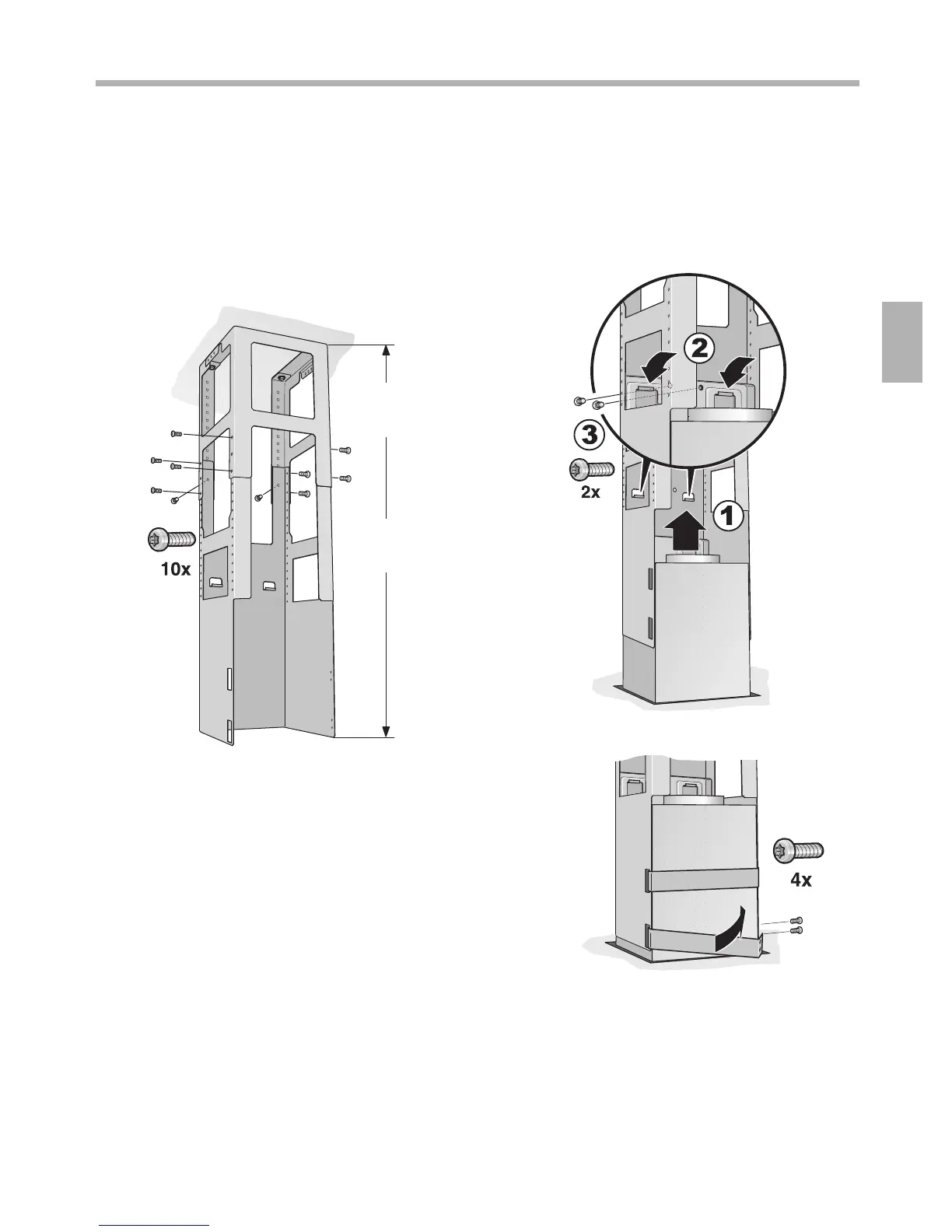

Installing the lower support frame
Attach upper and lower parts of the
support frame at the specied total height
with 10 screws (preferred hole selection, see
diagram).
Ensure that the lower support frame is in
the correct position. The open side must be
facing the hob control.
NOTE: The support frame can be aligned
subsequently by loosening the fastening
screws on the ceiling.
Installing the extractor hood
1. Hook the extractor hood from below into
the support frame.
Do not trap the power cord!
2. Attach the extractor hood to the support
frame with 2 securing screws.
3. Hook in retaining clip and screw tight.
4. Connect the pipes.
5. Connect the power supply.
Exhaust-air
mode
700-880
Circulating-air
mode
700-1000
