Siemens FC123-ZA User Manual

5
Building Technologies
CPS Fire Safety

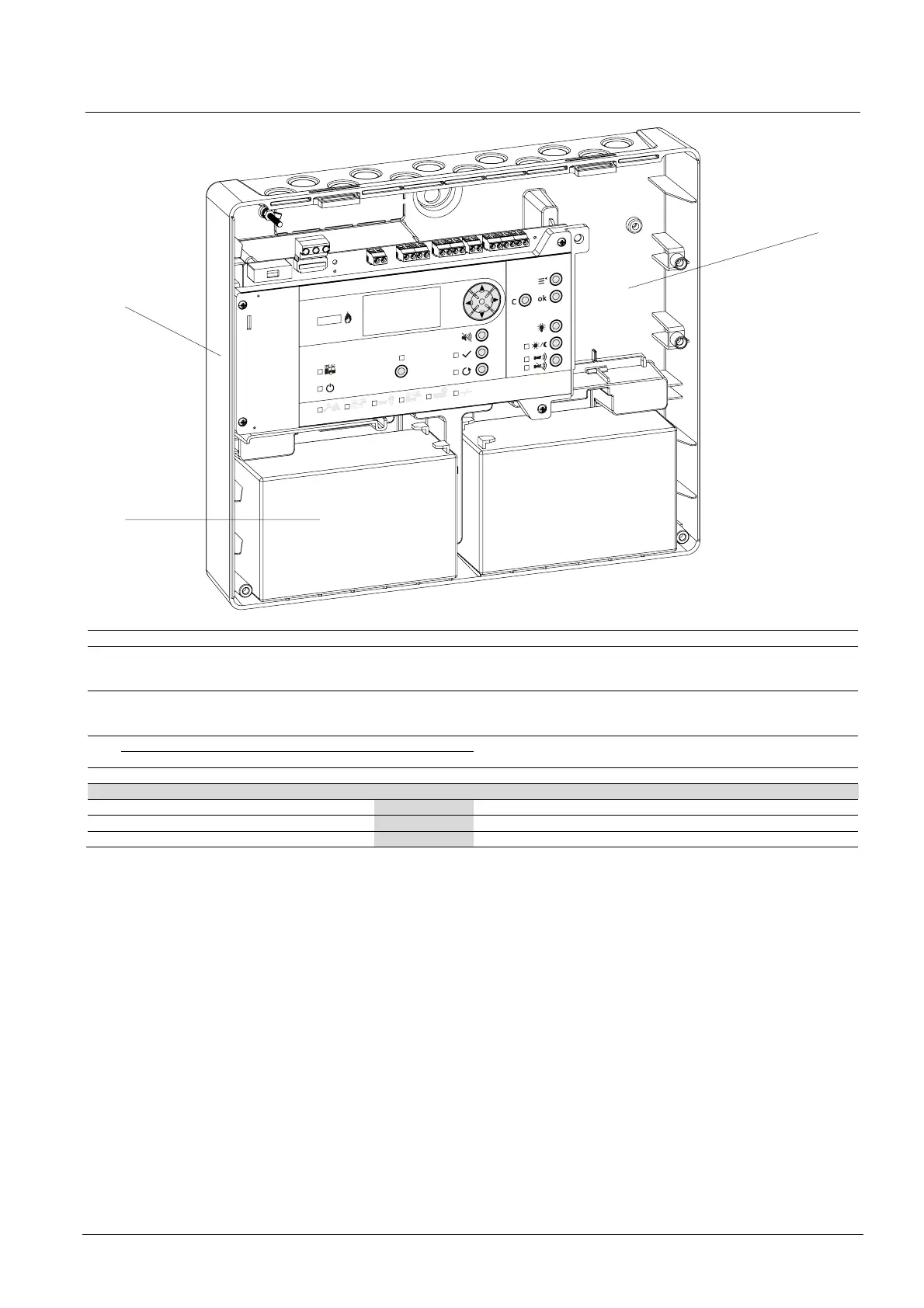

Configuration of FC121-ZA and FC122-ZA
4
1
2
3
Basic equipment Designation Notes
1 Control panel with
- Power supply
- Main board
FC121-ZA 2 zones
2 Control panel with
- Power supply
- Main board
FC122-ZA 4 zones
3 Battery (12 V, 4 Ah, VDS) AX1213 For emergency power supply
Battery (12 V, 7 Ah, VDS) FA2003-A1
4
Slot for expansions
–
Space for expansion A, B, C
Expansion
A
Output card 2M 2R
FCA1203-Z1
2 monitored outputs 2 relay outputs
B
EVAC module (NL 2&4 zones)
FTO1201-H1
Expansion C is not possible
C
Key switch (Nordic SE)
FCA1206-Z1 Expansion B is not possible
