Siemens FC123-ZA User Manual

6
Building Technologies
CPS Fire Safety

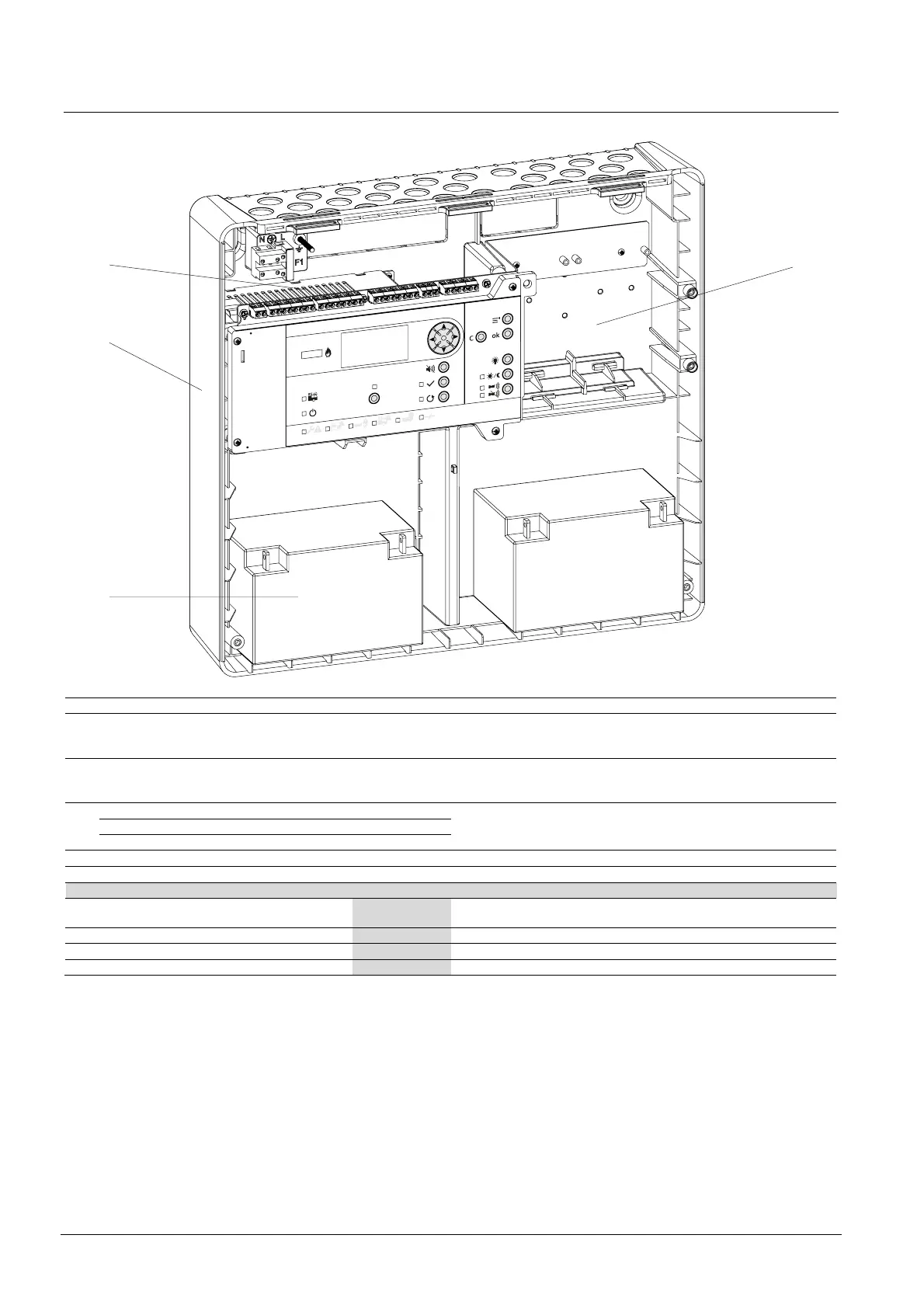

Configuration of FC123-ZA and FC124-ZA
5
1
2
3
4
Basic equipment Designation Notes
1 Control panel with
- Power supply
- Main board
FC123-ZA 8 zones
2 Control panel with
- Power supply
- Main board
FC124-ZA 12 zones
3 Battery (2 x 12 V, 7 Ah, VDS) FA2003-A1
For emergency power supply
Battery (2 x 12 V, 12 Ah, VDS) FA2004-A1
Battery (2 x 12 V, 17 Ah, VDS) FA2005-A1
4 Power supply 70 W FP2015-A1
5
Slot for expansions Space for expansion A, B, C, D
Expansion
A
Output card 2M 2R
FCA1203-Z1
FC123: max. 2 additional cards
FC124: max. 3 additional cards
B
Zone ind. Field 12x2 LED
FTO1202-Z1
Expansion C, D are not possible
C
EVAC module (NL 8&12 zones)
FTO1203-H1
Expansion B, D are not possible
D Key switch (Nordic SE) FCA1206-Z1 Expansion B, C are not possible
