9.2 Beam characteristics of the LEDs on the sounder
beacon interbase (DC 32 V)

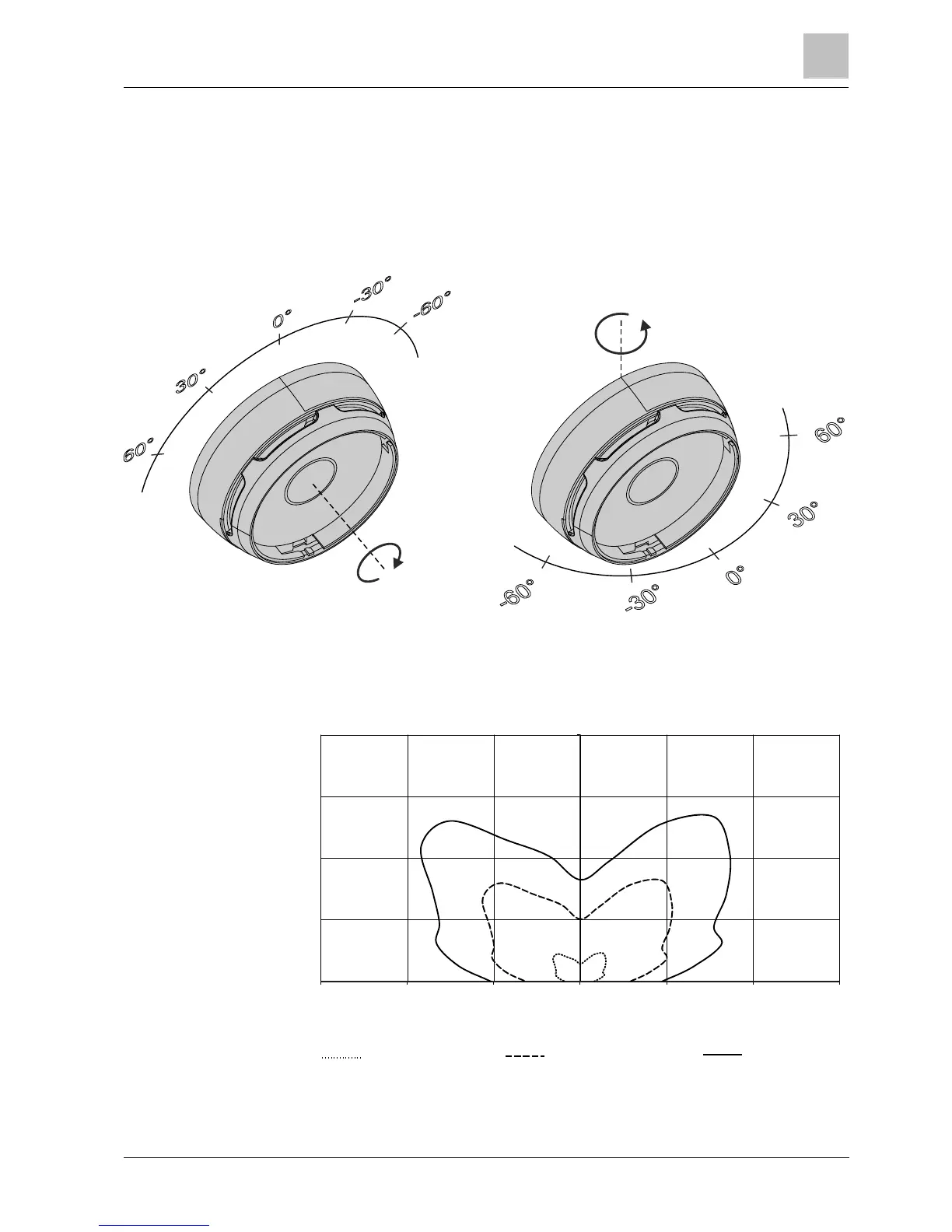

To indicate the effective luminous intensity I
eff
of the FDSB229 interbase (in
accordance with the Blondel-Rey law), a polar coordinate system is used based on
azimuth and elevation. The zero point of the azimuth (0°) relates to the position of
the internal alarm indicator in the interbase FDSB229.
Azimuth Elevation
Effective luminous intensity of the sounder beacon interbase
FDSB229 with point detector inserted
0
1
2
3
4
-3
[candela]
-2 -1 0 1 2 3
high intensity
normal intensity
low intensity
Interbase FDSB229 with point detector
