Siemens FN2012-A1 User Manual

Wiring
General wiring XLS
4
17 | 34
Building Technologies
A6V10407862_d_en_
--
Siemens Industry, Inc.
2018
-
09
-
07
4.3 General wiring XLS

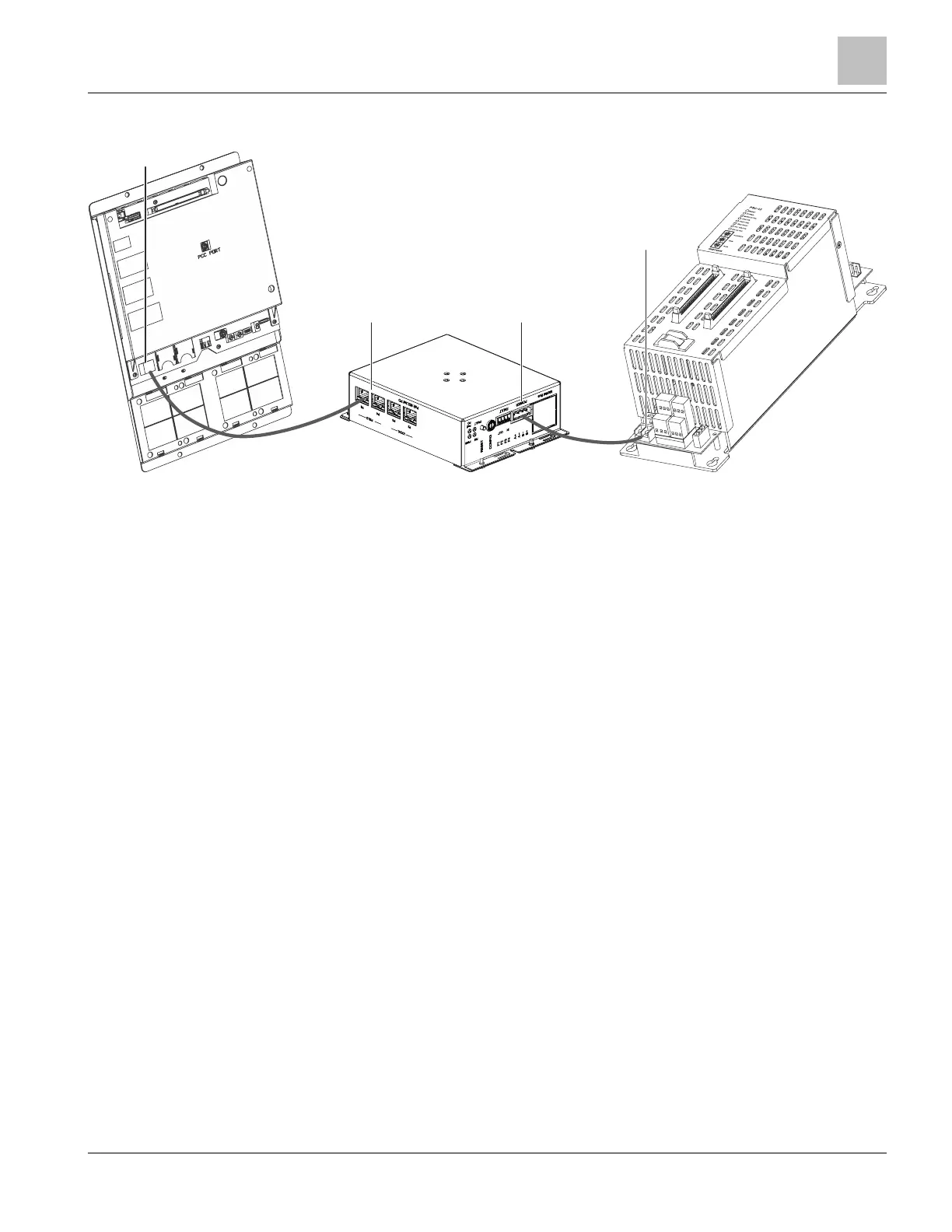

Figure 9: Wiring overview of XLS components
● The Ethernet switch (modular) is supplied via the PSC-12 power supply,
connection TB4.
● The internal Ethernet connection is established between port 4 or port 5 on the
Ethernet switch (modular) and the PMI-2, connection J11.
J11
P4/P5
local Ethernet
TB4
non power limited
DC 24 V OUT
POWER
A+, A-
