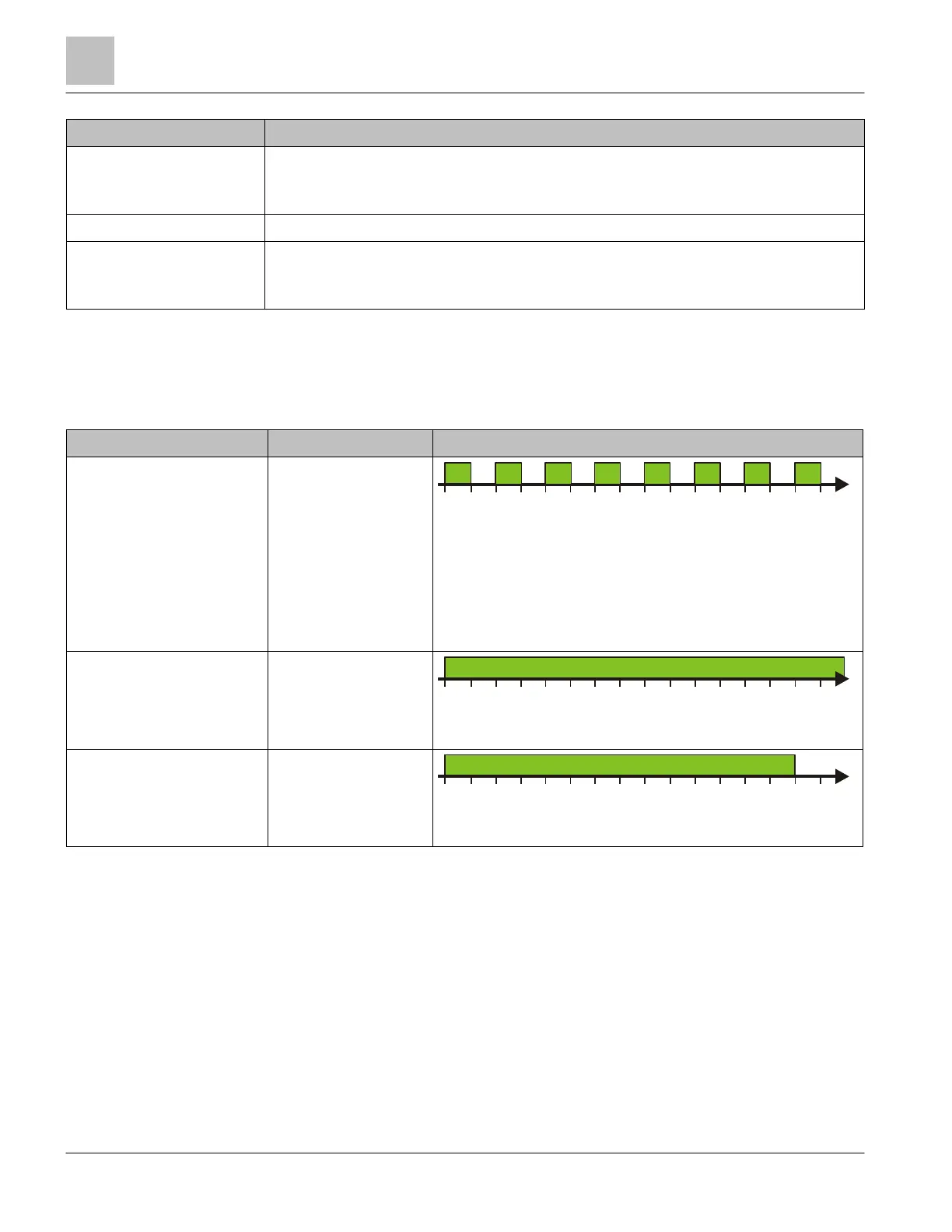

Function indicator Possible troubleshooting steps
FW Update Failed ● The Ethernet switch attempts to re-establish the connection in order to load the
FW.
● Restart the FW update via Desigo Fire Safety Works.
Checksum Failed ● Restart the FW update via Desigo Fire Safety Works.
Fatal FAULT ● Perform a reset. If that does not work, there is a hardware fault.
● Replace the Ethernet switch. Check whether any other fault messages are being
displayed in the FS20 system.
Table 3: Troubleshooting
Function indicators for the RM LED (redundancy manager)
Within each MRP
1
ring, there has to be a master Ethernet switch. All the other
Ethernet switches must perform the role of clients.
Function indicator Meaning RM LED flashing pattern (every 2 s)
Search Manager Ethernet switch is
being initialized
System is looking for
MRP manager
Topology has
changed because
Ethernet ring
participants have
been added or
removed
Manager Ethernet switch has
been configured as
the manager and is
performing the ring
manager role
Claim Manager Ethernet switch is
acting as the manager
but has not been
configured to perform
this role
