Siemens FT2001-A1 User Manual

4
Building Technologies
A6V10082691_j_en_
--
Fire Safety 2018-09-28
Design
Setup
Mimic display driver FT2001
2
1
3
6
4
4
7
3
5

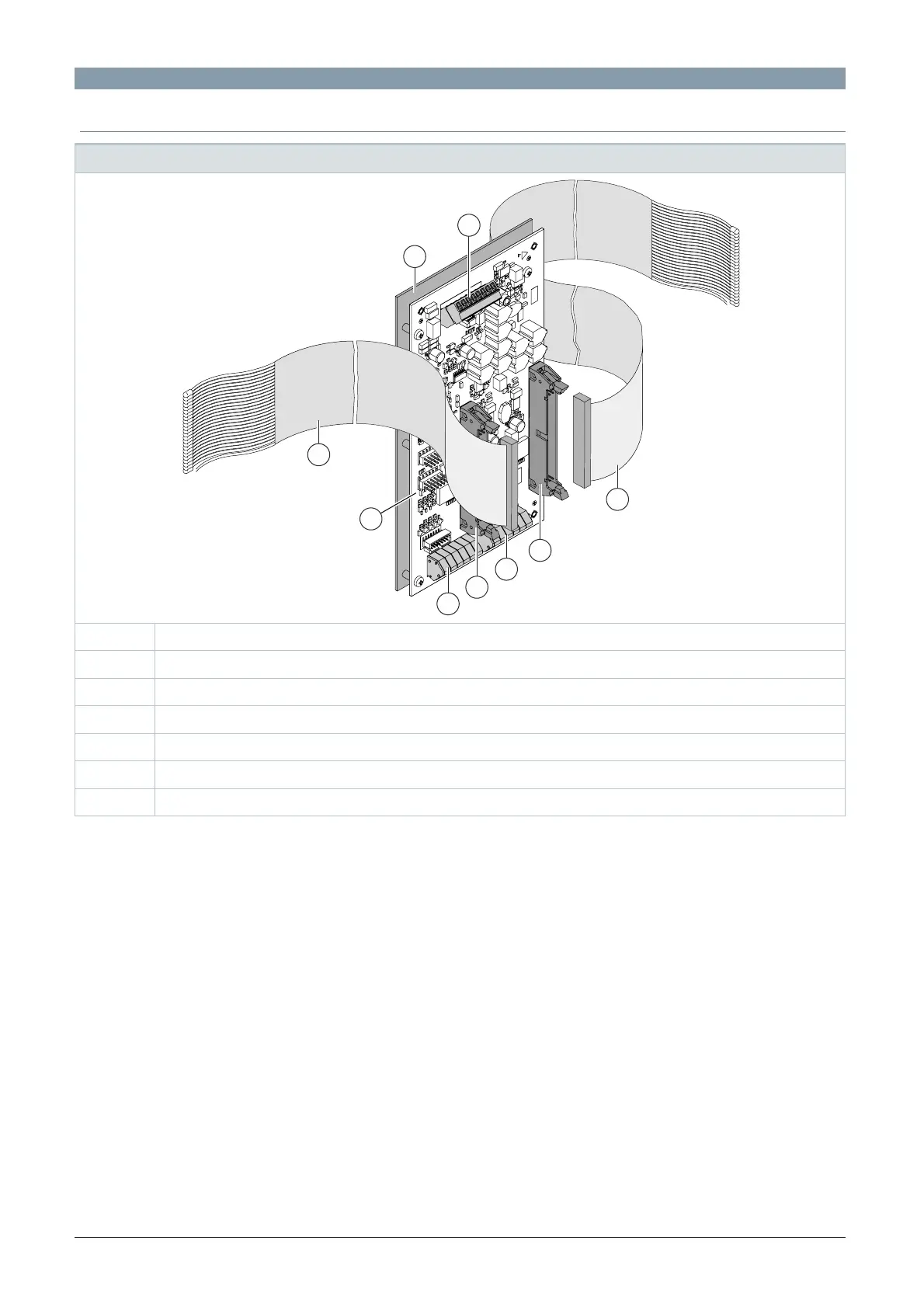

1 Mounting plate with mounting holes and spacer bolts
2 Connection for FDnet/C-NET and separate supply
3 LED ribbon cable 'F50F410', 50-pin with 24 red LEDs, 1 m
4 Connector for the connection of 2 x LED ribbon cables F50F410
5 Connection terminal for supply and operating status LED
6 Connection terminal for expanded periphery
7 Mimic display driver FT2001-A1
