H

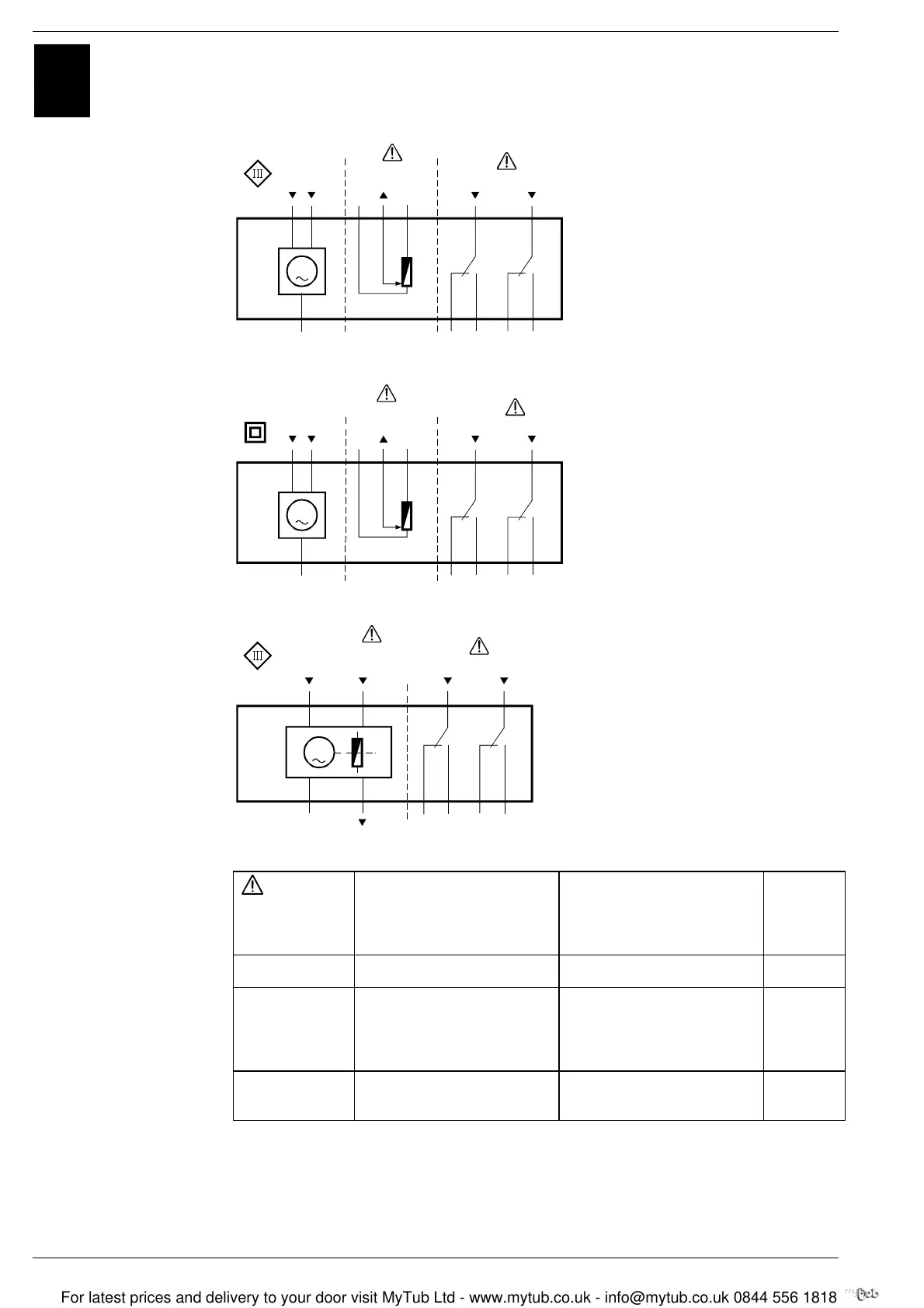

Geräteschaltpläne
Wiring diagrams
Schémas de raccordement
Kopplingsscheman
Aansluitschema’s
Schemi di collegamento
Kytkentäkaaviot
Conexionado eléctrico
Apparatdiagrammer
接线图
결선 회로도
配線接続図
GBB131.1E
GBB135.1E
GIB131.1E
GIB135.1E
4626G01
A
100%
0%
(Y2)
AC 0 V
0...1000 Ω
AC 24 V...230 V / 6 (2) A
(a)
(G)
(Q12) (Q14) (Q24) (Q22)
1
S2 S3 S5 S6
7P3S1
(Q11) (Q21)
B
S4
(Y1)
(b)
(c)
6P1
P2
AC 24 V
M
SELV/PELV
AC 24 V
Dreipunkt-Steuerung
Three-position control
Commande 3 points
Treläges styrning
Driepuntsbesturing
Comando a 3 punti
Kolmipisteohjaus
Control a 3 puntos
Trepunktsstyring
三位控制
3-위치 제어
３位置タイプ
GBB331.1E
GBB335.1E
GIB331.1E
GIB335.1E
4626G02
A
100%
0%
(Y2)
AC 230 V
0...1000 Ω
AC 24 V...230 V / 6 (2) A
(a)
(N) (Q12) (Q14) (Q24) (Q22)
4S2S3
7P3S1
(Q11) (Q21)
B
S5S6
S4
(Y1)
(b)
(c)
6P1P2
M
SELV/PELV
AC 230 V
Dreipunkt-Steuerung
Three-position control
Commande 3 points
Treläges styrning
Driepuntsbesturing
Comando a 3 punti
Kolmipisteohjaus
Control a 3 puntos
Trepunktsstyring
三位控制
3-위치 제어
３位置タイプ
GBB161.1E
GBB163.1E
GBB164.1E
GBB166.1E
GIB161.1E
GIB163.1E
GIB164.1E
GIB166.1E
4626G03
A
100%
0%
DC 0..10 V
(G)
AC 24 V
DC 0..10 V
GIB16...
(Y)
(G0) (U)
(Q12) (Q14) (Q24) (Q22)
29
S2 S3 S5 S6
1 8 S1 S4
(Q11) (Q21)
B
AC 24 V...230 V / 6 (2) A
GBB16...
SELV/PELV
M
AC 24 V
Stetigsteuerung DC 0...10 V
Modulating control DC 0...10 V
Commande progressif DC 0...10 V
Kontinuerlig styrsignal 0...10 V DC
Modulere besturing 0...10 VDC
Comando analogico 0...10 V c.c.
Jatkuva ohjaus DC 0...10 V
Control continuo 0...10 VCC
Kontinuerlig styring DC 0...10 V
DC 0…10V连续量控制
DC 0…10V 비례제어
DC 0...10V 比例タイプ
Voltage
Switch A (S1)
辅助开关 A
스위치 A
スイッチA
Switch B (S4)
辅助开关 B
스위치 B
スイッチB
ok / no!
AC 24 V AC 24 V AC 24 V ok
AC 230 V L1 (phase)
L2
L3
L
X
(phase)
L1 (phase)
L2
L3
≠ L
X
(phase)
ok
ok
ok
no!
mixed AC 24 V
AC 230 V
AC 230 V
AC 24 V
no!
no!
8/10 28.10.2005 M4626 4 319 2685 0 h Building Technologies / HVAC Products
