7.
Screw in the safety screw with the washer. ⁠
8.
Establish the electrical connection.
Piping
Note:If you are using an aluminium pipe, smooth the
connection area beforehand.
We recommend the piping with an exhaust air pipe dia-
meter of 150mm.
Establishing the exhaust air connection (exhaust
pipe, 150mm diameter)
1.
Secure the exhaust pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
Establishing the exhaust air connection (exhaust
pipe, 120mm diameter)
1.
Secure the reducing connector to the air-pipe con-
nector.
2.
Secure the exhaust air pipe to the reducing con-
nector.
3.
Seal the joints.

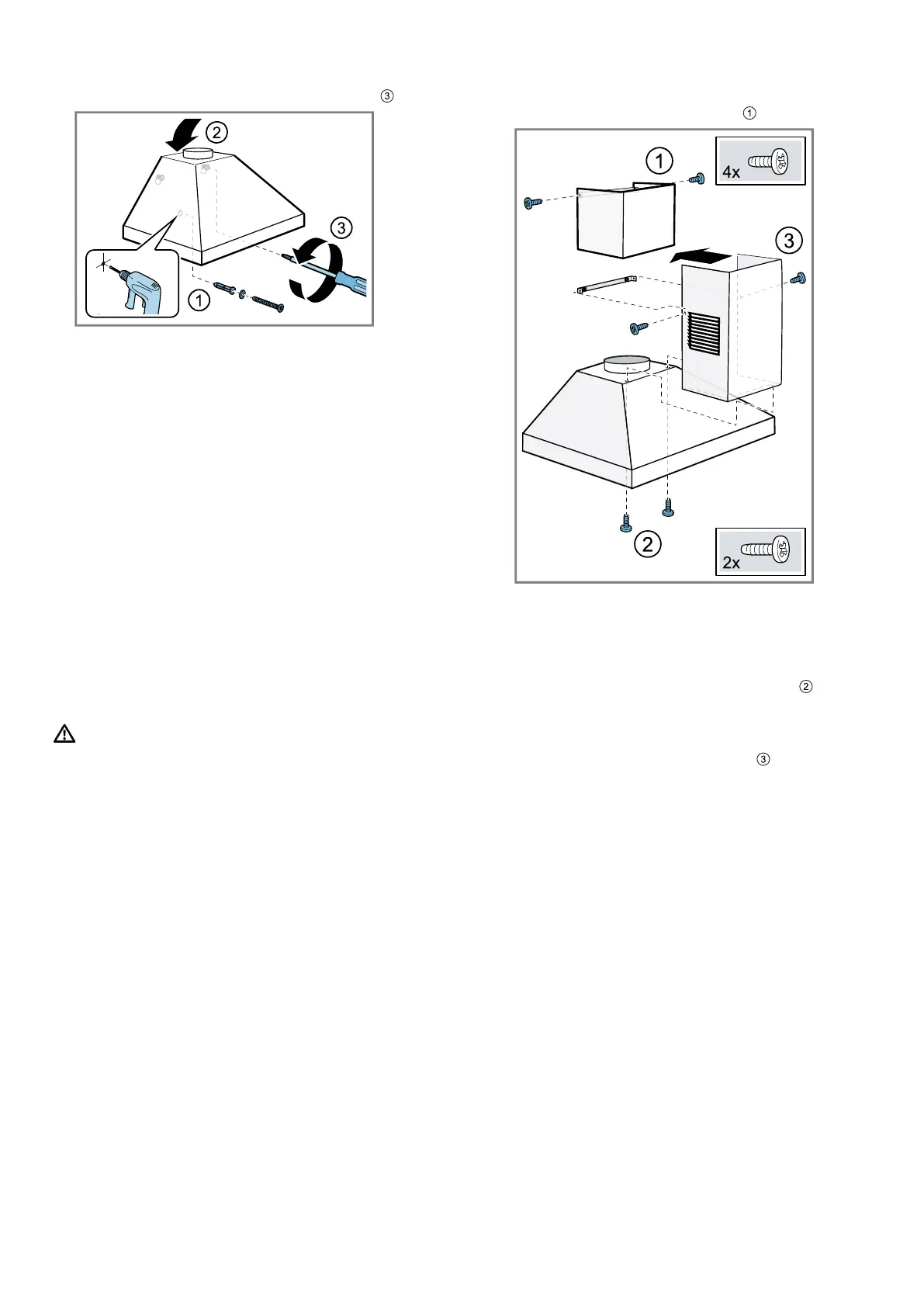

Installing the flue duct
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶ Wear protective gloves.
1.
Screw the retaining bracket for the flue duct to the
wall.
2.
To separate the flue ducts, remove the adhesive
tape or the flue duct from the protective packaging.
3.
Remove any protective foil from both flue ducts.
4.
Screw the upper flue cover to the sides of the retain-
ing bracket using the 2screws. ⁠
5.
Note:To prevent scratches, lay soft towels over the
edges of the outer flue duct to protect the surface.
Place the lower flue duct on the appliance and pull
it slightly apart.
6.
Use 2 long screws to screw the lower flue duct sec-
tion tightly to the appliance from below. ⁠
7.
Note:Align the flue duct before tightening the 2
screws.
Screw the lower flue duct to the sides of the retain-
ing bracket using 2 short screws. ⁠
8.
Carefully remove the towels.
