10
Connecting the pipes
Note: If using an aluminium pipe, smooth the connection area
beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe connector
and seal.
Exhaust-air pipe Ø 120 mm
1. Attach the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing connector.
3. Seal both joints appropriately.
Electrical connection
: Risk of electric shock!
from damaged connection cable. Do not kink or pinch
connection cable during installation.
The required connection data can be found on the rating plate
inside the appliance; to do this, remove the metal mesh grease
filter.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference suppression
regulations.
This appliance may be connected to a correctly installed
earthed socket only.
Attach the earthed socket preferably inside the flue duct.
■ The earthed socket should be connected via its own circuit.
■ If the earthed socket is no longer accessible following
installation of the appliance, a disconnecter must be fitted as
for a permanent connection.
If a permanent connection is required, the installation must
feature an all-pole disconnecter (circuit breakers, fuses and
contactors) with a min. 3 mm contact opening. The permanent
connection may be installed by an electrician only.

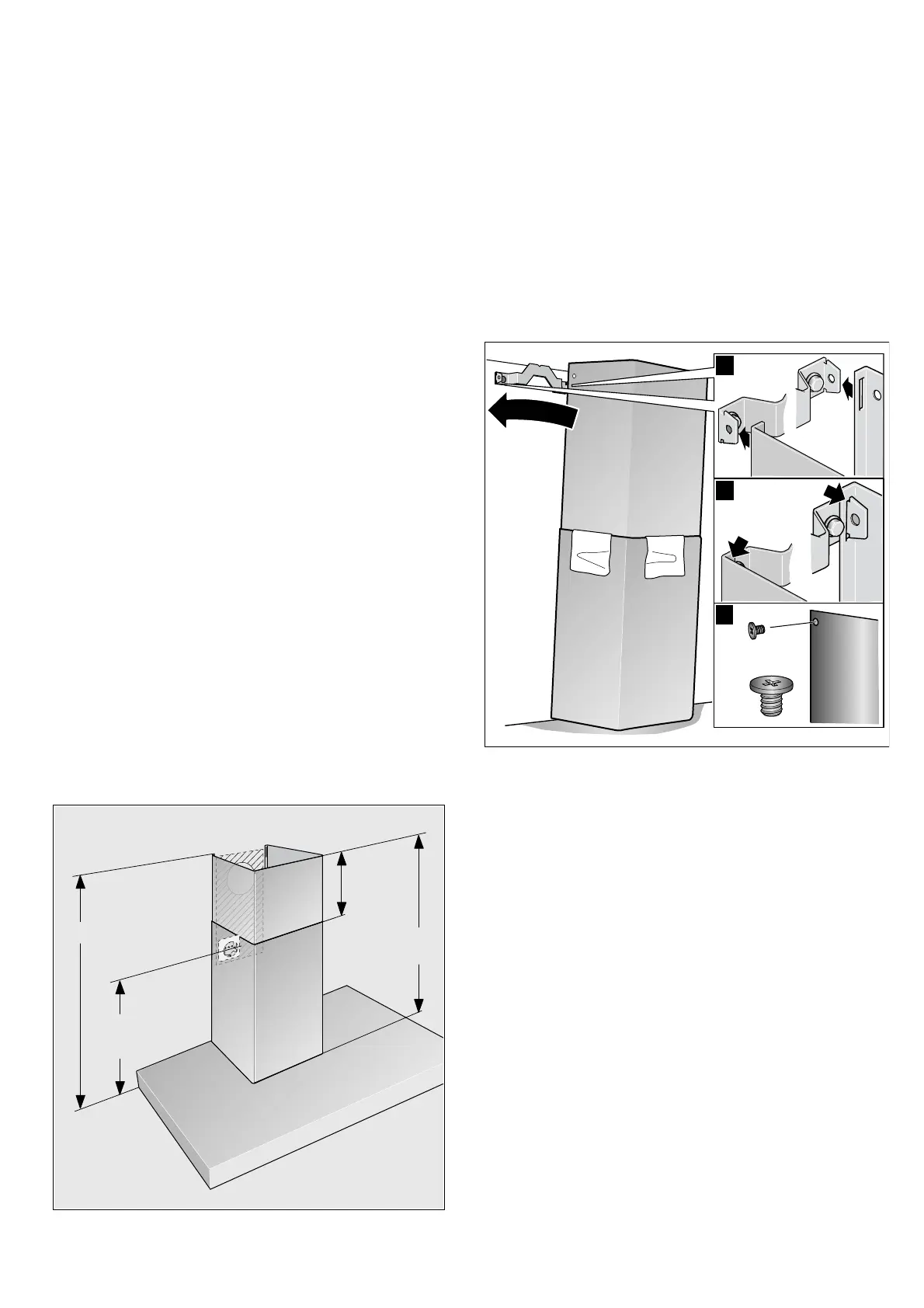

Attaching the flue duct
: Risk of injury!
From sharp edges during installation. Always wear protective
gloves while installing the appliance.
1. Separate the flue ducts.
To do this, remove the adhesive tape.
2. Remove the protective foil from both flue ducts.
3. Push one flue duct into the other.
Notes
■ To prevent scratches, use paper to protect the edges of the
outer flue duct.
■ Slots of the inner flue duct downwards.
4. Place the flue ducts on the appliance.
5. Push the inner flue duct upwards and attach it to the fixing
brackets on the left and right.
¨
6. Press the flue duct downwards until it engages. ©
7. Screw the flue duct to the sides of the fixing bracket using
two screws.
ª
PLQ
PP
PLQ
PP
PLQ
PP
PD[PP
[
$
%
&
