Preparing the installation
Caution!
Ensure that there are no electric wires, gas or water
pipes in the area where holes are to be made.

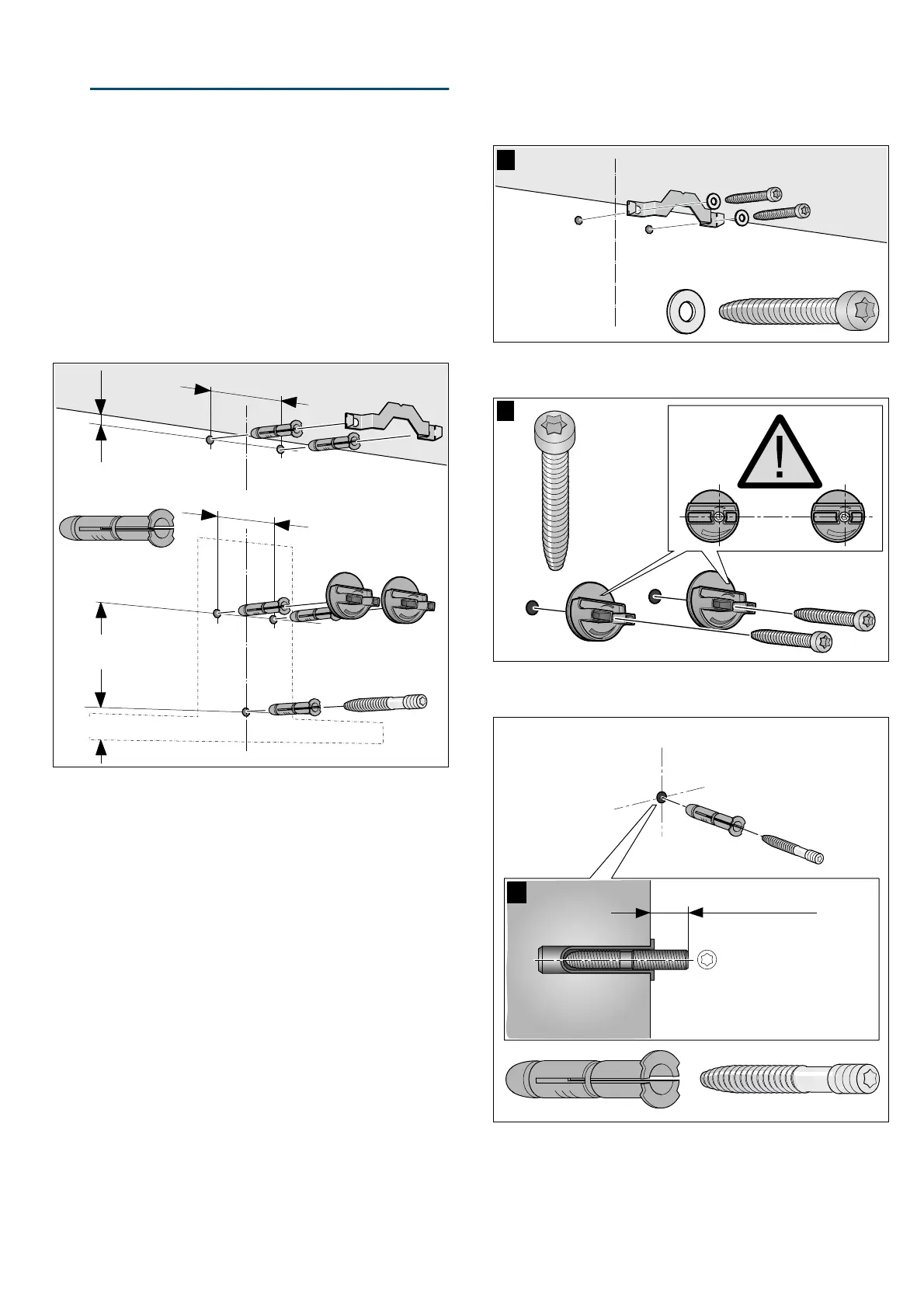

1. Mark a vertical centre line on the wall from the
ceiling to the lower edge of the extractor hood.
2. Mark positions for the screws and the contour of the
attachment area.
3. Drill five 8 mm diameter holes to a depth of 80 mm
for the attachments and press in the wall plugs flush
with the wall.
Installation
1. Screw on the fixing bracket for the flue duct. ¨
2. Screw on brackets for the extractor hood hand-tight.
Do not firmly tighten the screws. ©
3. Screw in the threaded bolt, leaving it protruding out
of the wall by 5–9 mm. ª
[
PP
PP
PP
PP
PP
[
$
[
%
NJONN
NBYNN
&
