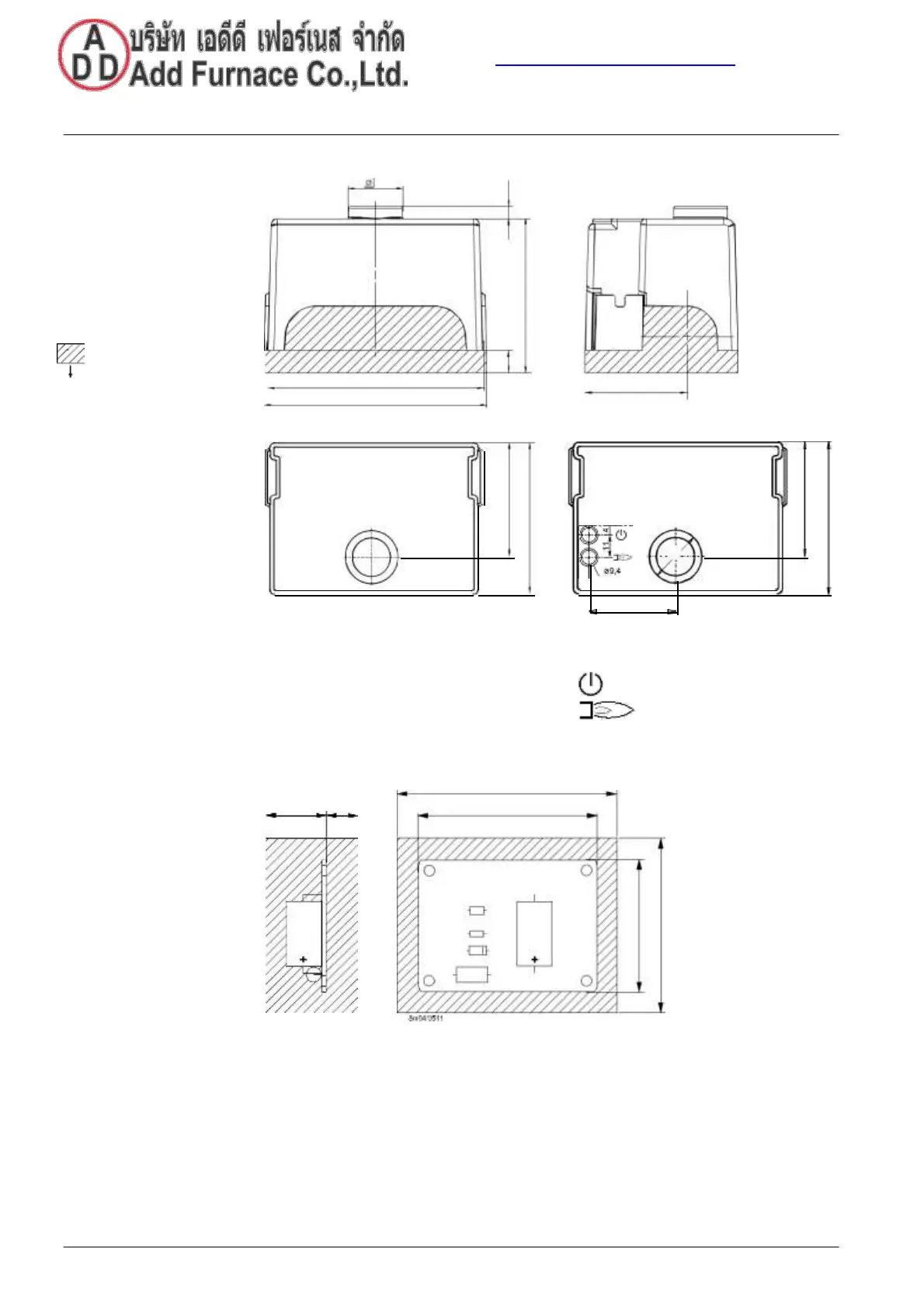

Dimensions
LOA...
Plug-in base AGK11...
Dimensions in mm
22
5,5
62,5
7118m06/0205
9
88
41,5
91
LOA2... LOA3...
47
62,5
47
62,5
2
2
36,5
7118m07/1004
Status indication (orange)
Indication of flame strength (green)
Remote lockout reset
module ARK21A27
>23
>12
>83,5
67,5
50
>66
16/16
Building Technologies Divisi
Remote lockout reset module for use with the LOA26... / LOA36...
Printed circuit board with no housing.
Degree of protection IP00, which means that protection against electric shock hazard,
must be ensured through mounting.
Do not place any metal objects in the hatched area.
The module must be fitted with the help of spacers made of plastic.
Do not use spacers made of metal.
CC1N7118en
