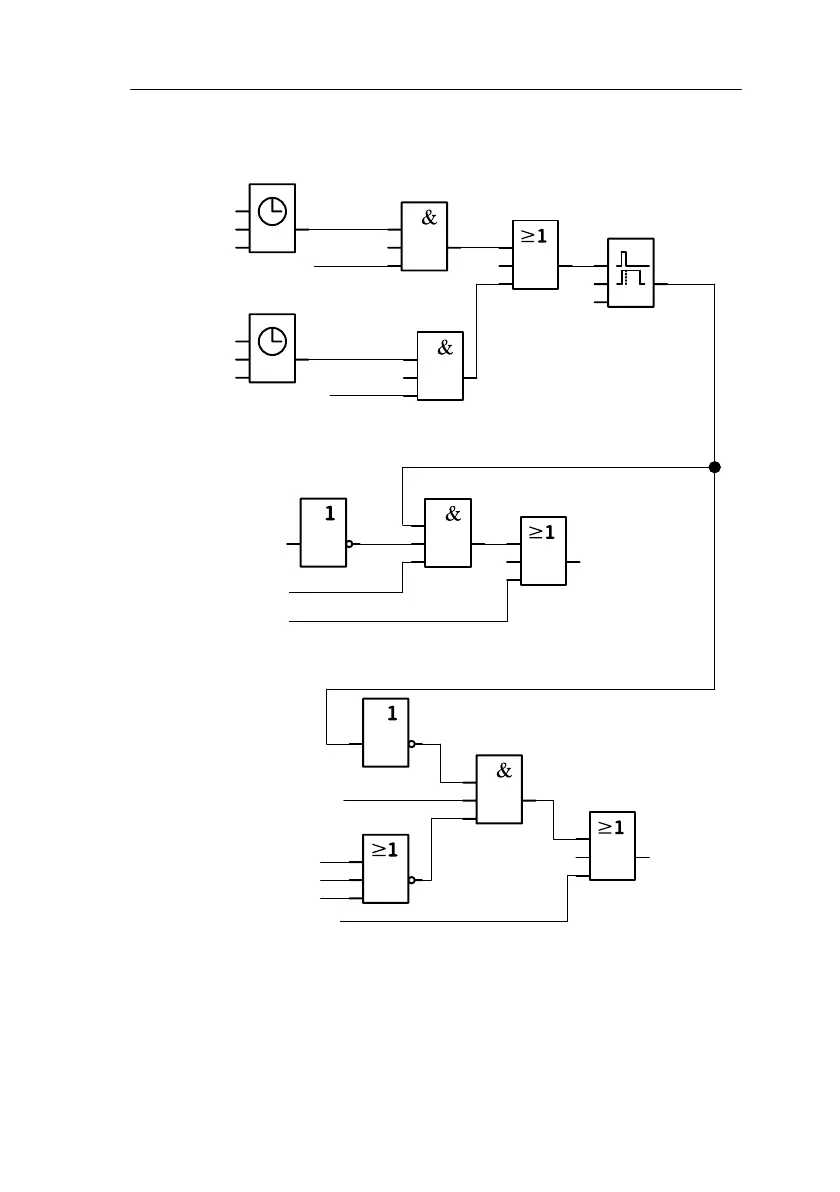

Functional block diagram of the enhanced LOGO! solution
x
x
x
x
No1:
Day= Mo..Fr
On = 09:00
Off =18:00
No2:
Day= Sa
On = 08:00
Off =13:00
No1:
Day= Mo..Fr
On = 09:00
Off =19:00
No2:
Day= Sa
On = 08:00
Off =14:00
I1
I2
Motion detector B1
Motion detector B2
T= 10 s
x
I5
Control switch
Door open
Q2Close output
I4
Limit switch
Door open
Q1
Open
Q2
Close
x
Q1
I1
I2
Open output
Motion detector B1
Motion detector B2
I3
Limit switch
Door closed
I6
Control switch
Close door
Detecting motion
Motor for opening
Motor for closing
