STEP 2:
Remove the battery cover and the battery as shown in PHOTO 2.8 & PHOTO 2.9 and keep the
Battery Cover, Battery, Battery Sealing, Accessory Connector Cover and External Antenna
Cover for Assembly of M35i .

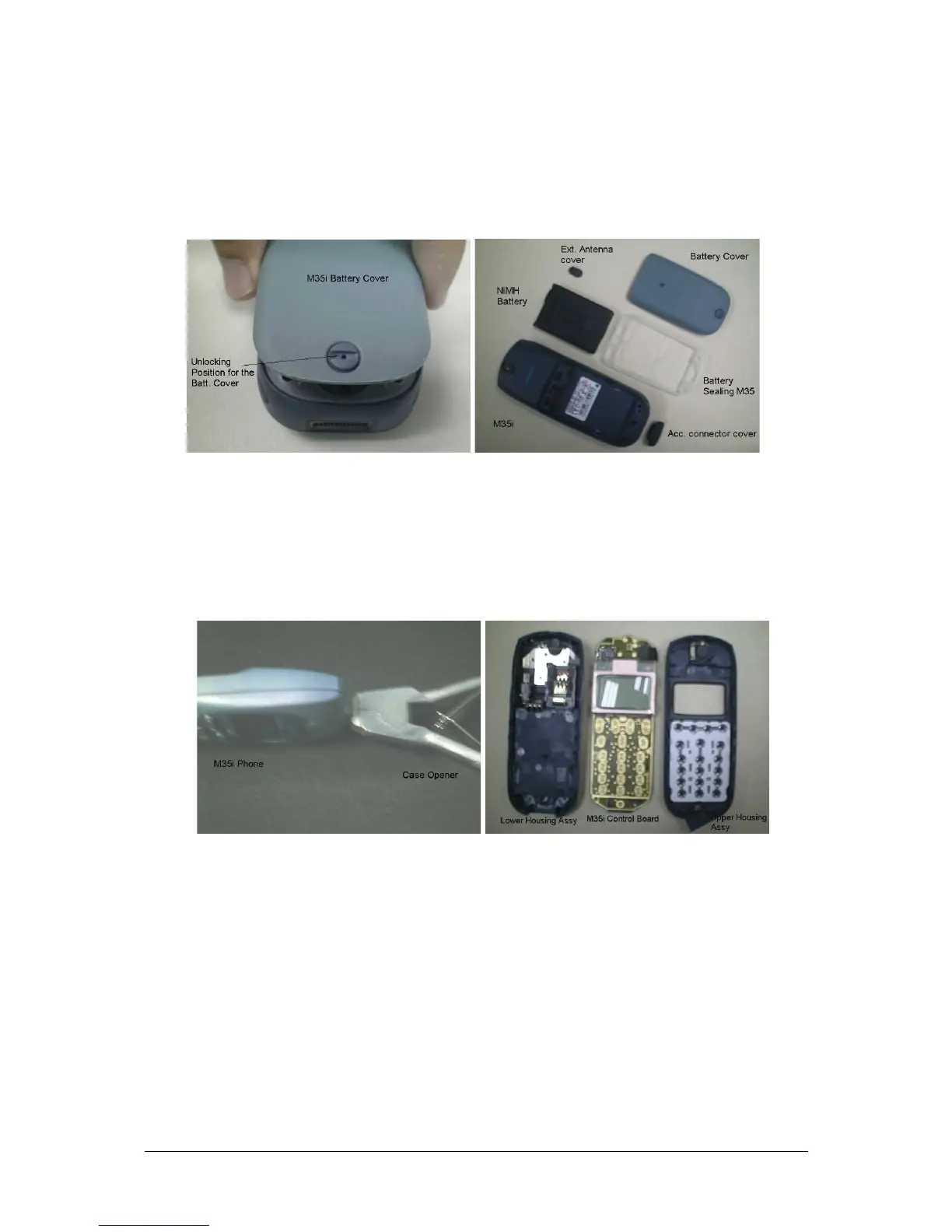

PHOTO 2.8 DISASSEMBLE M35i – STEP 2 PHOTO 2.9 DISASSEMBLE M35i – STEP 2
STEP 3:
Open the housing with the opening tool and carefully pull the lower housing section off as
illustrated in PHOTO 2.10
PHOTO 2.10 DISASSEMBLE M35i – STEP 3 PHOTO 2.11 DISASSEMBLE M35i – STEP 4
STEP 3:
Use the Case Opener carefully disengaged the catches of the Lower housing and Upper
housing to separate the housing and the Control Board Assembly as in PHOTO 2.11
