EPAC300-M50 SERIES USER’S MANUAL
AUGUST 2005 PAGE 7 OF 46
MODEM OPTION
EX
PANSION SLOTS
RUGGEDLEXANCASE
BUILT-IN CARRYING HANDLE
15.5
”
9.5
”
7
”
POWERFUL 32
-
PROCESSOR
INFRARED PORT
PDA OR LAPTOP
PORT 3 FSK MODEM
NTCIP OR ECOM
10 BASE-T ETHERNET
WITH IP ADDRESS
PORT 2 EIA-232
NTCIP OR ECOM
PORT 1 SDLC COMM
TO CABINET I/O
FLASH MEMORY FOR
SOFTWARE UPDATES
REMOVABLE HAND-HELD FRONT PANEL DISPLAY
SNAPS TO FRONT OF UNIT OR CONNECTS VIA
INTERNALLY STOWED CABLE FOR EASE OF USE
SEPARATE MODULAR POWER SUPPLY (BELOW)
CABINET I/O CONNECTORS
TS-2 TYPE 1 OR TS-2 TYPE 2 (SHOWN)
LIQUID CRYSTAL DISPLAY
8 LINES OF 40 CHARACTERS
BRIGHT LED BACKLIGHT
2 AMP FUSES
5 MM SLOW BLOW
“
D
”
OPTION FOR EXTRA I/O
ADJUSTABLE MOUNTING FEET (BELOW)

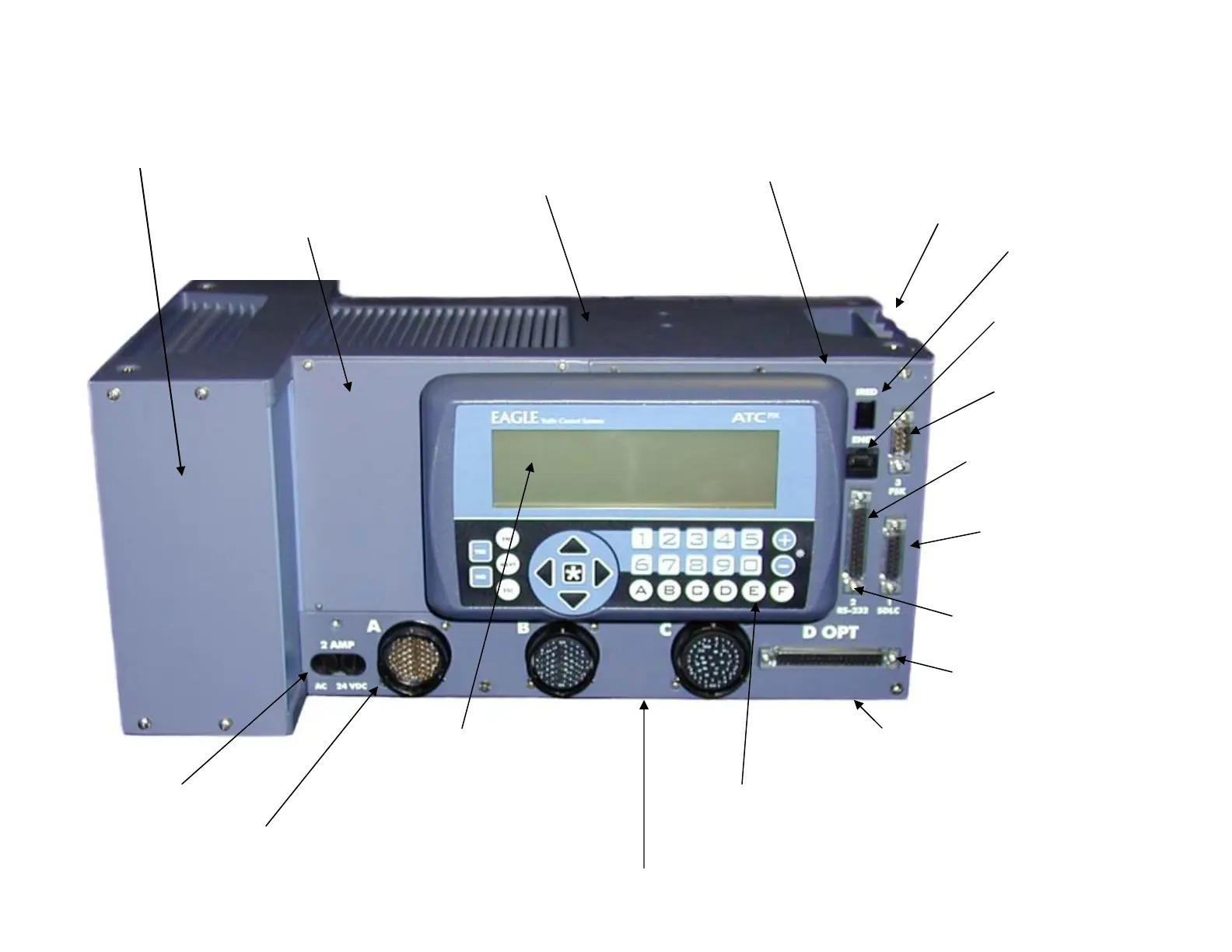

Figure 2: EPAC300-M50 Series Controller Layout
