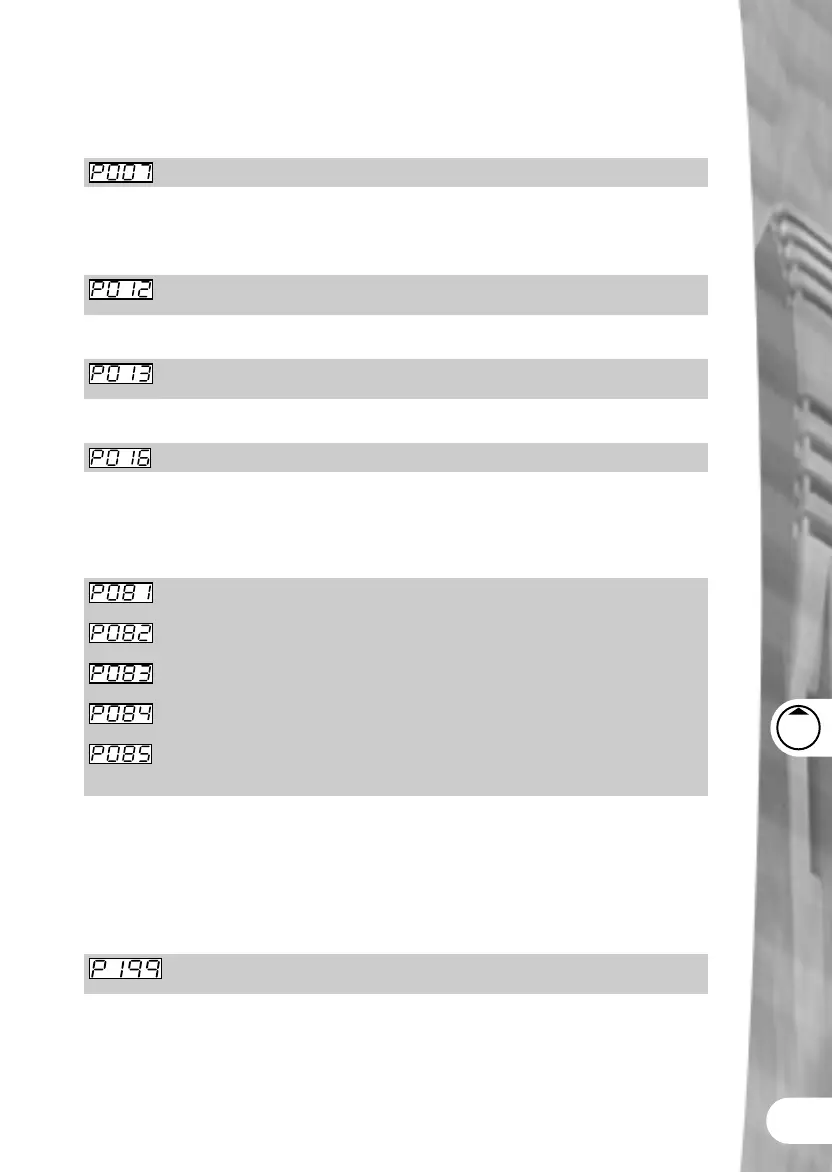

BASIC MODE PARAMETERS..........................................
Parameter Function Range Default Units
Keypad control 0 or 1 1 -
The value of this parameter (0 or 1) configures keypad control.
0 = Control is by digital inputs (P051 to P055 or P356 - refer to Expert mode)
1 = Front panel (keypad) control enabled. However, the level of control enabled from the
keypad is determined by the values of P121 to P124 (refer to Expert mode).
Minimum motor
frequency
0.0- 150.0 0.00 Hz
This value sets the minimum motor frequency and must logically be less then the value of P013 (see
below
Maximum motor
frequency
0.0- 150.0 50,00 (60.00 = North
America)
Hz
This value sets the maximum motor frequency. To maintain stable operation, this value should not
exceed 3x the motor rating plate nominal frequency (see below).
Start on the fly 0 or 2 0
Flying restart
P016=0 Flying restart disabled
P016=2 Flying restart enabled
Allows the inverter to start onto a spinning motor.
Always enter the correct motor nameplate details when enabling this feature.
*
Motor rating plate
nominal frequency
0 - 150.00 50.00
60,00 (North America)
Hz
*
Motor rating plate
nominal speed
0 – 9999 Depends on inverter
rating
RPM
*
Motor rating plate
nominal current
0.1 - 590.0 Depends on inverter
rating
A
*
Motor rating plate
nominal voltage
0 – 1000 Depends on inverter
rating
V
*
Motor rating plate
nominal power
0.12 - 400.0 Depends on inverter
rating
kW
(hp - North
America)
* Parameters P081 to P085 - Notes
- These parameters must be set for the particular motor being controlled by the inverter. You
must use the data provided on the motor’s rating plate.
- Perform an automatic calibration (P088 = 1 - refer to Expert mode) if any of the parameters
P081 to P085 are changed from their factory default settings.
- When the inverter is set-up for North America operation (P101 = 1 - refer to Expert mode), P081
will default to 60 Hz and P085 will indicate in hp (range = 016 to 530).
Access to Expert
mode
0 or 1 - -
This value enables or disables access to Expert mode parameters.
0 = Normal mode parameter values only can be changed.
1 = Expert mode parameter values can be changed in addition to the Normal mode
parameters. It is possible to reset all parameter values (including motor data, P081 to
P085) to their factory default settings using Expert parameter P944=1.
