Siemens P2 - Dimensions; Type 1 Box; Type 3 R;12 Box



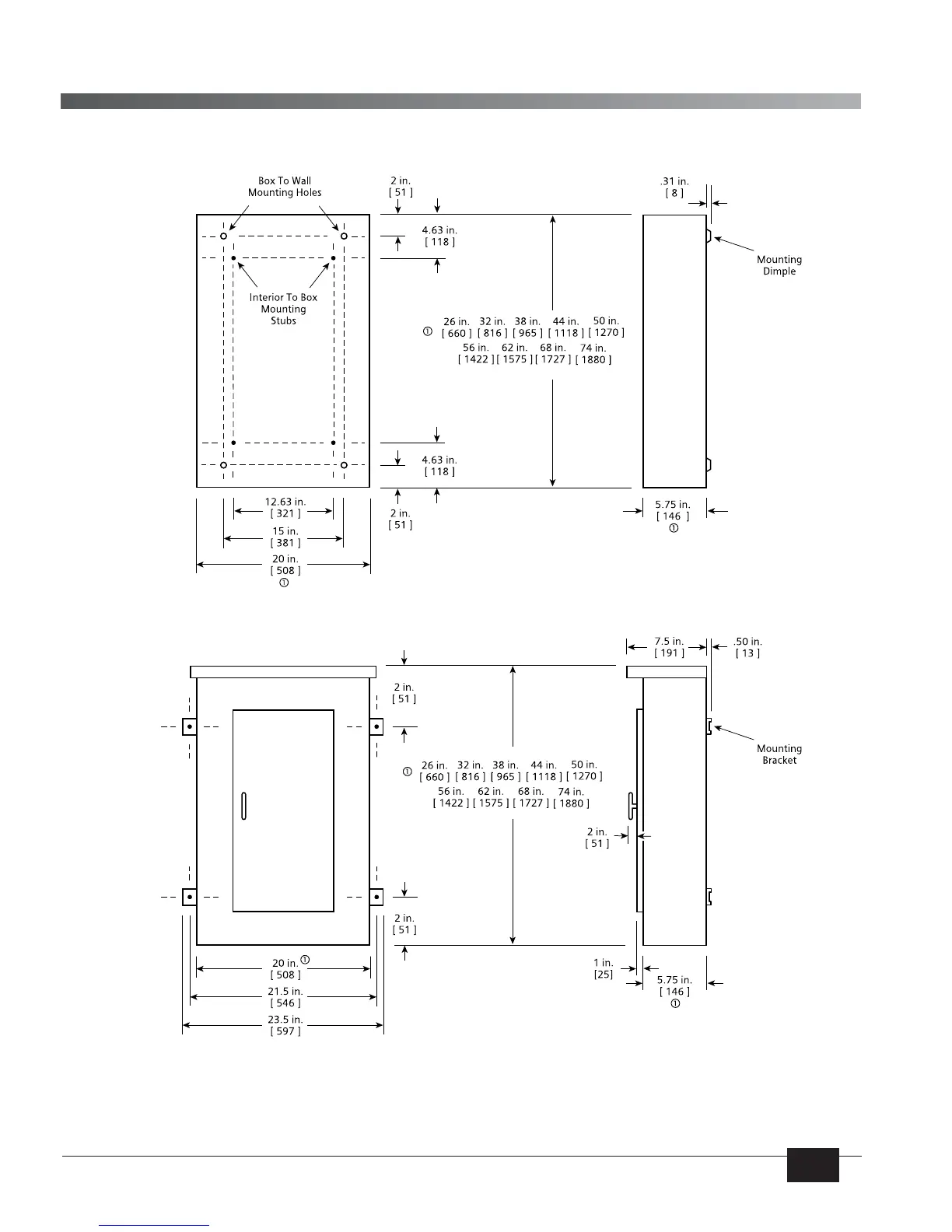

Dimensions

Type 1 Box
Box is symmetrical
Type 3R/12 Box

Dimensions are interior of the box. Add 5/8” to width for
absolute dimension. Add 1/8” to height for absolute dimension.
Dimensions shown in inches and millimeters [ ].
