Siemens PROFINET CP 343-1 User Manual

CP 343-1
Manual, 10/2012, C79000−G8976−C201-07
3
Preface







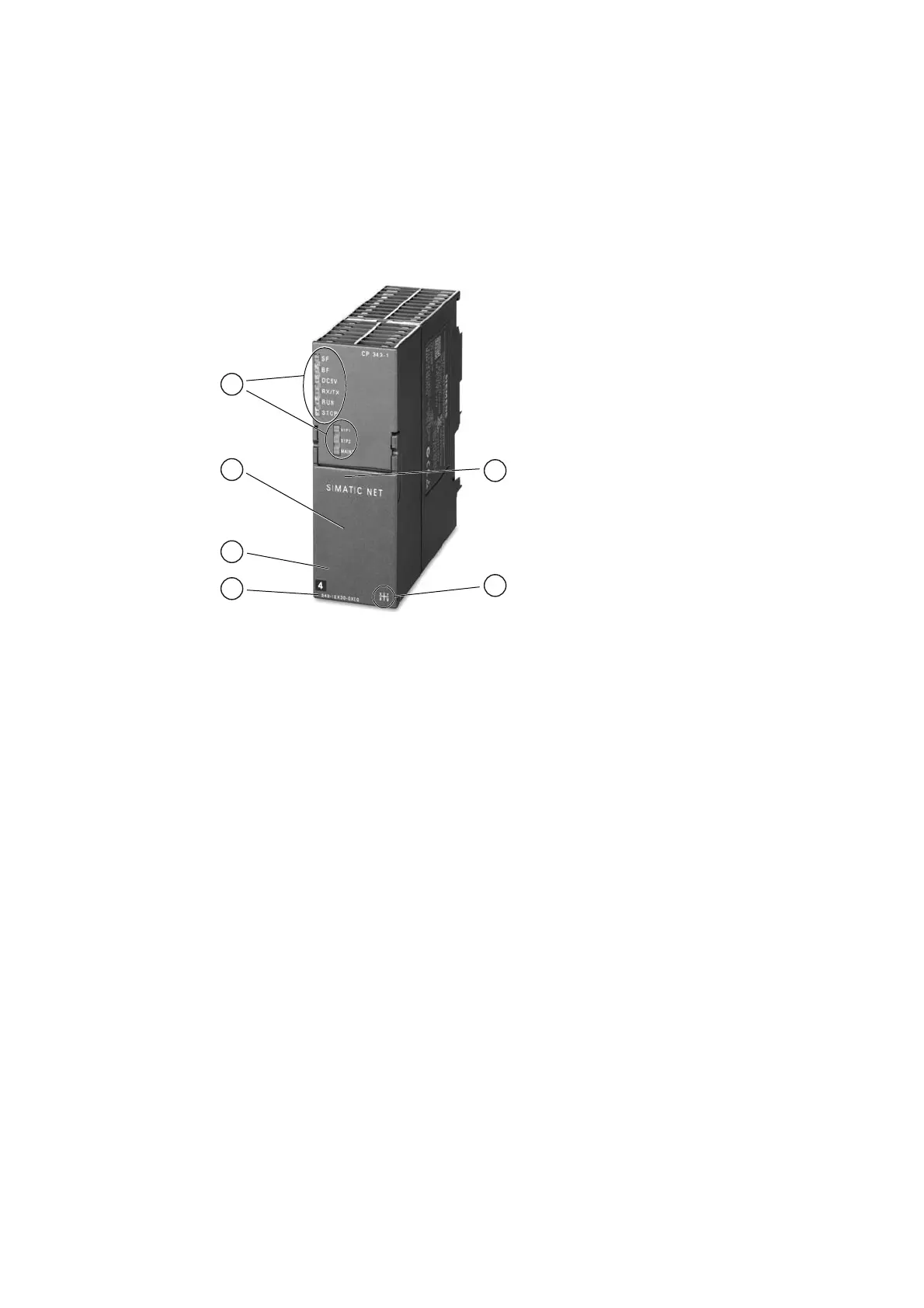

Legend:
① LEDs
② Under the front panel:
PROFINET interface, 2 x 8-pin RJ-45 jack
③ Under the front cover:
- Socket for 24 VDC power supply
- Slider for setting the ground connector
④ Order number
⑤ Under the front panel:
printed text with MAC addresses and firmware version
⑥ X = placeholder for hardware product version
Figure 1 CP 343-1
Validity and product names
This description contains information on the following product:
CP 343−1
Order number 6GK7 343−1EX30−0XE0
Hardware product version 7
Firmware version V3.0
Communications processor for SIMATIC S7−300 / C7−300 and SINUMERIK 840D power
line

Siemens PROFINET CP 343-1 Specifications

General

Product Type Designation	CP 343-1
Supply Voltage	24 V DC
Protection Class	IP20
Transmission Rate	10/100 Mbit/s
Number of Ports	1
Protocols	PROFINET
Current Consumption	200 mA
Operating Temperature	0 to 60 °C
