Siemens PXG3 Series User Manual

4 / 10
Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10
Building Technologies 2017-10-16

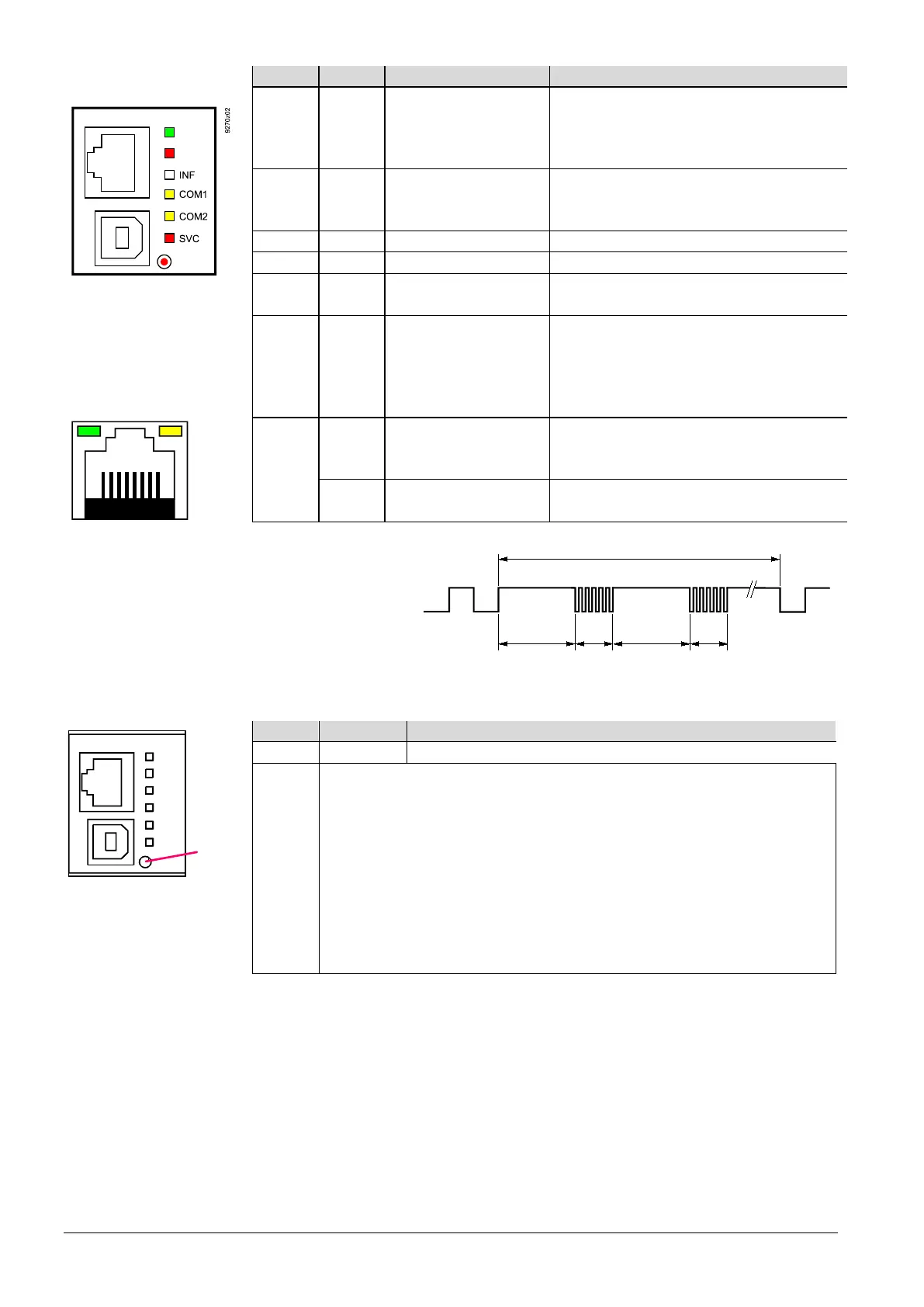

LEDs
RUN
FLT
HMI/Tool
LED
Color
Activity
Function
RUN Green • Continuously ON
• Continuously OFF
• Flashing
• Device ready.
• At least one internal power supply out
of range.
• Start-up of device.
FLT
Red
• Continuously OFF
• Continuously ON
• Flashing
• OK
• HW fault or program fault.
• Incorrect or corrupt FW.
INF
--
--
(Not used)
COM1
Yellow
• Flashing
• Sends MS/TP packages.
COM2
Yellow • Flashing • Sends LONWORKS packages
(PXG3.L only).
SVC Red • Continuously OFF
• Continuously ON
• Flashing
• Flashing per wink
command *)
• Configured.
• Defective Hardware.
• Unconfigured.
• Physical identification of the router.
9270Z05
8 7 6 5 4 3 2 1
Ethernet
1 / 2
Green • Continuously ON
• Continuously OFF
• Flashing
• Link active
• Link inactive
• Network activity
Yellow • Continuously ON
•
Continuously OFF
• Link 100 Mbps
•
Link 10 Mbps
*) Wink command
pattern:
2s
1s
21s
5 Hz 5 Hz
9222z02
2s
1s
1
9270z03
Button
Press
Description
1
• Short
Physical identification on the network (Ethernet).
Proceed as follows to reset the device to a factory state:
1. Power off device.
2. Power on device.
3. Wait for all LEDs to light up and turn off again,
then push the SVC button.
4. Keep SVC button pressed until all LEDs light up, then release.
Up to Desigo V6_SP (FW V01.15.15.144): Keep SVC button
pressed until the green RUN LED flashes, then release.
5. Wait for device to fully start up unconfigured
(RUN LED on, SVC LED flashes).
Any device passwords and other settings are lost.
Service button
