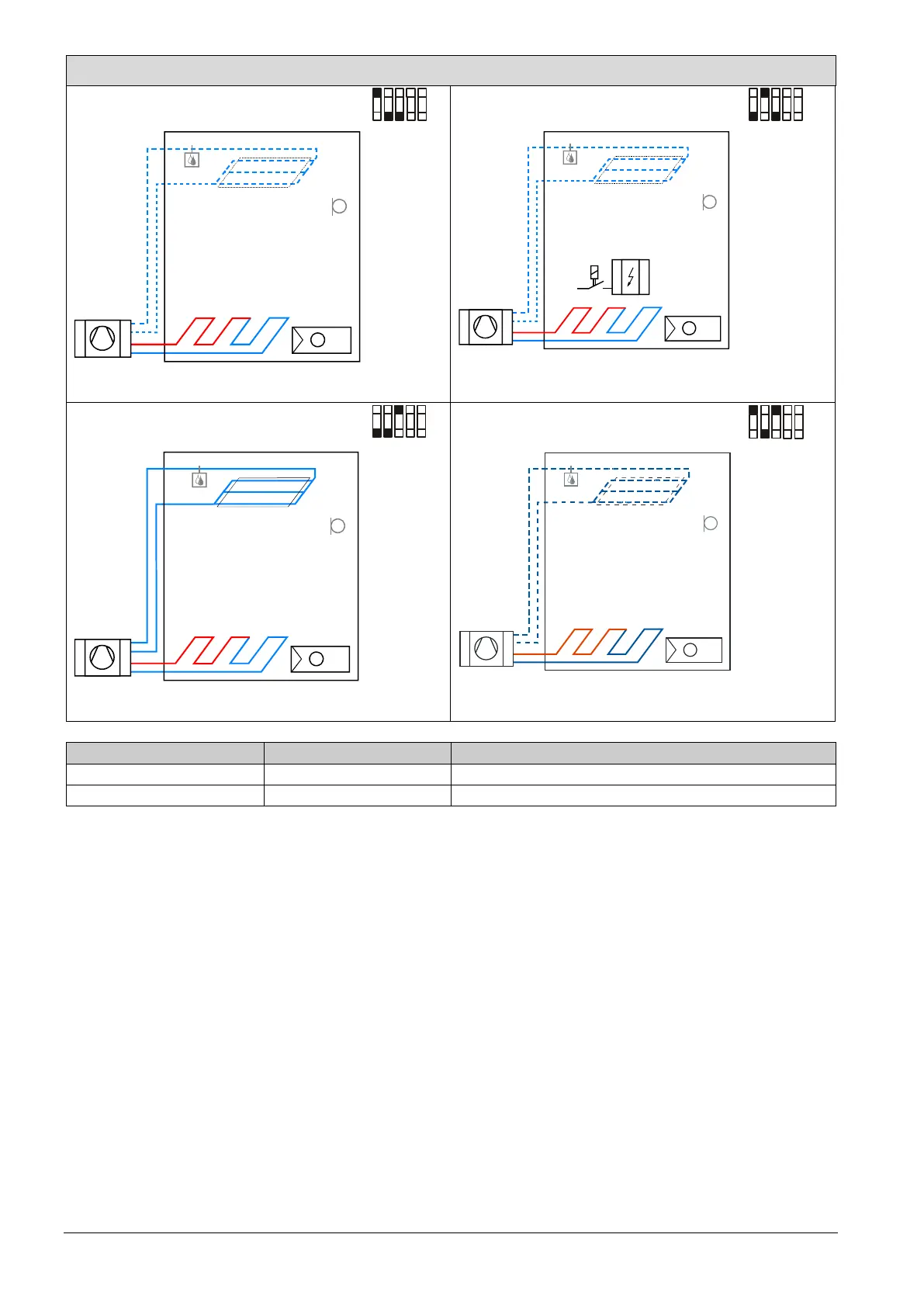

Siemens RDG1... Wall-mounted room thermostats with LCD CE1N3181en
Building Technologies 2017-11-20
Applications, DIP setting, Control outputs
∂ Heated or cooled with compressors
1 2 3 4 5
ON
OFF
∂ Heated or cooled with compressors
with electric heater
1 2 3 4 5
ON
OFF
3181S31
N1
T
B1
T
D3
3181S32
N1
T
YE
B1
T
D3
Using RDG110../RDG160T.. Using RDG110../RDG160T..
∂ Heated and cooled with
compressors
1 2 3 4 5
ON
OFF
∂ 2-stage heated or cooled
with compressors
1 2 3 4 5
ON
OFF
3181S35
N1
T
B1
T
D3
3
1
8
1
S
3
6
N1
T
B1
T
D3
2
Using RDG110../RDG160T.. Using RDG110../RDG160T..
Product no. Control outputs Fan
RDG110/RDG110U On/Off (SPDT) Disabled, 3-speed, 1-speed
RDG160T/RDG160TU On/Off, DC 0...10 V Disabled, 3-speed, 1-speed, DC 0...10 V
Legend YHC.. Heating/cooling valve actuator M1 1-speed or 3-speed fan
YH Heating valve actuator
YC Cooling valve actuator
B1 Return air temperature sensor or external room
temperature sensor (optional)
YE Electric heater B2 Changeover sensor (optional)
