Siemens RUGGEDCOM RSG2200

Chapter 2
Installing Device
RUGGEDCOM RSG2200
Installation Guide
12 Wiring Examples
Section 2.2.3
Wiring Examples

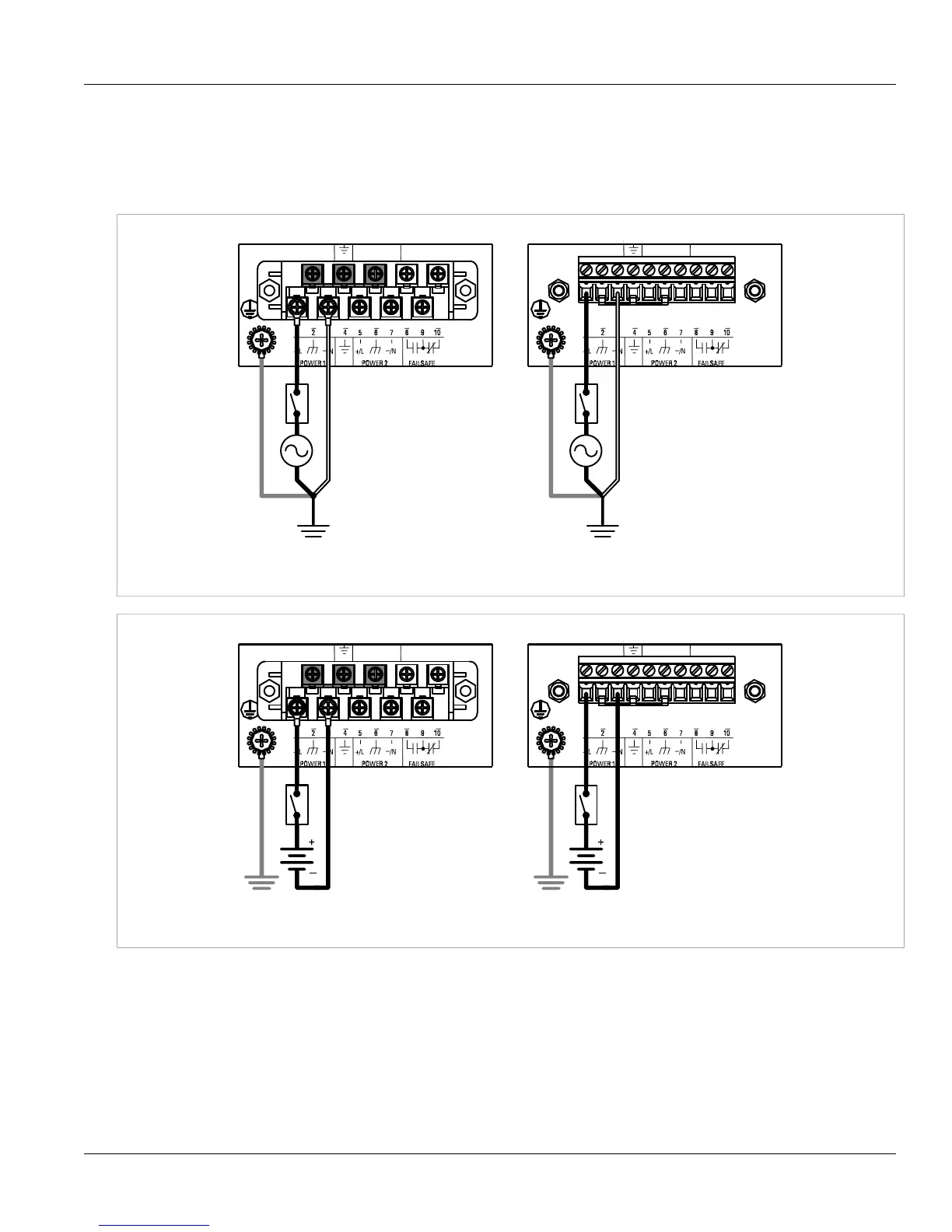

The following illustrate how to connect power to single and dual power supplies.
Figure 7: Single AC Power Supply
Figure 8: Single DC Power Supply
