Installing the Device
2.5.2Connecting Low DC Power
1. Connect the power supply terminal block to the device.
4
1
3
2
1
European-style (Euroblock) Terminal Block
2
Positive (+) Terminal
3
Negative (-) Terminal
4
Ground Terminal

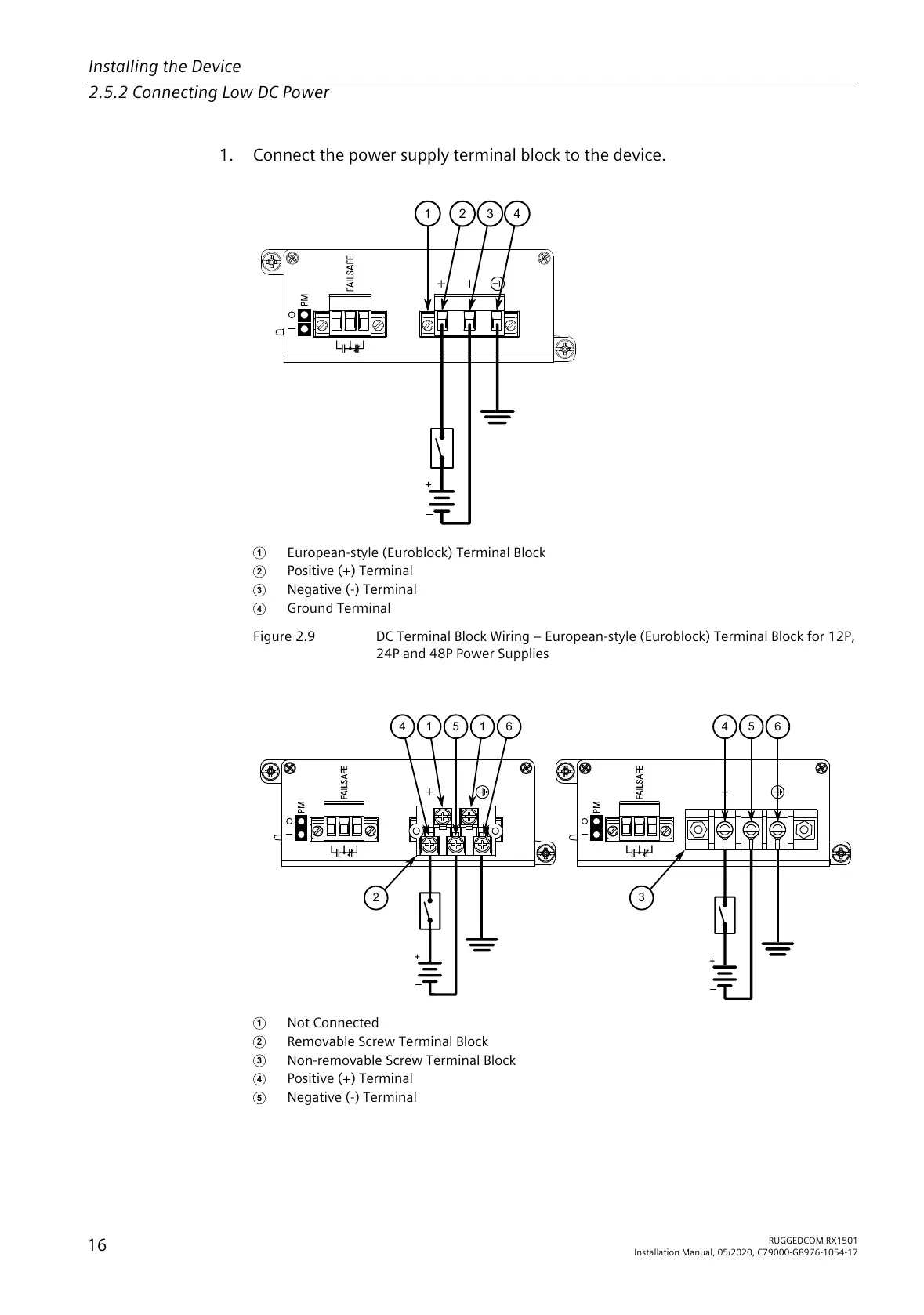

Figure2.9 DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for 12P,
24P and 48P Power Supplies
4
5
6
5
1
6
1
4
2
3
1
Not Connected
2
Removable Screw Terminal Block
3
Non-removable Screw Terminal Block
4
Positive (+) Terminal
5
Negative (-) Terminal
16
RUGGEDCOM RX1501
Installation Manual, 05/2020, C79000-G8976-1054-17
