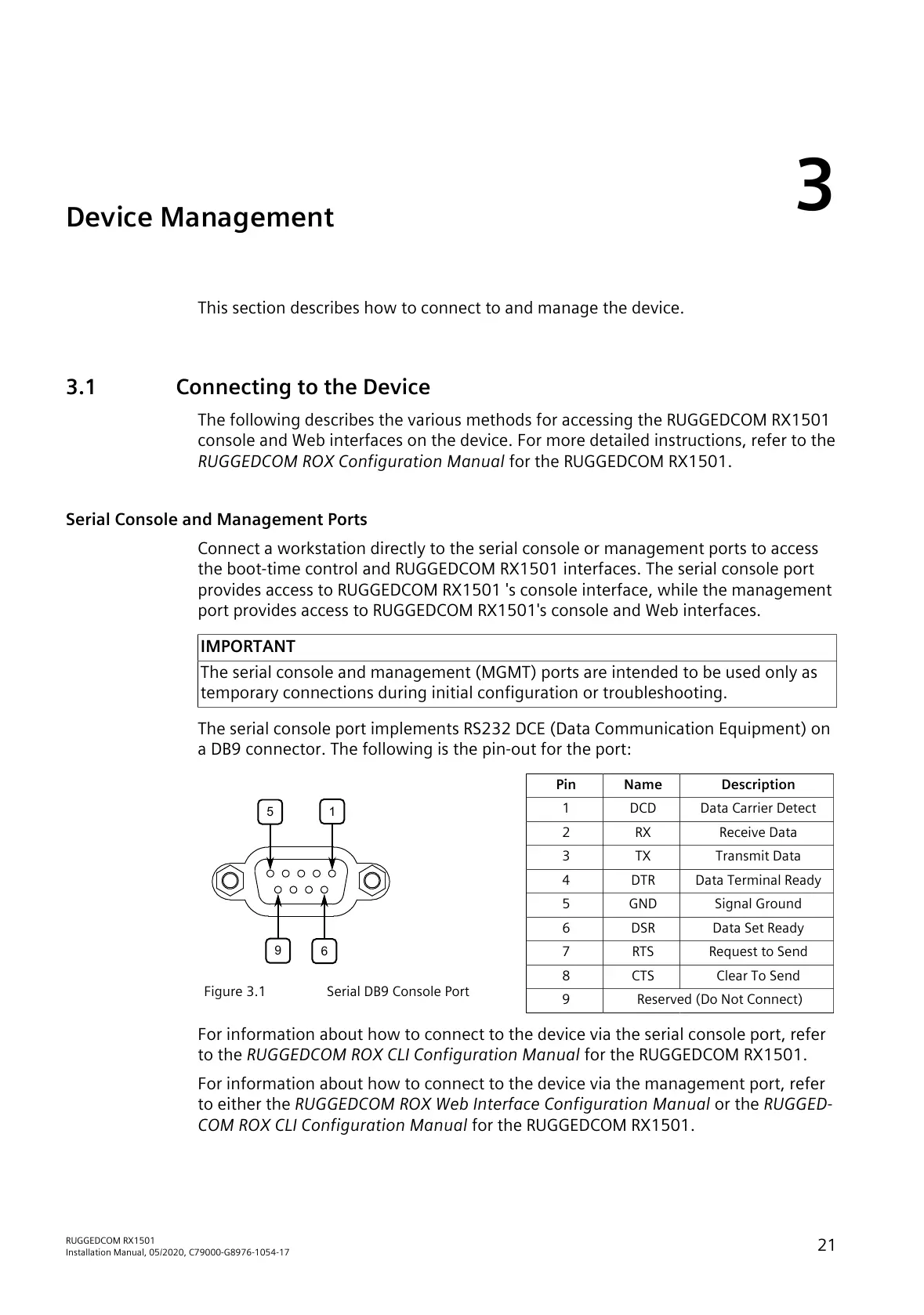

Device Management
3
This section describes how to connect to and manage the device.
3.1 Connecting to the Device
The following describes the various methods for accessing the RUGGEDCOM RX1501
console and Web interfaces on the device. For more detailed instructions, refer to the
RUGGEDCOM ROX Configuration Manual for the RUGGEDCOM RX1501.
Serial Console and Management Ports
Connect a workstation directly to the serial console or management ports to access
the boot-time control and RUGGEDCOM RX1501 interfaces. The serial console port
provides access to RUGGEDCOM RX1501 's console interface, while the management
port provides access to RUGGEDCOM RX1501's console and Web interfaces.
IMPORTANT
The serial console and management (MGMT) ports are intended to be used only as
temporary connections during initial configuration or troubleshooting.
The serial console port implements RS232 DCE (Data Communication Equipment) on
a DB9 connector. The following is the pin-out for the port:
Figure3.1 Serial DB9 Console Port
Pin Name Description
1 DCD Data Carrier Detect
2 RX Receive Data
3 TX Transmit Data
4 DTR Data Terminal Ready
5 GND Signal Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear To Send
9 Reserved (Do Not Connect)
For information about how to connect to the device via the serial console port, refer
to the RUGGEDCOM ROX CLI Configuration Manual for the RUGGEDCOM RX1501.
For information about how to connect to the device via the management port, refer
to either the RUGGEDCOM ROX Web Interface Configuration Manual or the RUGGED-
COM ROX CLI Configuration Manual for the RUGGEDCOM RX1501.
RUGGEDCOM RX1501
Installation Manual, 05/2020, C79000-G8976-1054-17
21
