Modules
4
The RUGGEDCOM RX1501 features slots for up to four field-replaceable line modules,
which can be used to expand and customize the capabilities of the device to suit spe-
cific applications.
A variety of modules are available, each featuring a specific type of communica-
tion port: copper Ethernet, fiber optic Ethernet, SFP, WAN, cellular modem and DDS.
The RUGGEDCOM APE (Application Processing Engine) line module, a utility-grade
computing platform for running third-party applications directly from within the
RUGGEDCOM RX1501, is also available.
Use the RUGGEDCOM ROX software to determine which ports are equipped on the
device. For more information, refer to the RUGGEDCOM ROX Configuration Manual
for the device.
4.1 Requirements and Restrictions
Before installing modules in the device, consider the following restrictions and re-
quirements.
Module Support
• Slots 1 and 2 are reserved for 2-port copper and fiber Ethernet modules only
• Only one T1/E1 WAN module and up to two DDS modules are supported
• Up to two RUGGEDCOM APE modules are supported

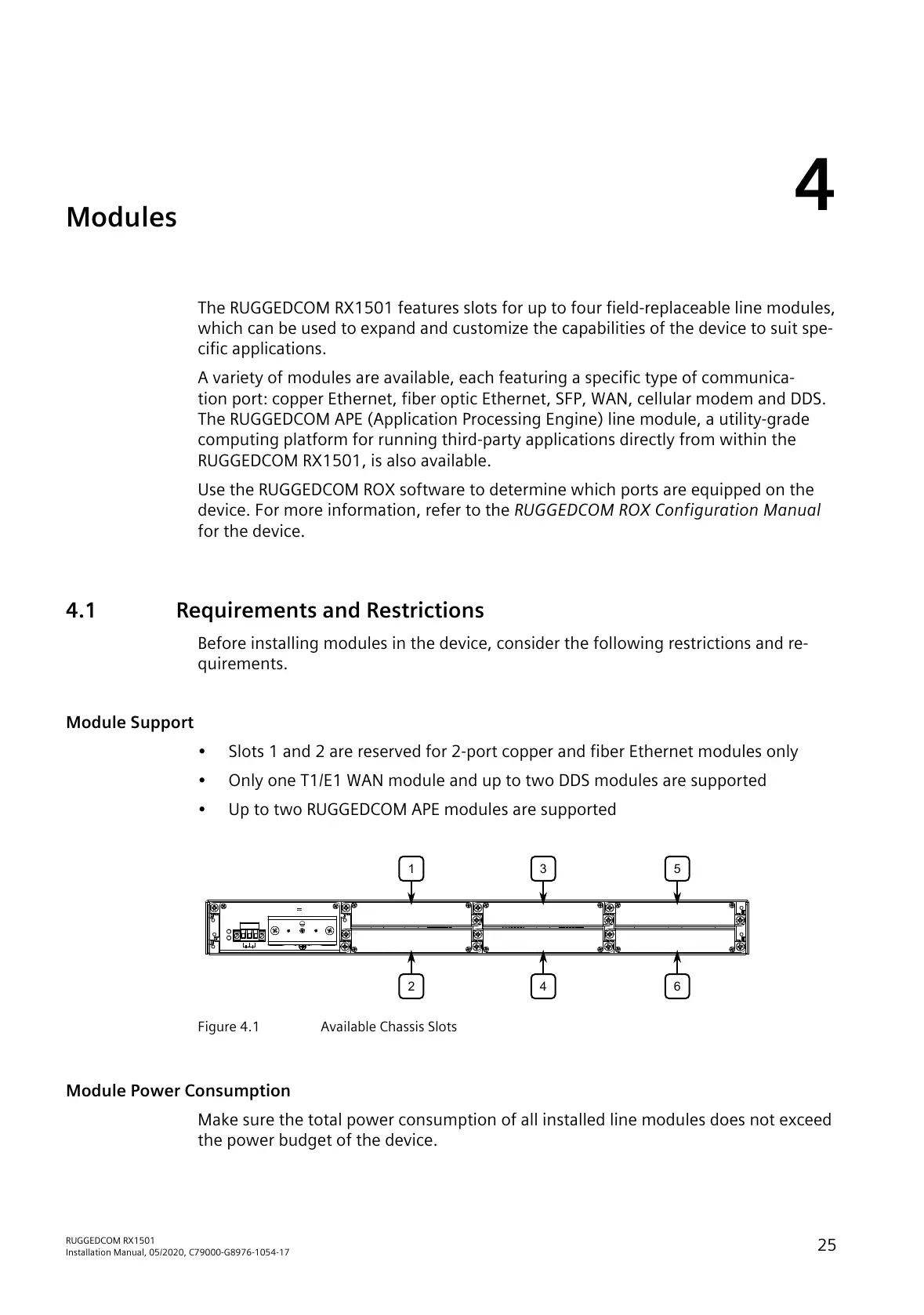

Figure4.1 Available Chassis Slots
Module Power Consumption
Make sure the total power consumption of all installed line modules does not exceed
the power budget of the device.
RUGGEDCOM RX1501
Installation Manual, 05/2020, C79000-G8976-1054-17
