Device Management
3.3Accessing the CompactFlash Card
Removing the CF card
To remove the CF card from the device, do the following:
1. Make sure the device is powered down.
2. Remove the CF card access panel.
3
2
1
1
Ejector Button
2
CompactFlash Card
3
Access Panel

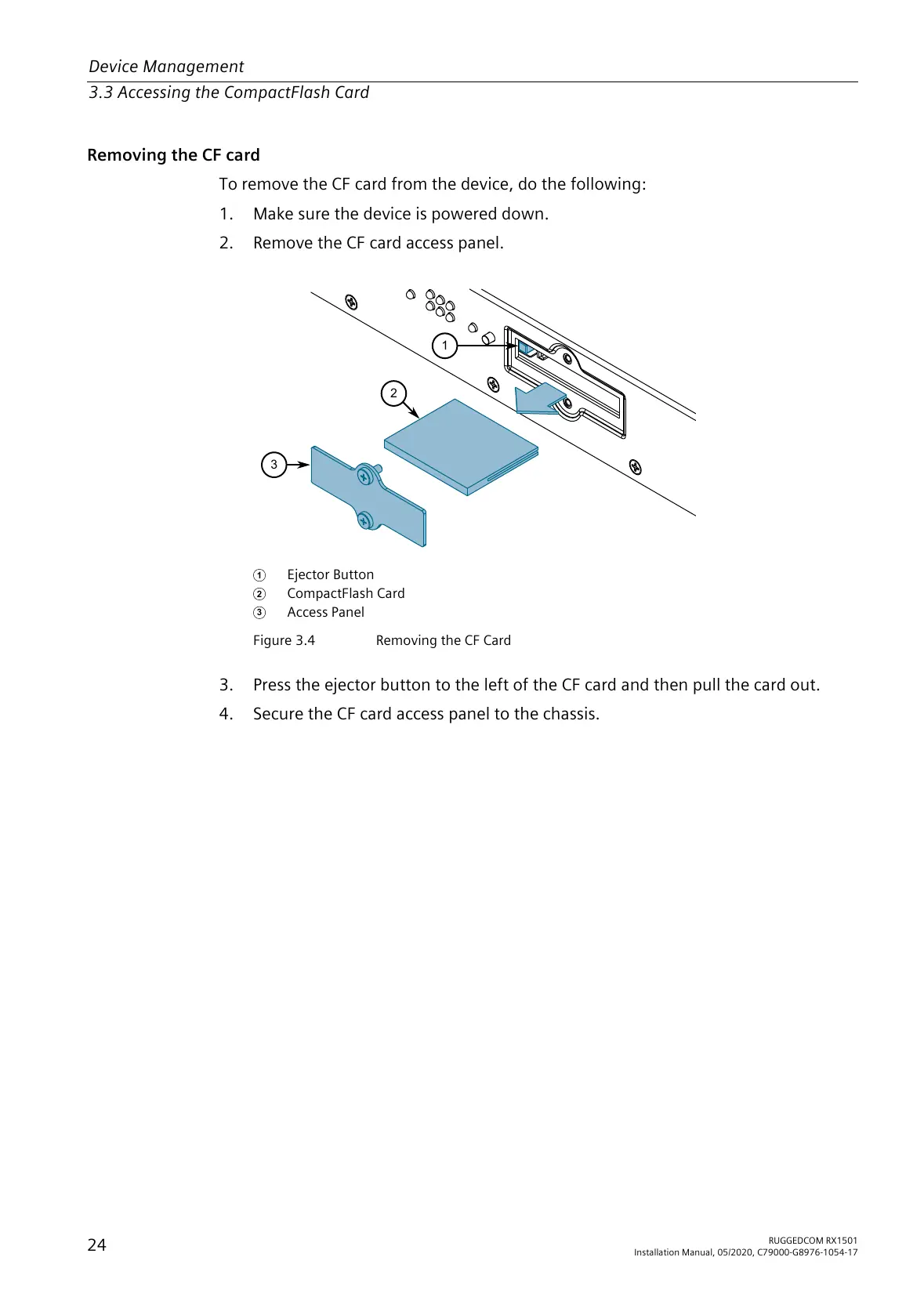

Figure3.4 Removing the CF Card
3. Press the ejector button to the left of the CF card and then pull the card out.
4. Secure the CF card access panel to the chassis.
24
RUGGEDCOM RX1501
Installation Manual, 05/2020, C79000-G8976-1054-17
