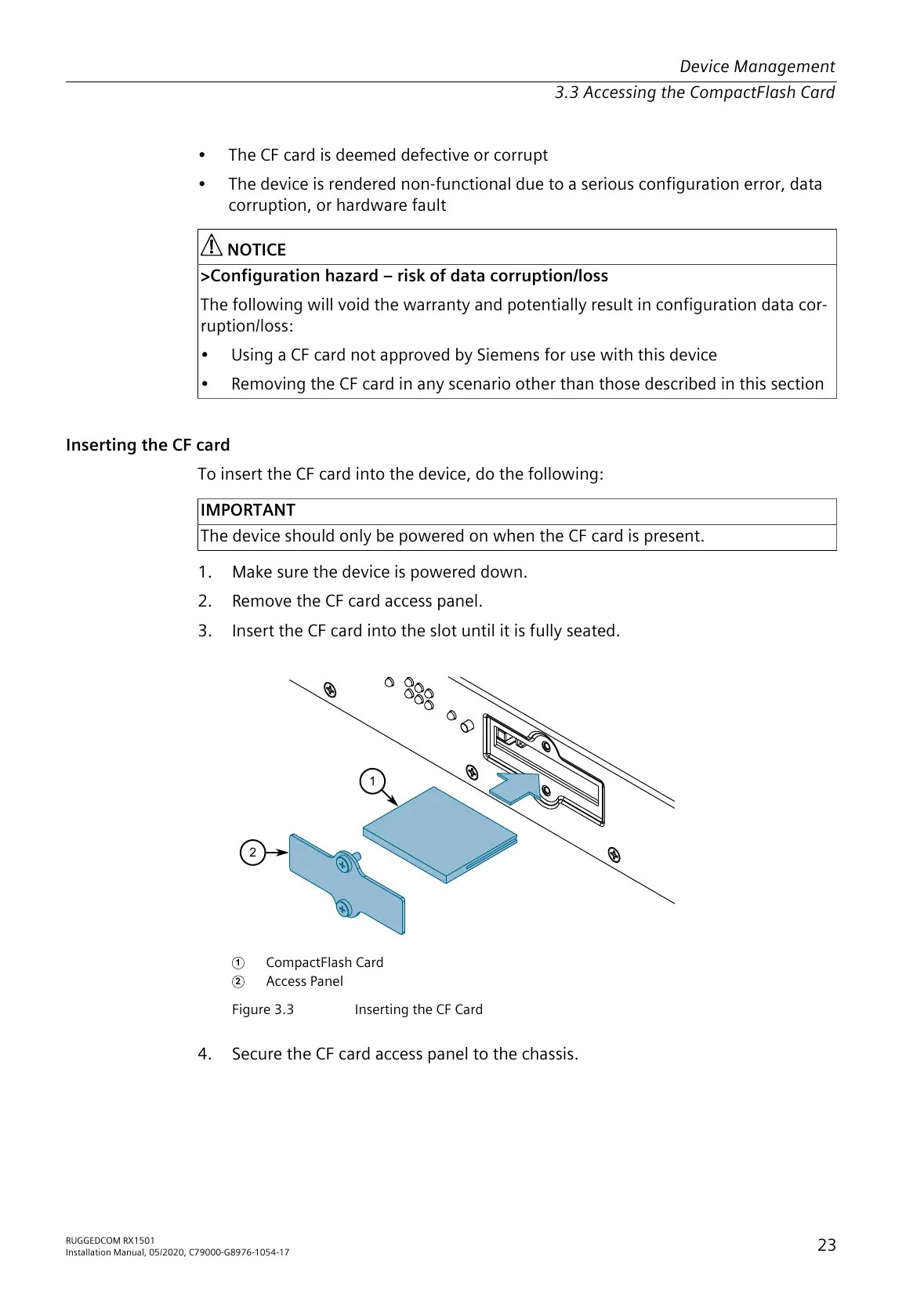

Device Management
3.3Accessing the CompactFlash Card
• The CF card is deemed defective or corrupt
• The device is rendered non-functional due to a serious configuration error, data
corruption, or hardware fault
NOTICE
>Configuration hazard – risk of data corruption/loss
The following will void the warranty and potentially result in configuration data cor-
ruption/loss:
• Using a CF card not approved by Siemens for use with this device
• Removing the CF card in any scenario other than those described in this section
Inserting the CF card
To insert the CF card into the device, do the following:
IMPORTANT
The device should only be powered on when the CF card is present.
1. Make sure the device is powered down.
2. Remove the CF card access panel.
3. Insert the CF card into the slot until it is fully seated.
2
1
1
CompactFlash Card
2
Access Panel
Figure3.3 Inserting the CF Card
4. Secure the CF card access panel to the chassis.
RUGGEDCOM RX1501
Installation Manual, 05/2020, C79000-G8976-1054-17
23
