Technical Specifications
5.5Dimension Drawings
11.7
21.1
28.7
51.1
161.0
212.1
4.7
6.35
463.8
31.8

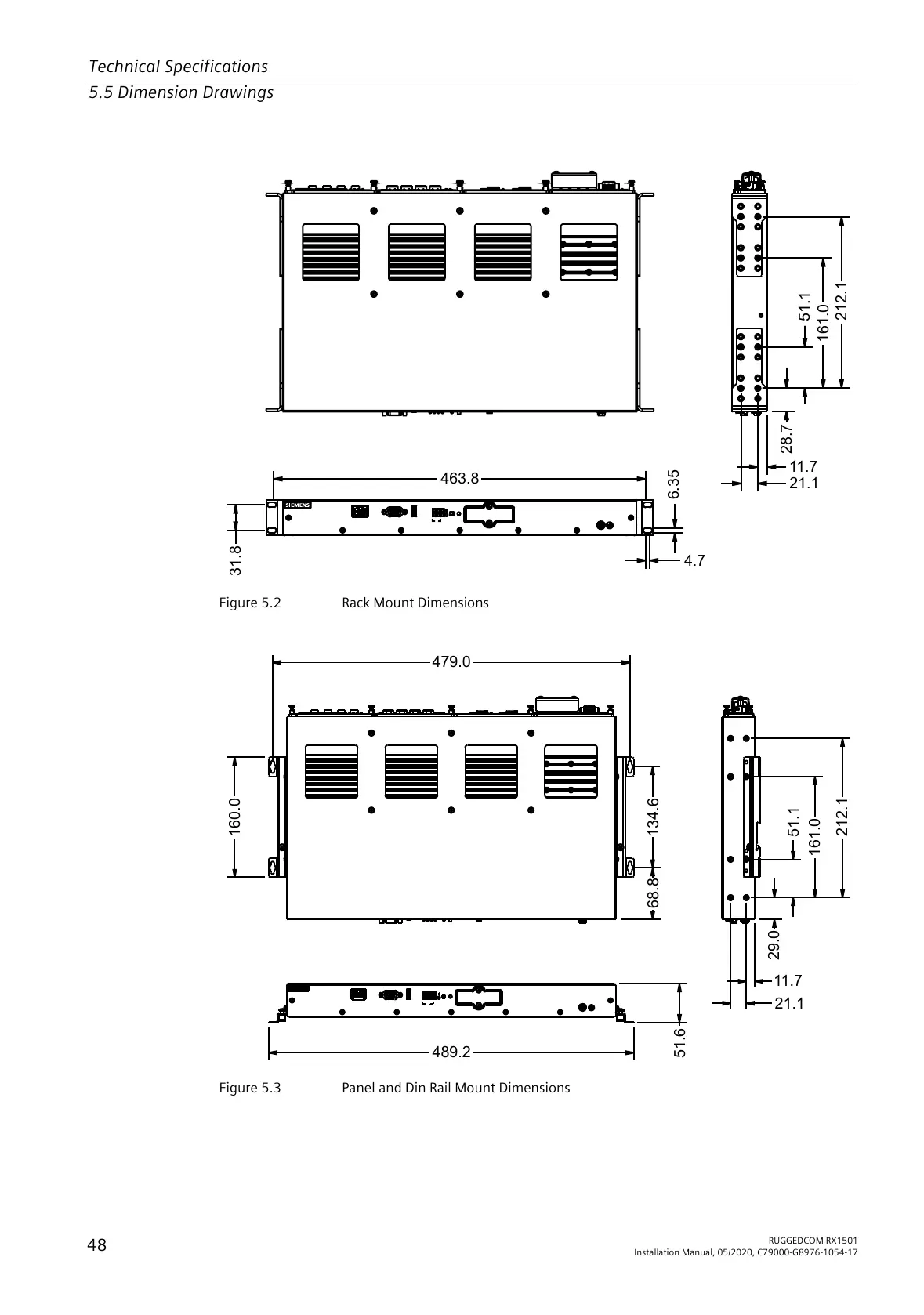

Figure5.2 Rack Mount Dimensions
160.0
489.2
51.6
479.0
134.6
68.8
21.1
11.7
29.0
51.1
161.0
212.1
Figure5.3 Panel and Din Rail Mount Dimensions
48
RUGGEDCOM RX1501
Installation Manual, 05/2020, C79000-G8976-1054-17
