Siemens RUGGEDCOM WIN5214 - Dimension Drawings

Chapter 4
Technical Specifications
RUGGEDCOM WIN5214
Installation Guide
30 Dimension Drawings
Dielectric Strength to Shield 700 V/minute
Minimum Bend Radius 70 mm (2.8 in)
Operating Temperature Range -40 to 70 °C (-40 to 158 °F)
Section4.6
Dimension Drawings
NOTE
All dimensions are in millimeters, unless otherwise stated.
305.0
305.0
11.0
154.0
325.8
183.0
38.7
63.8
53.7

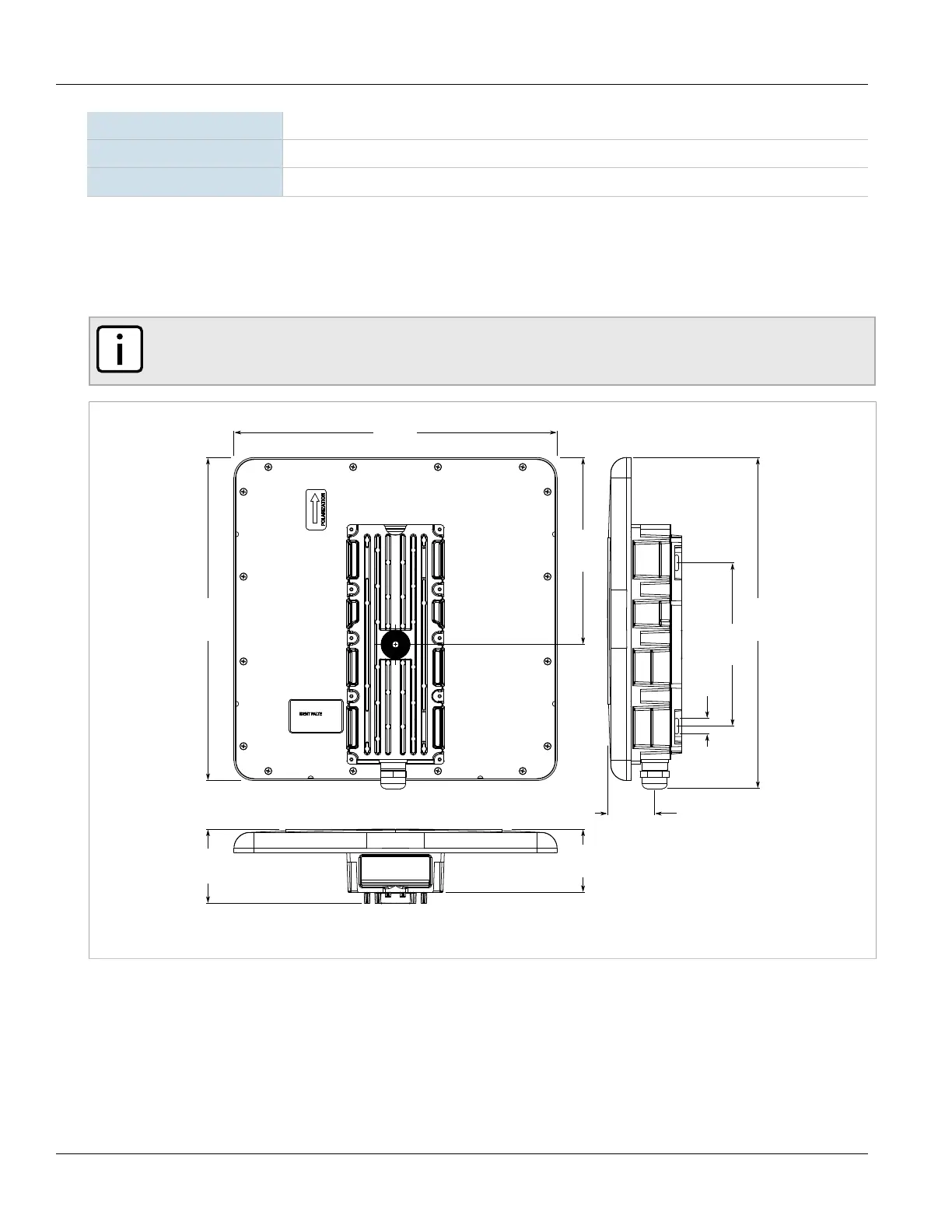

Figure17:Overall Dimensions
