Connecting SCALANCE M-800 to WAN
1.2 Connecting M81x to ADSL
SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
37
Configuring access parameters
Requirement
● The services are enabled, e.g. Internet.
● The following access data is known from your DSL provider:
– User name and password for ADSL access
– VCI / VPI
– Encapsulation

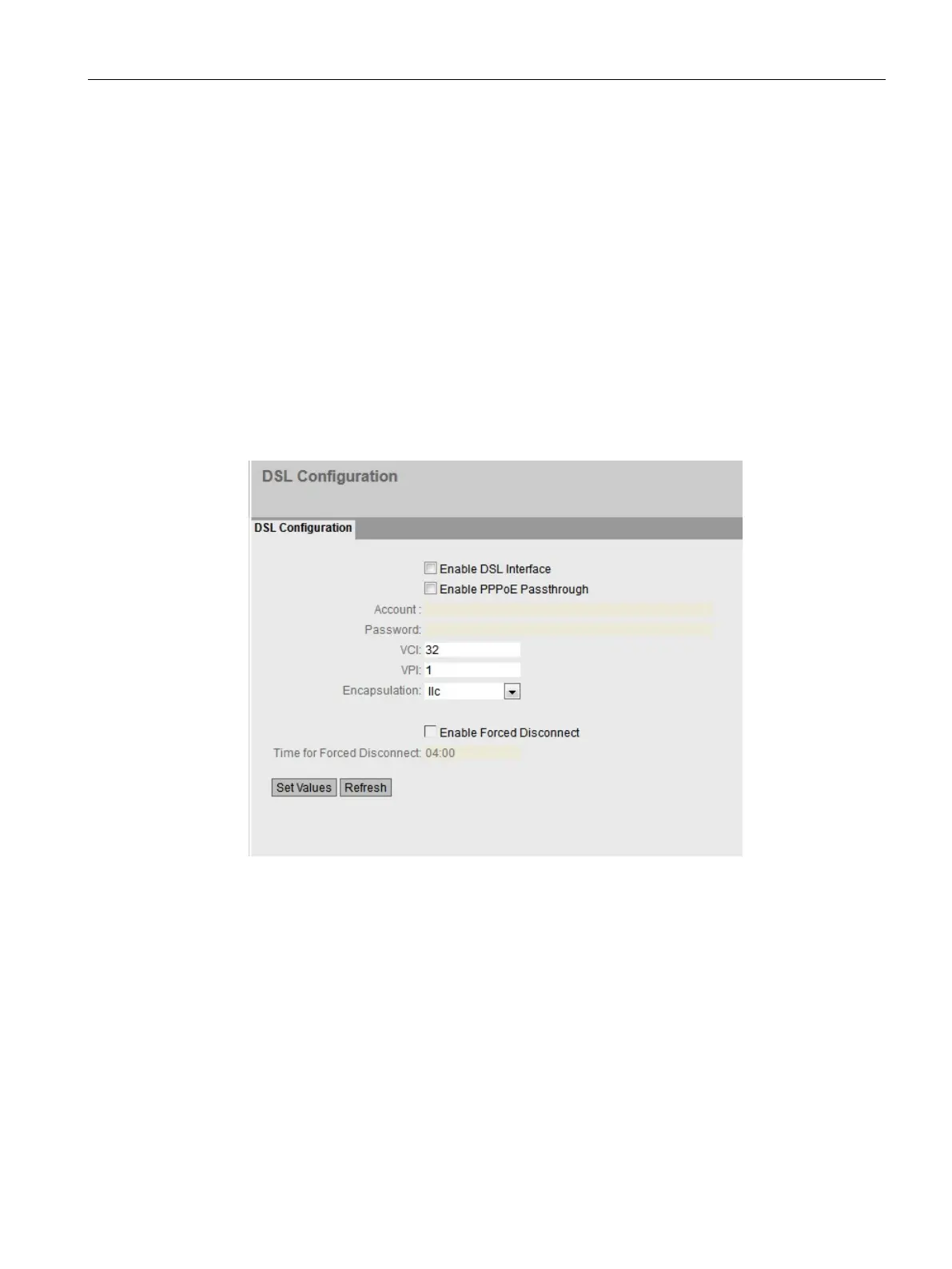

1. Click "Interfaces" > "DSL" in the navigation panel
2. Select Enable DSL Interface".
3. Disable "Enable PPPoE Passthrough" to set up the access data for the SCALANCE
M81x. The connected devices can use this DSL connection.
If "Enable PPPoE Passthrough" is selected, the access data cannot be configured. In this
case the SCALANCE M81x is used as a modem. Each individual connected device
sends its access data to the SCALANCE M81x and establishes its own Internet
connection.
4. Enter the user name and the password for the ADSL access.
5. Enter the settings for VCI / VPI. You will receive the settings from your DSL provider.
6. In "Encapsulation" select the required protocol.
7. Click "Set Values".
