Installation and removal
5.5 Installing on a DIN rail / removing
SCALANCE W774-1 / W734-1
44 Operating Instructions, 03/2022, C79000-G8976-C325-15

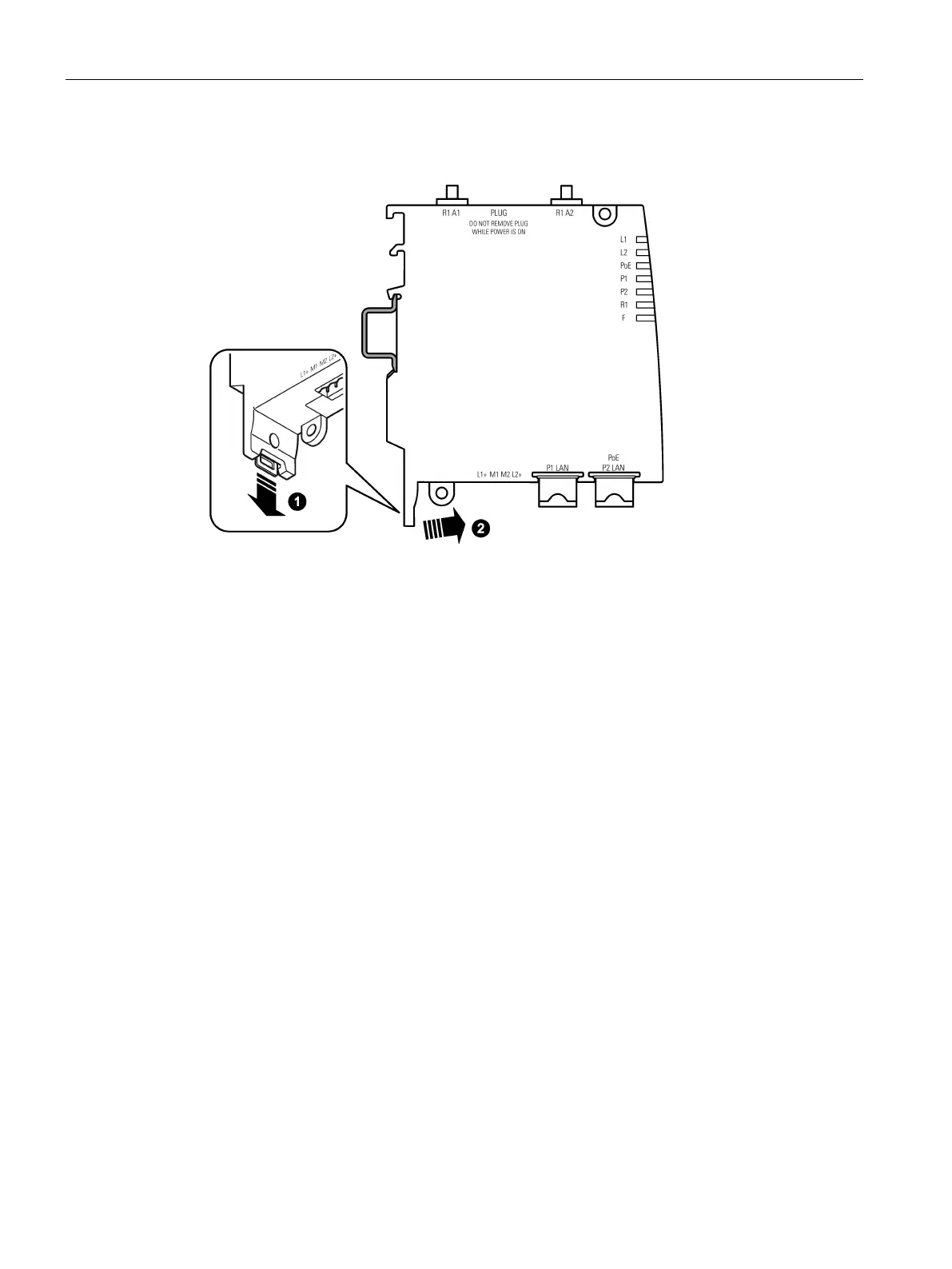

Procedure when removing
Follow the steps below to remove the SCALANCE W774/W734 from a DIN rail:
1. Turn off the power to the device.
2. Disconnect all connected cables.
3. Pull the DIN rail slider down with a screwdriver.
4. Tilt the SCALANCE W774/W734 forward and remove the device from the DIN rail.
