Siemens SCALANCE W734-1 RJ-45

Connection
6.3 Ethernet
SCALANCE W774-1 / W734-1
Operating Instructions, 03/2022, C79000-G8976-C325-15
53

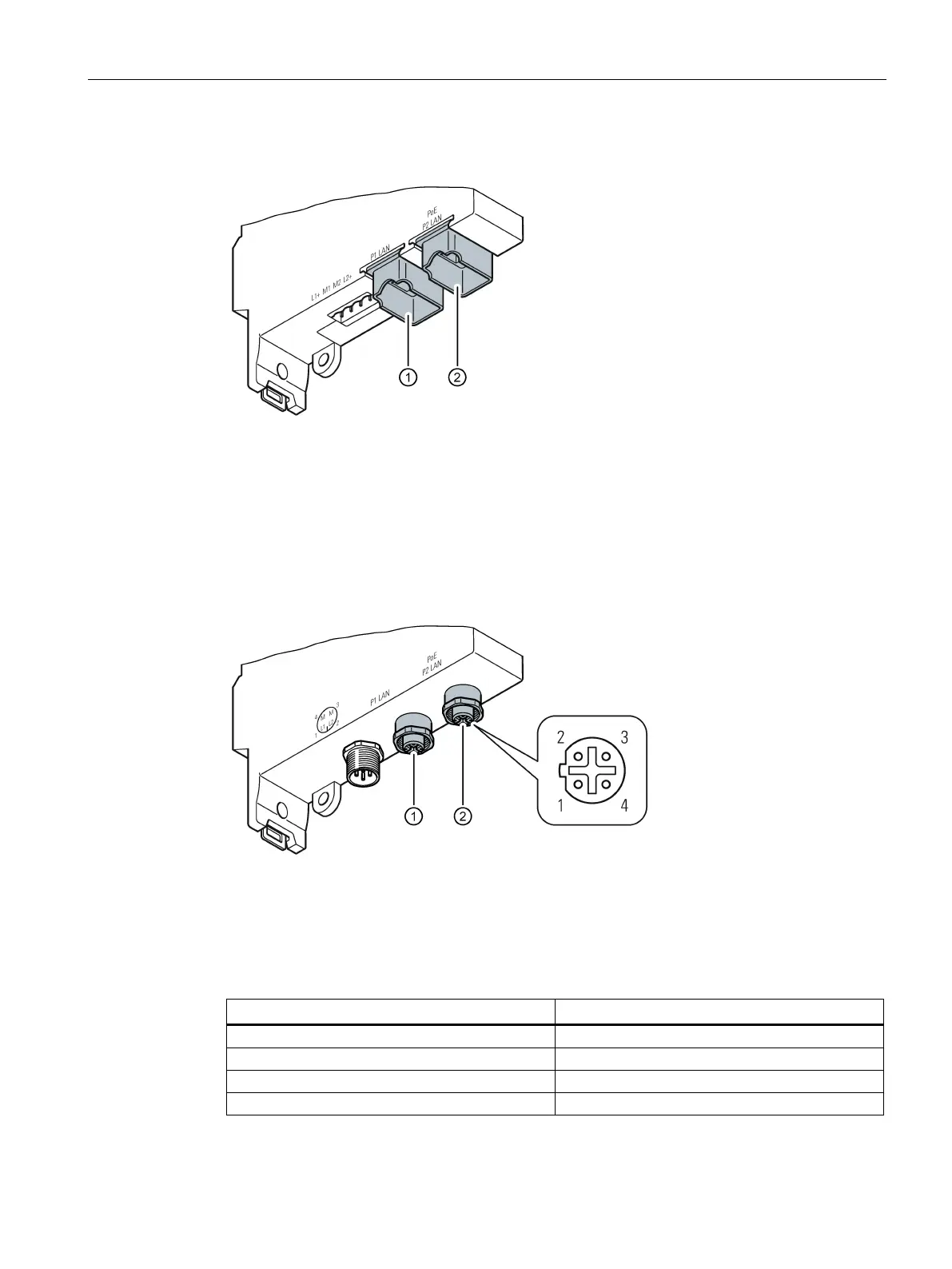

SCALANCE W774/W734 RJ-45
①
Ethernet interface P1
②
Ethernet interface P2
The power can also be supplied via this interface (Power over Ethernet).
SCALANCE W774/W734 M12 EEC
①
Ethernet interface P1
②
Ethernet interface P2
The power can also be supplied via this interface (Power over Ethernet).
The four-pin connecting socket has the following pin assignment:
Pin
Assignment
1
TX
2
RX
3
TX
4
RX
