Description of the device

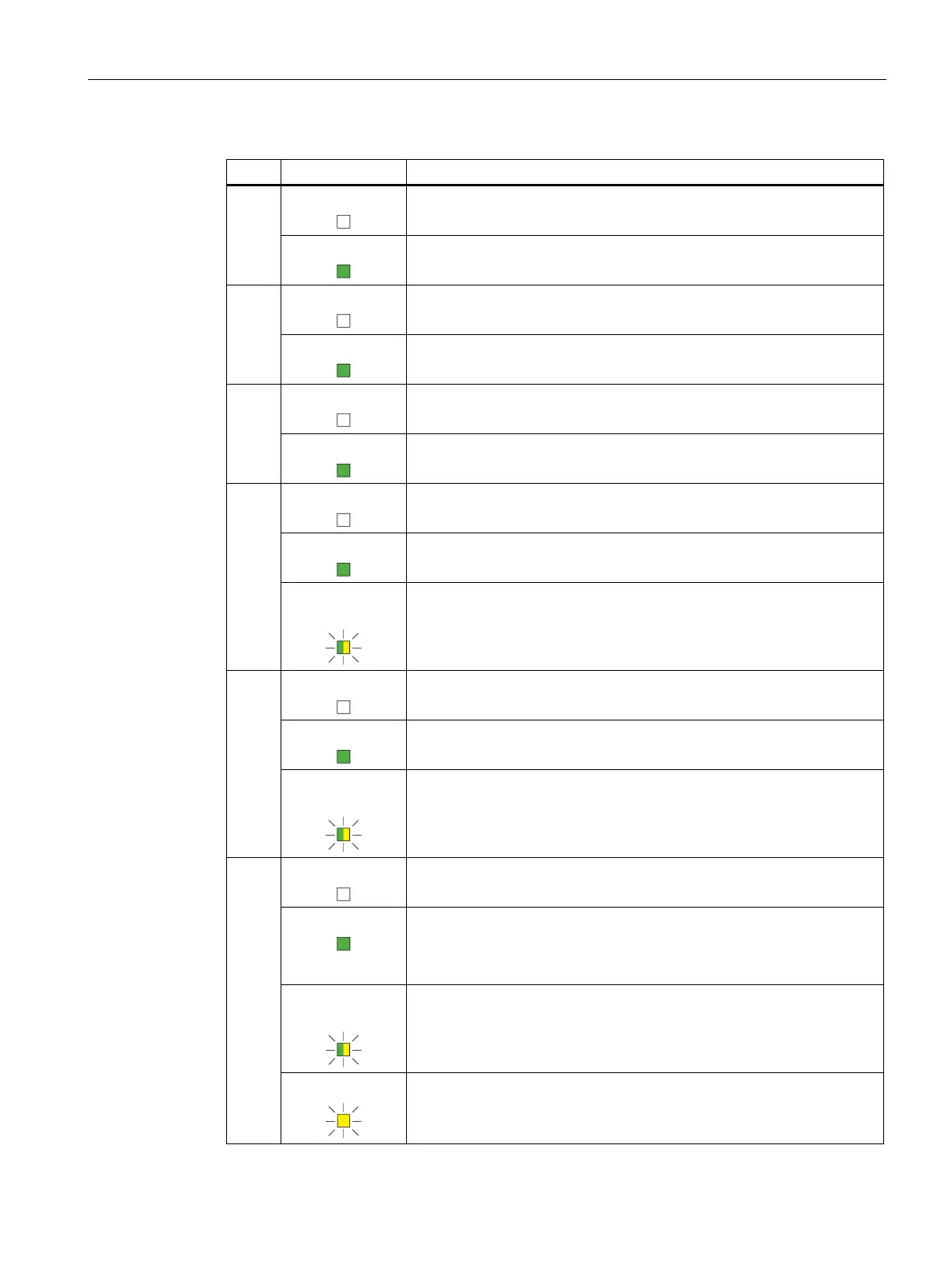

4.5 LED display
SCALANCE W778-1 / W738-1
Operating Instructions, 03/2022, C79000-G8976-C450-07
29
Power supply L1 is applied.
Power supply L2 is applied.
The device is not supplied using PoE.
The device is supplied using PoE.
There is no connection over the Ethernet port P1.
There is a connection over the Ethernet port P1 (link).
and yellow
Data transfer over the Ethernet interface P1.
There is no connection over the Ethernet port P2.
There is a connection over the Ethernet port P2 (link).
and yellow
Data transfer over the Ethernet interface P2.
The WLAN interface 1 is deactivated.
The WLAN interface 1 is initialized and ready for operation.
Client mode:
There is a connection over the WLAN interface 1.
and yellow
Data transfer via the WLAN interface 1.
The client is searching for a connection to an access point.
