SCALANCE W778-1 / W738-1
Operating Instructions, 03/2022, C79000-G8976-C450-07
73

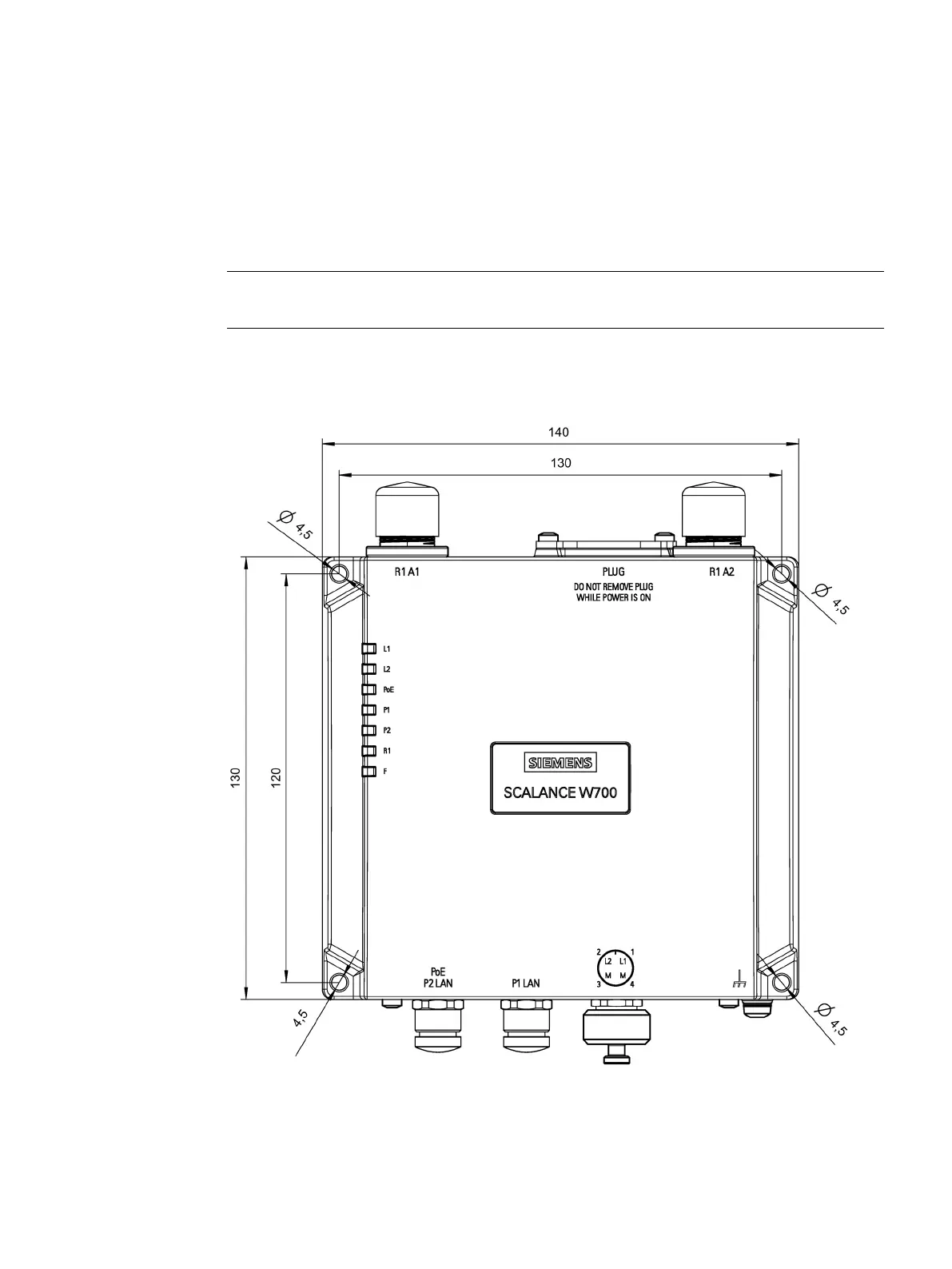

Dimension drawing
10
Note
Dimensions are specified in mm.
Front view
Width, height and dimensions for wall mounting
