Description
4.2 Description of the device
SCALANCE W788-x / W748-1
Operating Instructions, 06/2016, A5E03678333-10
15
W7x8x-x M12 - degree of protection IP65
Connecting connectors, N-Connect type female
• Devices with one IWLAN interface: 3 connectors on the top (covered in the figure).
• Devices with two IWLAN interfaces: 3 connectors on the top and 3 on the underside.
Connector for the supply voltage, type M12 (with cover)
Connector for Ethernet, M12 type (with cover)
Screw-down cover for the
- reset button and the
- PLUG compartment (not with W788C)
PLUG compartment (not with W788C)
Reset button (covered in the figure)
Grounding connector (thread M4) on the back of the device

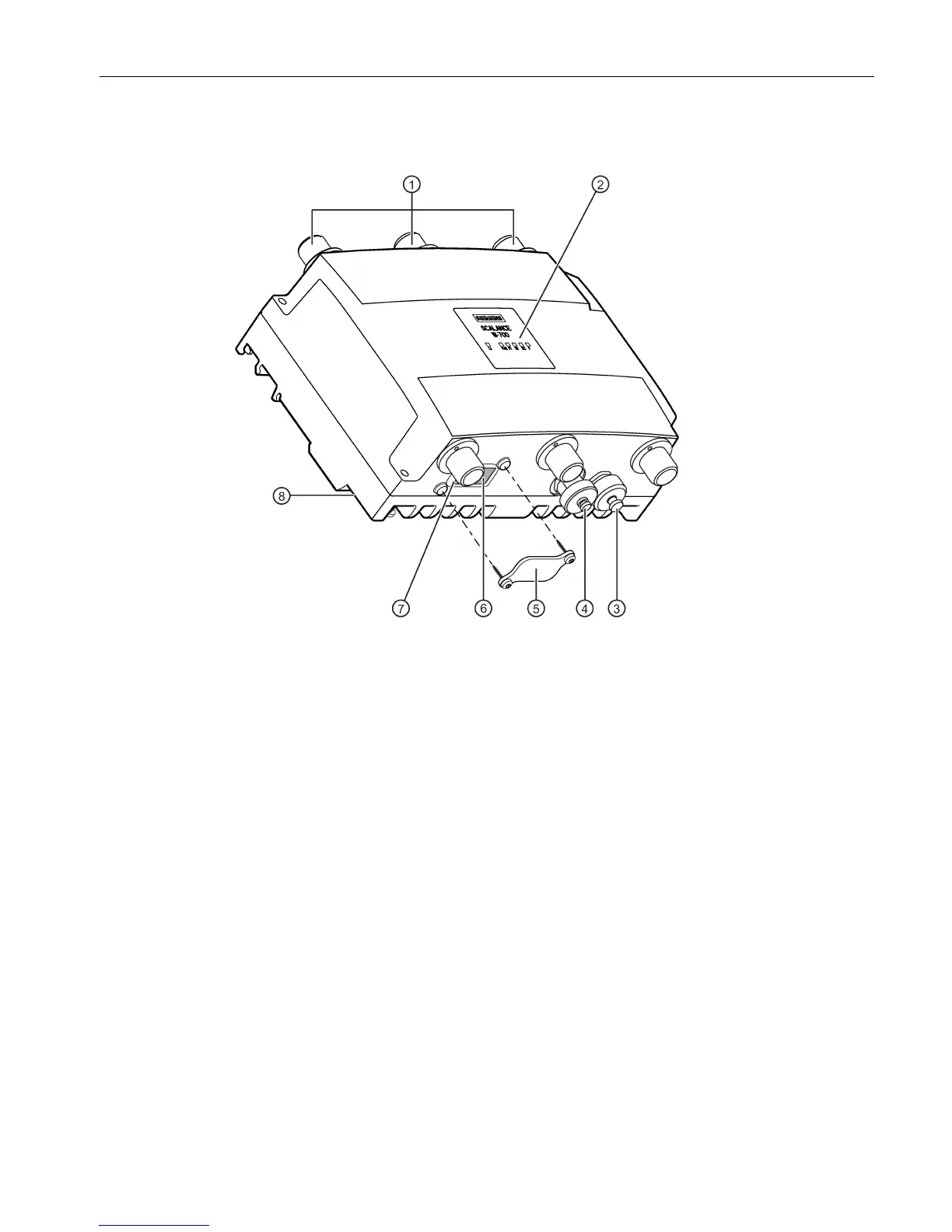

Figure 4-2 Device description of the M12 variant
