SCALANCE W788-x / W748-1
Operating Instructions, 06/2016, A5E03678333-10
49
Dimension drawings
8
The following dimensions are specified in mm.

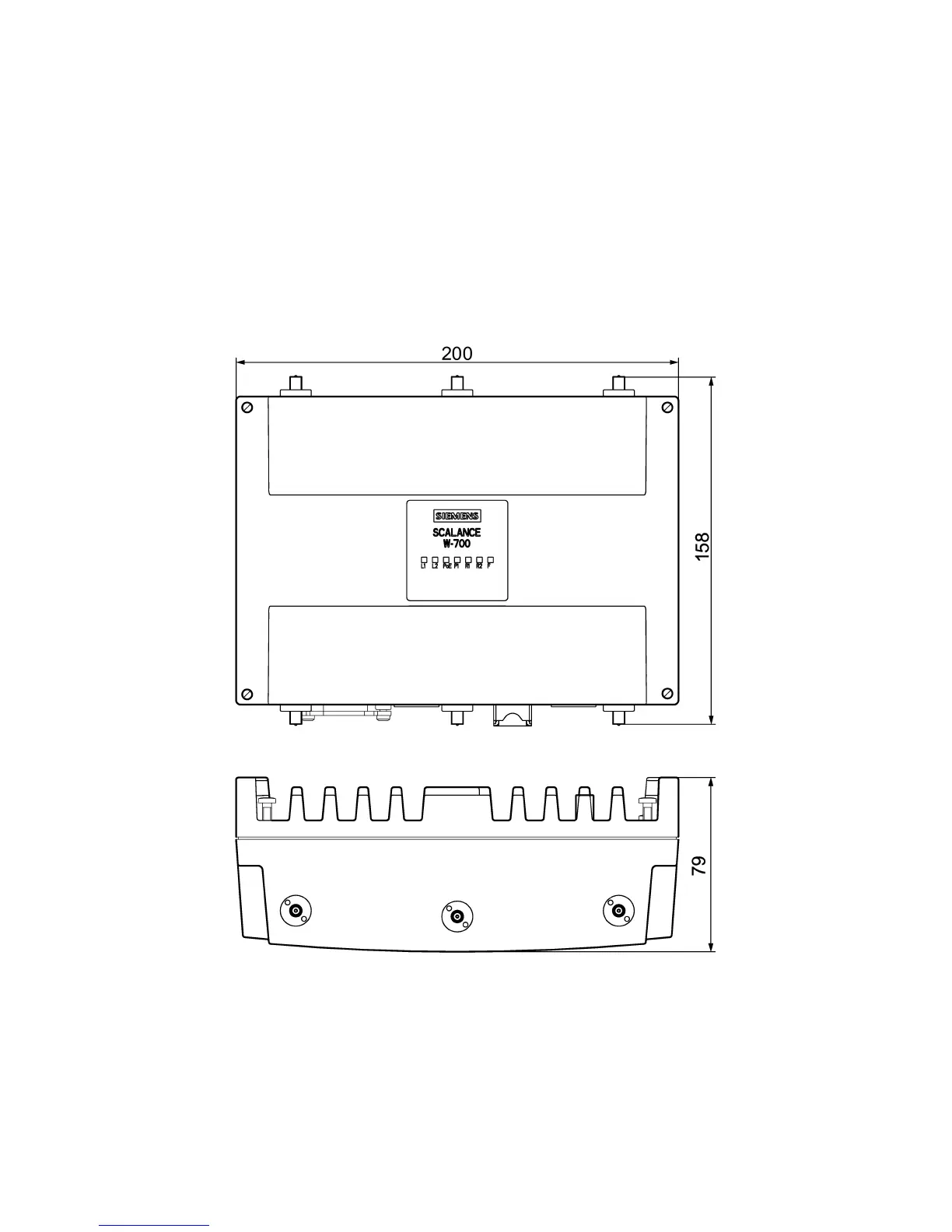

Dimension drawing of the SCALANCE W7x8-2 RJ45 (degree of protection IP30)
Figure 8-1 Front view RJ-45
Figure 8-2 View from above RJ-45
