Connecting up
6.3 Antenna connectors
SCALANCE W788-x / W748-1
Operating Instructions, 06/2016, A5E03678333-10
35
①
R1A1
②
R1A2
③
R1A3
④
R2A1
⑤
R2A2
⑥
R2A3

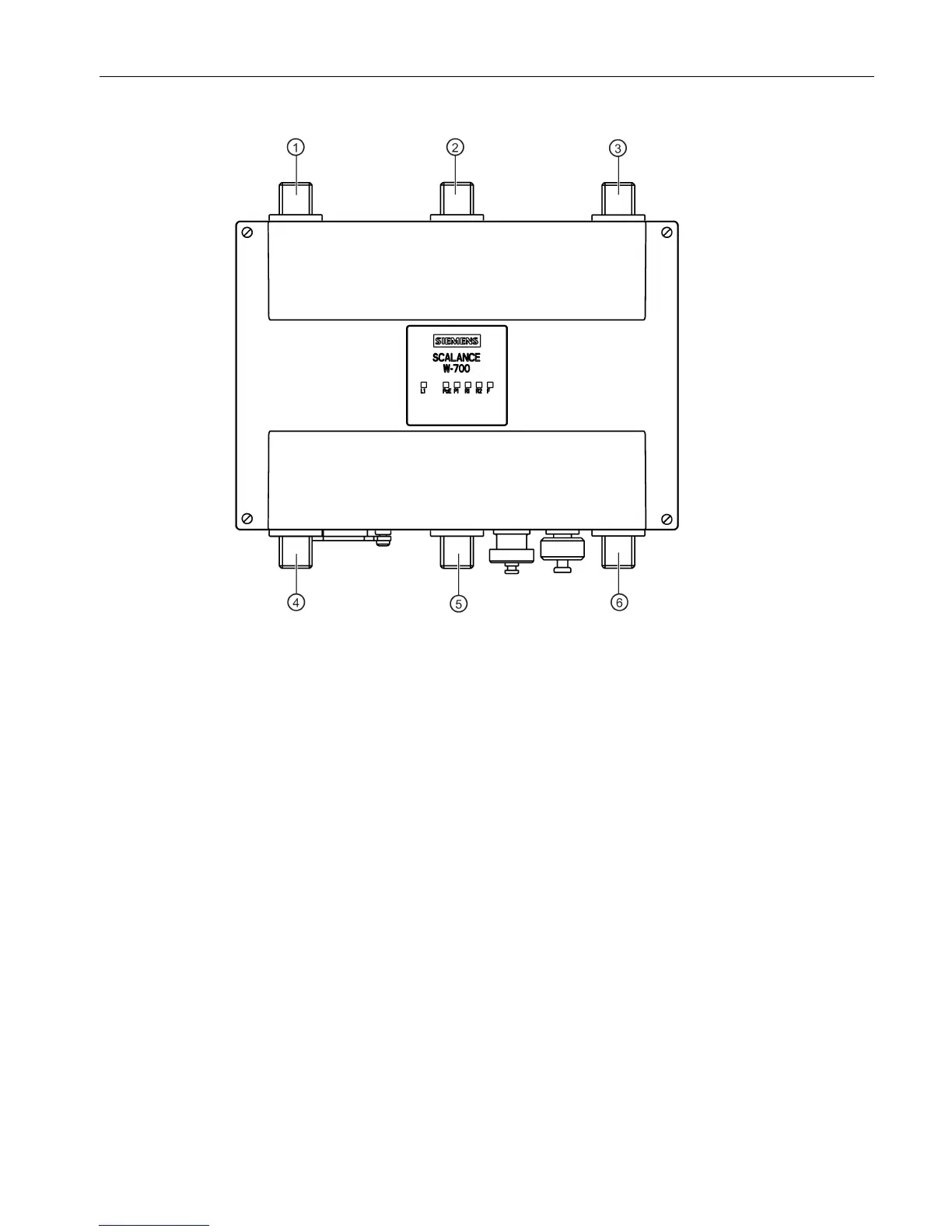

Figure 6-2 Antenna connector IP65
